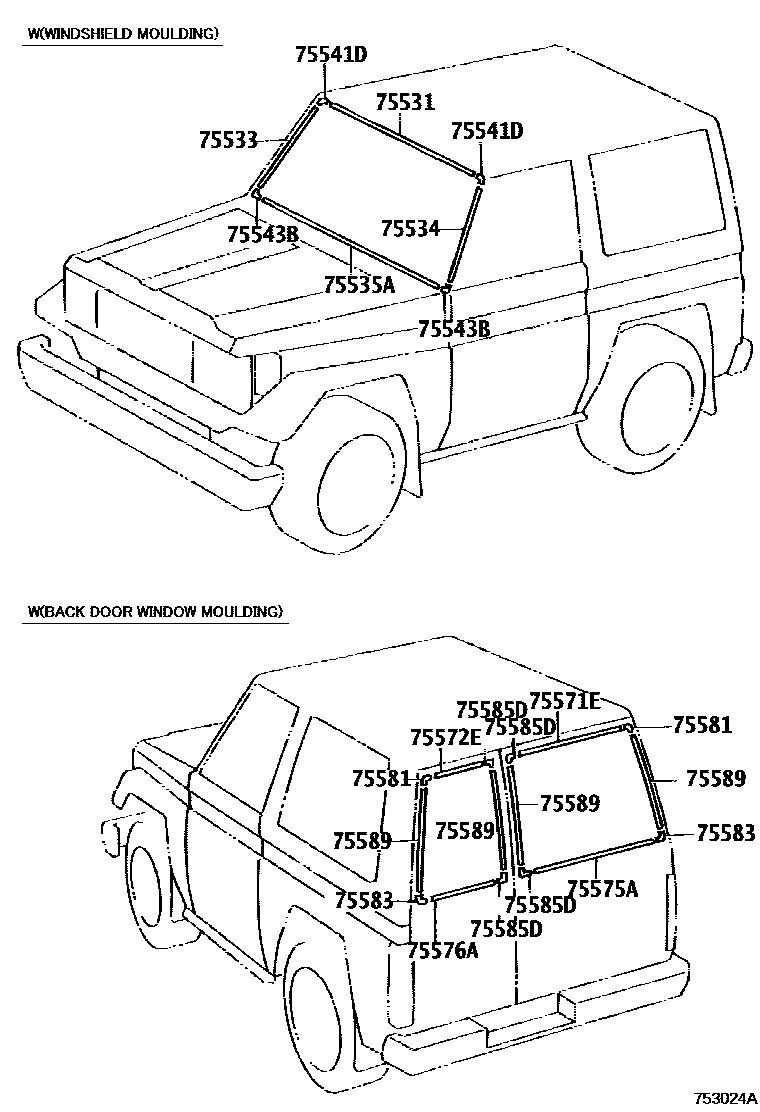

MOULDING

0001 1 0009 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75535-90K00iFZJ71,76,79,HZJ76,VDJ7#..LX¥1,490200701-200907

*P,L=1227

main75535-90K00iFZJ71,76,79,HZJ76,VDJ7#..LX¥1,490200701-200907

FRONT BUMPER-WITH(PLATING GARNISH),*P,L=1227

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-90K00iFZJ71,76,79,HZJ76,VDJ7#..LX¥1,000200701-200907

FRONT BUMPER-WITH(PLATING GARNISH)

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75533-90K00iFZJ71,76,79,HZJ76,VDJ7#..LX¥1,000200701-200907

FRONT BUMPER-WITH(PLATING GARNISH)

75535AMOULDING, WINDSHIELD, OUTSIDE LOWER

main75535-90K00iFZJ71,76,79,HZJ76,VDJ7#..LX¥1,490200701-200907

FRONT BUMPER-WITH(PLATING GARNISH)

75541DCOVER, WINDSHIELD MOULDING JOINT, UPPER

main75541-90K00iFZJ71,76,79,HZJ76,VDJ7#..LX¥380200701-200907

FRONT BUMPER-WITH(PLATING GARNISH)

75543BCOVER, WINDSHIELD MOULDING JOINT, LOWER

main75543-90K00iFZJ71,76,79,HZJ76,VDJ7#..LX¥380200701-200907

FRONT BUMPER-WITH(PLATING GARNISH)

75571EMOULDING, BACK WINDOW, OUTSIDE UPPER RH

main75575-90K00iFZJ71..LX¥450200701-202309

FRONT BUMPER-WITH(PLATING GARNISH)

main75575-90K00iVDJL78..LX¥450202309-202409

75572EMOULDING, BACK WINDOW, OUTSIDE UPPER LH

main75572-90K01iVDJL78..LX¥230202309-202409

main75572-90K01iFZJ71..LX¥230200701-202309

FRONT BUMPER-WITH(PLATING GARNISH)

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-90K00iFZJ71..LX¥450200701-202309

FRONT BUMPER-WITH(PLATING GARNISH)

main75575-90K00iVDJL78..LX¥450202309-202409

75576AMOULDING, BACK WINDOW, OUTSIDE LOWER LH

main75589-90K01iFZJ71..LX¥310200701-202309

FRONT BUMPER-WITH(PLATING GARNISH)

main75589-90K01iVDJL78..LX¥310202309-202409

75581COVER, BACK WINDOW MOULDING JOINT, UPPER

main75581-90K00iGRJ71,VDJ78,L78..LX¥220200701-202309

FRONT BUMPER-WITH(PLATING GARNISH)

main75581-90K00iVDJL78..LX¥220202309-202409

75583COVER, BACK WINDOW MOULDING JOINT, LOWER

main75583-90K00iGDJ71,GRJ71..LX¥220202309

main75583-90K00iHZJ71..HT;GRJ71..LHD..HT..STD¥220200701-202309

FRONT BUMPER-WITH(PLATING GARNISH)

main75583-90K01iHZJ78..GEN;GRJ78,VDJ78..LHD¥220200701-202309

FRONT BUMPER-WITH(PLATING GARNISH)

main75583-90K01iVDJL78..LX¥220202309-202409

75585DCOVER, BACK WINDOW MOULDING JOINT, CENTER

main75585-90K00iGDJ71,L78,GRJ71..LX¥220202309-202409

main75585-90K00iFZJ71..LX¥220200701-202309

FRONT BUMPER-WITH(PLATING GARNISH)

75589MOULDING, BACK WINDOW OUTSIDE, CENTER

main75573-90K01iVDJ78..LX¥310200701-202309

FRONT BUMPER-WITH(PLATING GARNISH),OUTER

main75573-90K01iHZJ78;GRJ78..LHD¥310200701-202409

OUTER

main75589-90K01iHZJ78;GRJ78..LHD¥310200701-202309

FRONT BUMPER-WITH(PLATING GARNISH)

main75589-90K01iGRJ71..LX¥310200701-202409

INNER

main75589-90K01iGRJ71..LX¥310200701-202309

FRONT BUMPER-WITH(PLATING GARNISH),INNER

14 parts on this diagram · 2 diagrams in section
