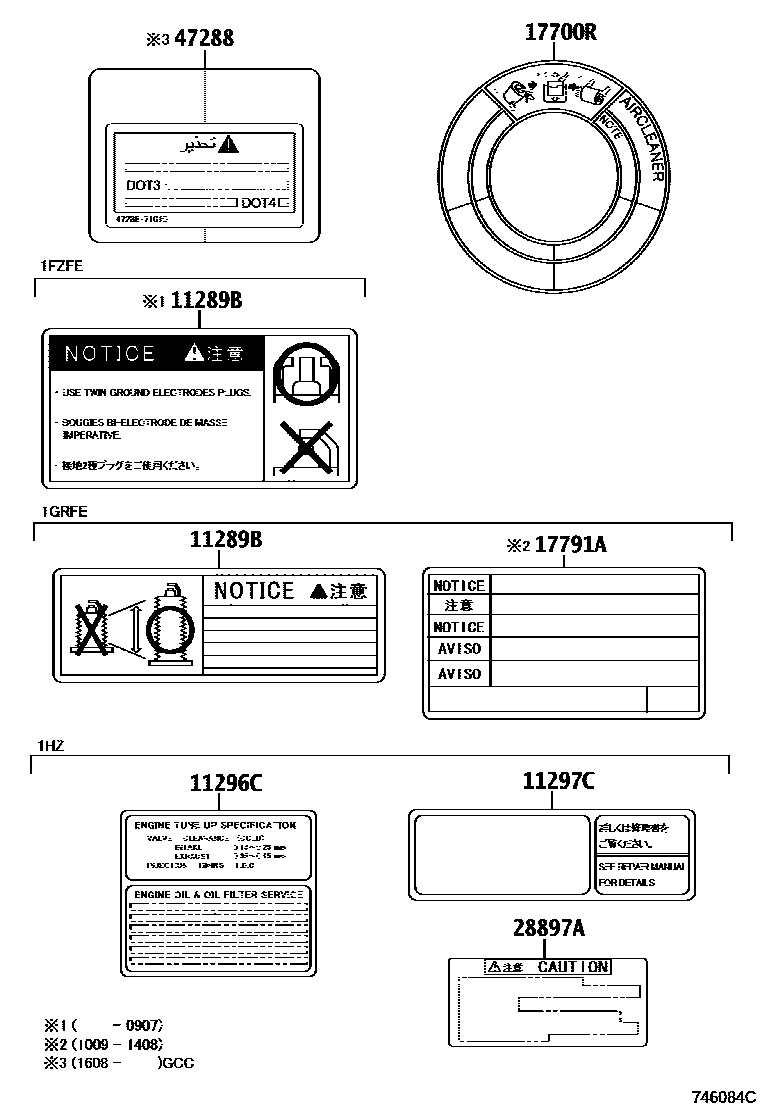

CAUTION PLATE

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM, EXTERIOR, INTERI0005 1ENGINE ROOM, EXTERIOR,INTERIO0006 1ENGINE ROOM, EXTERIOR, INTERI0007 1EXTERIOR,INTERIOR

11289BLABEL, SPARK PLUG NOTICE

main11289-31010i1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD200907-201911

sub11289-31011

main11289-31011i1GRFE..GRJ7#201912-202402

main11289-62020i1FZFE..FZJ7#200701-200907

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-17190i1HZ..HZJ7#200701-202309

11297CLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-17010i1HZ..HZJ7#200701-202309

17700RLABEL, AIR CLEANER INFORMATION

main90917-07109i1FZFE..FZJ7#200701-202309

17791ALABEL, MAINTENANCE INFORMATION

main17791-31030i1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD201009-201408

28897APLATE, BATTERY CAUTION

main28897-11040i1HZ..HZJ76,78,79..LHD..CBU202309

BATTERY-95D31R(64AH) X 95D31L(64AH)

main28897-54030i1HZ..HZJ76,78,79..LHD..GEN..CBU201608-202309

BATTERY-95D31R(64AH) X 95D31L(64AH)

main28897-54030i1HZ..HZJ76,78,79..LHD..GEN..CBU200701-201608

BATTERY-95D31R X 95D31L

47288LABEL, BRAKE FLUID NOTICE

main47288-71010iHZJ76,78,79..GCC201608-202409

7 parts on this diagram · 7 diagrams in section
