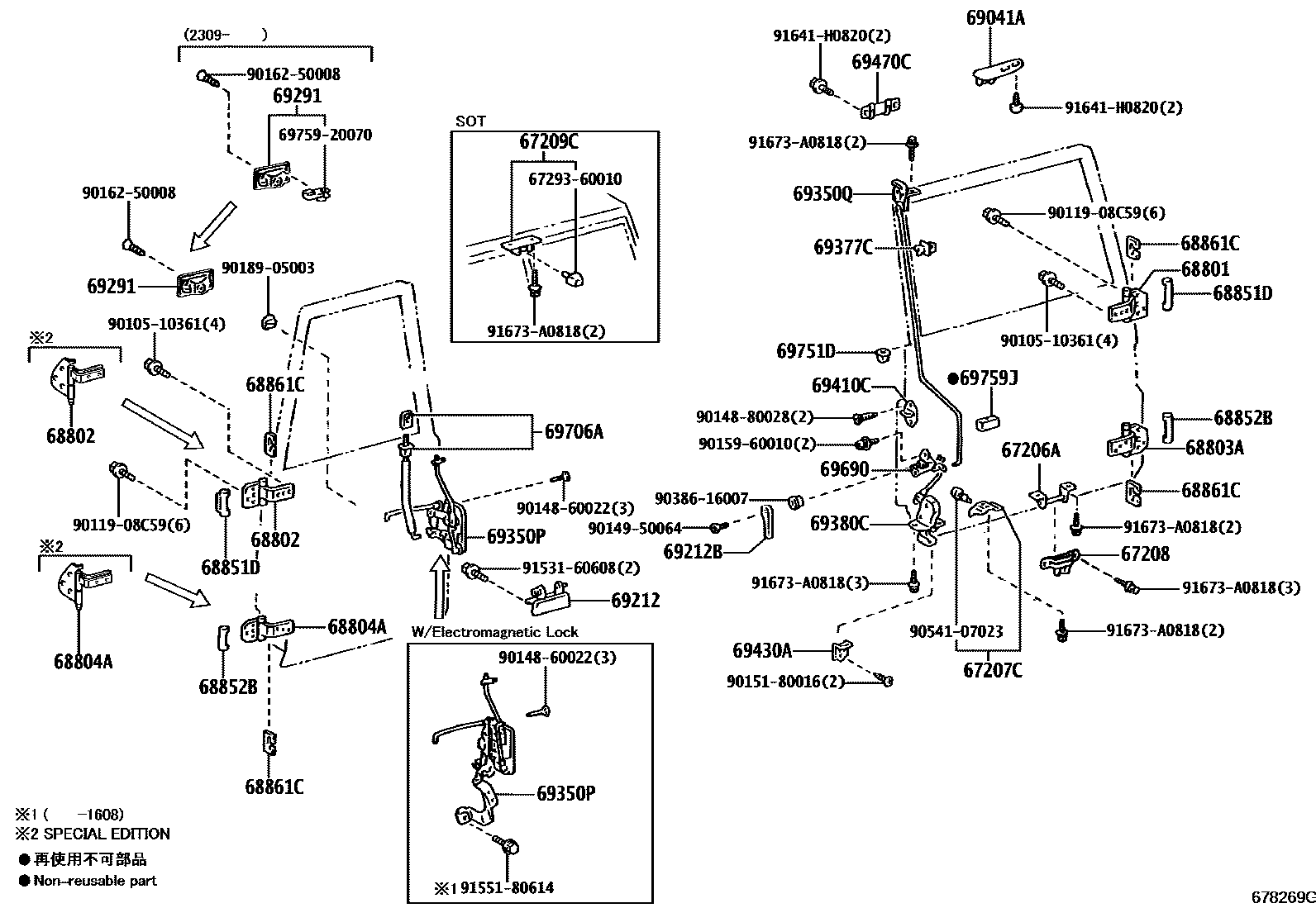

BACK DOOR LOCK & HINGE

67206ABRACKET SUB-ASSY, BACK DOOR STOPPER

main67206-90K00iVDJ76..GCC202309-202409

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR

67207CSTOPPER SUB-ASSY, BACK DOOR

main67207-90K00iHZJ76,78..GEN;GRJ71,76,78,HZJ71,VDJ76,78,L76,L78201608-202309

67208STOPPER SUB-ASSY, BACK DOOR, NO.2

main67208-60031iFZJ71,76,78200701-200907

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR,RH

main67025-60011iHZJ76..GEN;VDJ76..GCC;GRJ71,76,HZJ71201608-201807

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR,LH

main67025-60012iGDJ71,76,GRJ71,76,HZJ71,76..GCC,GEN202309

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR,LH

67209CSTOPPER SUB-ASSY, BACK DOOR, NO.3

main67209-60011iGRJ71,HZJ71..SOT202309

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-60060iHZJ76,78..GCC201608-201612

main68801-90K00iFZJ71,76,78,HZJ71,76,78,VDJ76,78200701-200907

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68802-60060iGRJ71,78..RHD200907-201208

main68802-90K00iFZJ71,76,78,HZJ71,76,78,VDJ76,78200701-200907

main68802-60050iHZJ71..SOT201902-201903

SPECIAL EDITION

main68802-60070iGDJ71,76,GRJ71,76,HZJ71,76..GCC,GEN202309

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR

main68802-90K01iFZJ71,76,HZJ71,76200701-200907

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR

68803AHINGE SUB-ASSY, BACK DOOR, LOWER RH

main68803-60040iGRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78200907-201608

main68803-90K00iFZJ71,76,78,HZJ71,76,78,VDJ76,78200701-200907

68804AHINGE SUB-ASSY, BACK DOOR, LOWER LH

main68804-60060iGDJ71,76,78,L76,L78,GRJ71,76,78,HZJ71,76,78202309

main68804-90K00iFZJ71,76,78,HZJ71,76,78,VDJ76,78200701-200907

main68804-60050iHZJ71..SOT201902-201903

SPECIAL EDITION

main68804-60070iHZJ71,76;GRJ71,76..LHD200907-201608

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR

main68804-90K01iFZJ71,76,HZJ71,76200701-200907

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR

68851DCOVER, BACK DOOR HINGE, UPPER

main68851-90K00×2iFZJ71,76,78200701-200907

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR,RH

main68851-90K01iGRJ71..RHD200701-201208

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR,LH

68852BCOVER, BACK DOOR HINGE, LOWER

main68852-90K00×2iFZJ71,76,78200701-200907

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR,RH

main68852-90K01iGRJ71..RHD200701-201208

AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR,LH

68861CPAD, BACK DOOR HINGE MALE, RH

main68861-90K00×4iHZJ76,78..GCC201608-201612

69041ASTOPPER SUB-ASSY, BACK DOOR, UPPER

main69041-60011iFZJ71,76,78200701-200907

69212HANDLE, BACK DOOR OUTSIDE, LH

main69220-32010iHZJ76,78..GCC201608-201612

69212BHANDLE, BACK DOOR INSIDE

main69212-60030-C0iGRJ71,78..RHD200701-201208

BLACK

69291HANDLE ASSY, BACK DOOR INSIDE

main69206-10050-B0iGDJ71,76,78,L76,L78,GRJ71,76,78,HZJ71,76,78202309

BLUE GRAY,TRIM1#

sub69206-10030

main69206-10050-E0iFZJ71..STD200701-200907

REAR SEAT-TRANSVERSE SEAT,LIGHT OAK,TRIM4#

sub69206-10030

main69209-90K00-B0iFZJ76..GCC200701-200907

BLUE GRAY,TRIM1#

main69209-90K00-E0iVDJ78;GRJ71,78,HZJ71,78..STD200701-201008

REAR SEAT-TRANSVERSE & PARALLEL SEAT, 7 PERSONS,LIGHT OAK,TRIM4#

main69206-WY030-C0iVDJ76..GCC202309-202409

*UGP(EXCEPT REAR BUMPER, SIDE STEP),BLACK,TRIM2#

main69206-WY030-E0iGRJ71..6FC;GDJ71,76,GRJ76..GCC202309

UP GRADE PACKAGE,MD.OAK,TRIM4#

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69110-60071supersedes 69350-60080iGDJL76,78..STD202309

POWER DOOR LOCK-WITH

main69350-60080iVDJ76200701-201608

POWER DOOR LOCK-WITHOUT

main69350-90K00iHZJ71..SOT201702-201704

SPECIAL EDITION

69350QLOCK ASSY, BACK DOOR, UPPER

main69350-60071iFZJ76200701-200907

main69350-60072iGRJ76,HZJ76,VDJ76201206-201408

main69350-60073iHZJ76..GEN;GRJ76,VDJ76,L76201608-202309

main69350-60170iGRJ71..RHD201206-201208

main69350-60171iGRJ71,HZJ71..HT201408-201608

main69350-60180iGRJ78..LHD;HZJ78,VDJ78201206-201408

main69350-60181iHZJ78..GEN;GRJ78,VDJ78,L78201608-202309

main69350-90K01iFZJ71200701-200907

main69350-90K02iGRJ78,HZJ78,VDJ78200701-201206

69377CSNAP, DOOR LOCK CONTROL ROD

main69377-90K00iHZJ76,78..GCC201608-201612

69380CLOCK ASSY, BACK DOOR, LOWER

main69380-90K00iGRJ71,78..RHD200701-201208

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-87001iFZJ71,76,78200701-200907

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-60050iGDJ71,76,78,L76,L78,GRJ71,76,78,HZJ71,76,78202309

69470CSTRIKER ASSY, BACK DOOR UPPER LOCK

main69470-60022iFZJ71,76,78200701-200907

main69470-60023iGRJ71,78..RHD201206-201208

main69470-60024iGRJ71,76,78,HZJ71,76,78,VDJ76,78..HT201408-201608

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-90K00iFZJ71,76,78200701-200907

69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL

main69706-90K00-B0iGRJ71,76,78,HZJ71,76,78,VDJ76,78200701-201208

BLUE GRAY,TRIM1#

main69706-90K00-C0iGDJL78..6FC;GDJ76..5F..GEN;GDJ71,76..LHD..6FC..GEN;GDJ78,GRJ71,76,78,HZJ71,78..HT..STD202309

BLACK,TRIM1#,2#

main69706-90K00-E0iHZJ71..SOT;FZJ71,76,78200701-200907

MD.OAK,TRIM4#

69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)

main69751-90K00iHZJ76,78..GEN;GRJ71,76,78,HZJ71,VDJ76,78,L76,L78..HT201608-202309

69759JSILENCER, DOOR LOCK LINK

main69759-90K00iGRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78200701-201608

6729360010CUSHION, BACK DOOR LOWER STOPPER

main67293-60010

6975920070SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20070

9010510361

main90105-10361

9011908C59

main90119-08C59

9014860022

main90148-60022

9014880028

main90148-80028

9014950064

main90149-50064

9015180016

main90151-80016

9015960010

main90159-60010

9016250008

main90162-50008

9018905003

main90189-05003

9038616007

main90386-16007

9054107023

main90541-07023

9153160608

main91531-60608

9155180614

main91551-80614

91641H0820

main91641-H0820

91673A0818

main91673-A0818

43 parts on this diagram · 1 diagram in section
