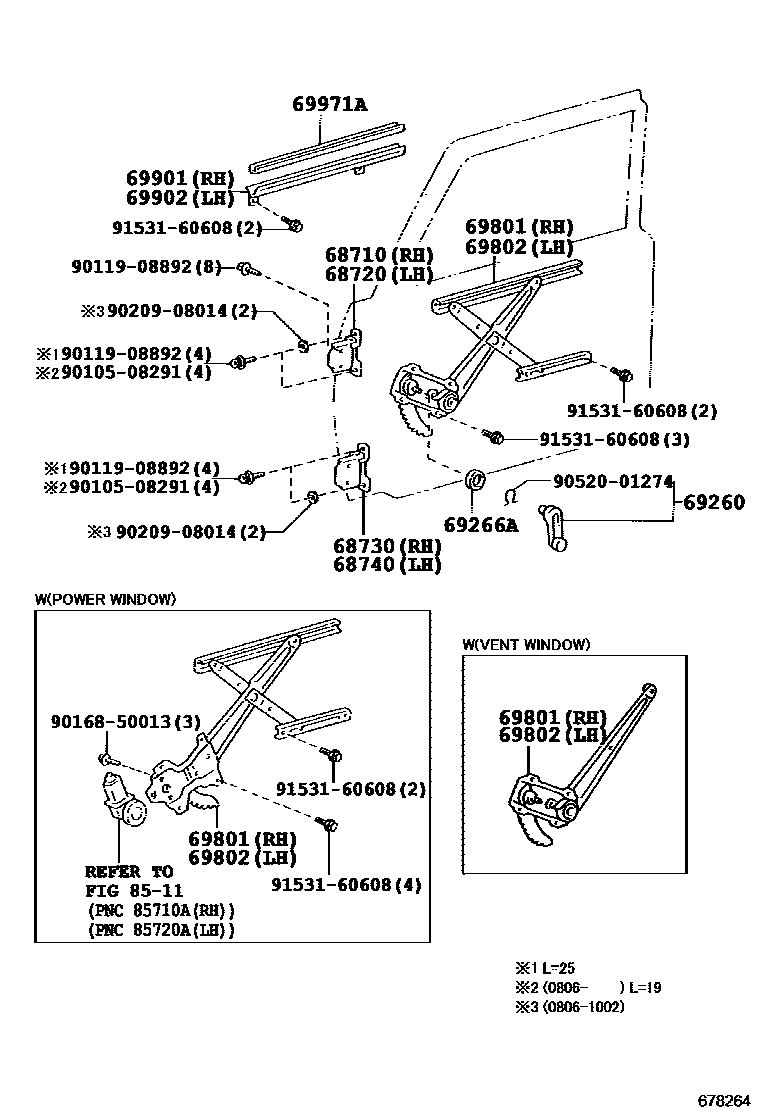

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-60040×2iVDJL78..LX202309-202409

POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&REMORT&PAINTED)

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-60040iFZJ7#200701-200907

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-60020iFZJ7#200701-200907

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-60020iFZJ7#200701-200907

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-B7×2supersedes 69260-10040-B7iFZJ76;FZJ71..GCC;FZJ79..RHD;FZJ71,79..LX200701-200907

BLUE GRAY,TRIM1#

sub69260-16010

main69260-10040-E4×2supersedes 69260-10040-E4iVDJ79..DCB;GRJ76,78..LHD;GRJ79..STD..CBU;GRJ71..LHD..HT..STD;HZJ7#..(DCB,HT,PIC)..CBU200701-201608

POWER WINDOW-WITHOUT,LIGHT OAK,TRIM4#

sub69260-16010

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010×2supersedes 69266-22010iFZJ76;FZJ71..GCC;FZJ79..RHD;FZJ71,79..LX200701-200907

H PACKAGE

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60020iGRJ79..LHD..DCB;GRJ79,HZJ79..RHD;HZJ79..LHD..DCB..GEN;GRJ76,HZJ76,VDJ79..DCB,HT;GRJ71,HZJ79..(DCB,HT,PIC)..GCC200701-201410

POWER WINDOW-WITH

main69801-60100supersedes 69810-60330iVDJ79..RHD..STD202309-202508

POWER WINDOW-WITH

main69810-60090supersedes 69810-90K01iHZJ76;GRJ76,78..LHD;GRJ71..LHD..HT..STD;GRJ79,HZJ71,78,79,VDJ78,79..(DCB,HT,PIC)..STD200701-201410

POWER WINDOW-WITHOUT

main69810-60330supersedes 69810-60340iVDJ76,L76..RHD201608-202309

POWER WINDOW-WITHOUT

main69801-60030iGRJ79..PIC..STD..GCC;GRJ79..PIC..GEN..CBU;GDJ78,79,L78,GRJ71,78,HZJ71,78,79..(HT,PIC)..STD..CBU202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60020iHZJ78..LHD;GRJ79..PIC..STD..GCC;GRJ71,HZJ71..HT..STD..GEN201208-201410

POWER WINDOW-WITH

main69802-60100supersedes 69820-60300iGRJ79..STD..GCC;GRJ79,HZJ79..GEN..CBU;GDJ78,79,L7#,GRJ71,76,78,HZJ71,76,78..(DCB,HT,PIC)..STD202309

POWER WINDOW-WITH

main69820-60090supersedes 69820-90K01iFZJ7#200701-200907

main69820-60300supersedes 69820-60310iGRJ76,78,HZJ7#..DCB,HT,PIC;GRJ71,79,VDJ78,79..(DCB,HT,PIC)..STD201411-201608

POWER WINDOW-WITHOUT

main69802-60030iGRJ79..PIC..STD..GCC;GRJ79..PIC..GEN..CBU;GDJ78,79,L78,GRJ71,78,HZJ71,78,79..(HT,PIC)..STD..CBU202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-60020iGDJ76,79,L76,L79,GRJ76,79,HZJ76,79..DCB,HT202309

main69901-90K00supersedes 69901-90K01iGDJ71,78,79,L78,L79,GRJ71,78,79,HZJ71,78,79..HT,PIC202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-60020iVDJ76,L76;VDJ79..DCB..GCC;VDJL79..DCB..STD202309-202409

main69902-90K01supersedes 69902-90K00iVDJL79..PIC..STD;VDJ78,79,L78..(HT,PIC)..(ARL,GCC)..CBU202309-202409

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-60020×2iHZJ76,79..(DCB,HT)..GCC201608-201612

main69971-90K00×2iHZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79,L78,L79..(HT,PIC,SOT)..(CBU,IV)201608-202309

8511

9010508291

main90105-08291

9011908892

main90119-08892

9016850013

main90168-50013

9020908014

main90209-08014

9052001274

main90520-01274

9153160608

main91531-60608

18 parts on this diagram · 2 diagrams in section
