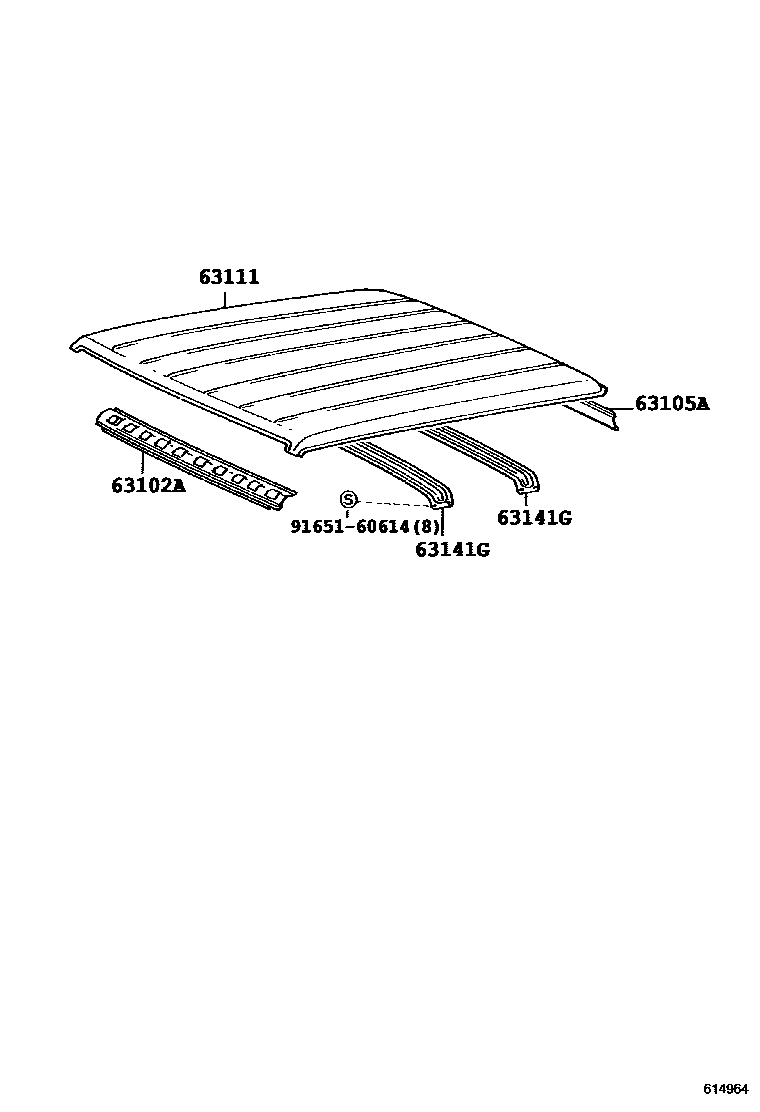

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0010 1 0011 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60150iVDJ79,L79..PIC..IV201608-202309

main63102-60160iHZJ76,78,79..GCC201608-201612

main63102-60280iGRJ79,HZJ79;GDJ78,L78..6FC;GDJ79..PIC..CBU;GDJ71,76,79,L76,L79,GRJ71,76,78,HZJ71,76,78..DCB,HT202309

main63102-60290iVDJ79..STD..IV;VDJL79..PIC..LX202309-202508

main63102-60300iGDJ78,L78..5F202410

main63102-90K02iFZJ7#,HZJ7#,VDJ7#..HT,PIC200701-200907

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60200iFZJ71,HZJ71..HT200701-200906

main63105-60201iGRJ71..RHD200907-201208

main63105-60202iHZJ76..GCC201608-201612

main63105-60210iFZJ78,HZJ78,VDJ78200701-200906

sub90333-20001

main63105-60211iGRJ78..RHD200907-201208

main63105-60212iHZJ78..GCC201608-201612

main63105-60220iFZJ76,HZJ76200701-200907

main63105-60270iVDJ76200701-200906

main63105-60271iVDJ76200907-201408

main63105-60272iGDJ76,L76..ARL202309

63111PANEL, ROOF

main63111-60140supersedes 63111-90K00iFZJ71..GCC200701-200907

HIGH MOUNT STOP LAMP-WITH

main63111-60151supersedes 63111-60290iFZJ78,HZJ78200701-200907

ROOF RACK-WITH&HIGH MOUNT STOP LAMP-WITH

main63111-60161supersedes 63111-60160iFZJ76,HZJ76..GEN200701-200907

HIGH MOUNT STOP LAMP-WITH

main63111-60470iFZJ79,HZJ79,VDJ79200701-200907

main63111-60680supersedes 63111-60730iGRJ71..HT..GCC200907-201608

HIGH MOUNT STOP LAMP-WITH

main63111-60700supersedes 63111-60760iHZJ78..GEN201608-202309

AIR CLEANER-SQUARE & SCHNORKEL&HIGH MOUNT STOP LAMP-WITH

main63111-60710supersedes 63111-60720iGRJ76,HZJ76..GEN200907-201608

HIGH MOUNT STOP LAMP-WITH

main63111-60740iHZJ79..PIC..GCC201608-201612

main63111-60790iHZJ79..DCB..GCC201608-201612

main63111-60690iHZJ78200907-201608

ROOF RACK-WITH&HIGH MOUNT STOP LAMP-WITH

main63111-60750supersedes 63111-60760iHZJ78..GCC201608-201612

AIR CLEANER-CYCRON & SCHNORKEL&ROOF RACK-WITH

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60020×2iVDJ76,L76202309-202409

main63141-60070iVDJ79..PIC..GCC202309-202409

main63141-60120×2iGRJ71..RHD200907-201208

main63141-60130iVDJ79..STD..IV;VDJL79..PIC..LX202309-202508

main63141-90K00×2iFZJ71,HZJ71..HT200701-200907

9165160614

main91651-60614

5 parts on this diagram · 9 diagrams in section
