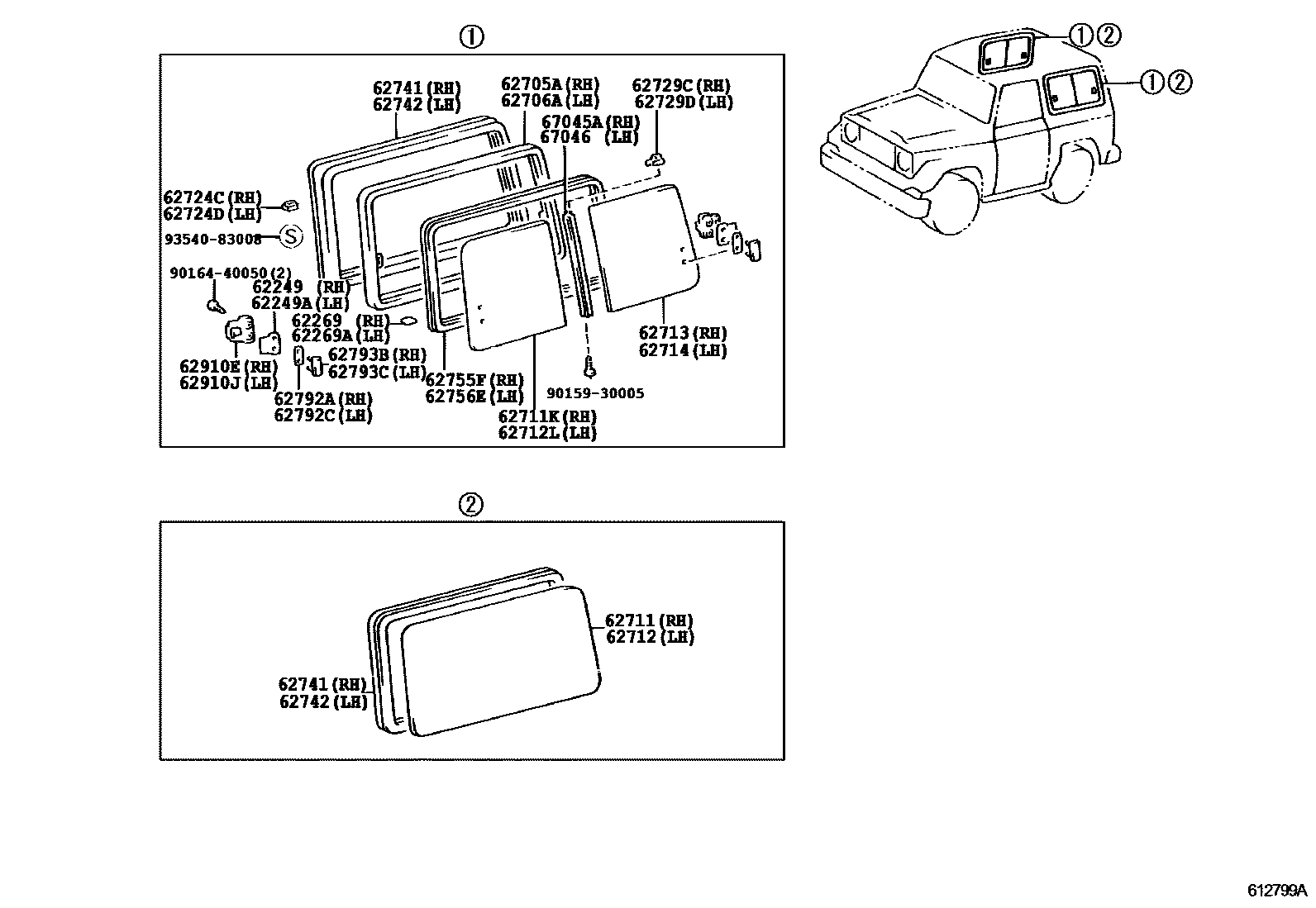

SIDE WINDOW

0001 1 0002 1 0003 1

62249PLATE, SIDE WINDOW, RH

main62249-95700iGRJ78,HZJ78,VDJ78..STD200701-202409

REAR QUARTER GLASS-SLIDE

main62249-95700iFZJ71..LX200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62249-95700iGRJ71..LX200701-201608

62249APLATE, SIDE WINDOW, LH

main62249-95700iFZJ71..LX200701-202409

REAR QUARTER GLASS-SLIDE

main62249-95700iFZJ71..LX200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62249-95700iGRJ71,HZJ71..HT..STD201208-201608

62269FILM, SIDE WINDOW FRAME, RH

main62269-90K01iFZJ78200701-202409

REAR QUARTER GLASS-SLIDE

main62269-90K01iFZJ78200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62269-90K01iGRJ71..LX200701-201608

62269AFILM, SIDE WINDOW FRAME, LH

main62269-90K01iFZJ78200701-202409

REAR QUARTER GLASS-SLIDE

main62269-90K01iFZJ78200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62269-90K01iGRJ71,HZJ71..HT..STD201208-201608

62705AFRAME SUB-ASSY, QUARTER WINDOW, RH

main62705-60032iFZJ71..STD200701-201208

REAR QUARTER GLASS-SLIDE

main62705-60032iGDJ71,GRJ71,HZJ71..HT200701-202309

main62705-60050iGRJ78..RHD200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62705-60050iGRJ78..RHD200701-202409

REAR QUARTER GLASS-SLIDE

62706AFRAME SUB-ASSY, QUARTER WINDOW, LH

main62706-60022iGDJ71,GRJ71,HZJ71..HT200701-202309

main62706-60022iGRJ71,HZJ71..HT..STD200701-201208

REAR QUARTER GLASS-SLIDE

main62706-60050iGDJ78,GRJ78,HZJ78..GEN200701-202409

REAR QUARTER GLASS-SLIDE

main62706-60050iFZJ78200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

62711GLASS, QUARTER WINDOW, RH

main62710-60660iHZJ76..GEN;GRJ76,VDJ76,L76201608-202409

main62710-60660iFZJ76200701-201608

*TEM,T=4.0,GREEN

main62711-60370iFZJ71..STD200701-201208

*TEM,T=4.0,GREEN

main62711-60420iGDJ78,L78,GRJ78,HZJ78..STD201608-202409

main62711-60420iGRJ78..RHD200701-201608

*TEM,T=3.5,GREEN

62711KGLASS, QUARTER WINDOW, FRONT RH

main62711-60380iFZJ71..LX200701-201608

*TEM,T=4.0,GREEN

main62711-60380iFZJ71..LX200701-201208

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE

main62711-60380iGDJ71,GRJ71,HZJ71..HT201608-202309

main62711-60430iVDJ78,L78..LX201608-202409

REAR QUARTER GLASS-SLIDE

main62711-60430iFZJ78200701-201608

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE

main62711-60430iVDJ78..LX200701-201608

*TEM,T=4.0,GREEN

main62711-60450iFZJ78200701-201608

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62711-60450iGRJ78,HZJ78..GEN201608-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

62712GLASS, QUARTER WINDOW, LH

main62712-60300iGRJ71,HZJ71..HT..STD200701-201208

*TEM,T=3.5,GREEN

main62712-60350iHZJ78..GCC201608-202409

main62712-60350iFZJ78200701-201608

*TEM,T=3.5,GREEN

main62720-60560iHZJ76..GCC201608-202409

main62720-60560iFZJ76200701-201608

*TEM,T=4.0,GREEN

62712LGLASS, QUARTER WINDOW, FRONT LH

main62712-60310iGRJ71..LX200701-201608

*TEM,T=4.0,GREEN

main62712-60310iFZJ71..LX200701-201208

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE

main62712-60310iGDJ71,GRJ71,HZJ71..HT201608-202309

main62712-60360iVDJ78,L78..LX201608-202409

REAR QUARTER GLASS-SLIDE

main62712-60360iFZJ78200701-201608

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE

main62712-60360iVDJ78..LX200701-201608

*TEM,T=4.0,GREEN

main62712-60380iHZJ78..GCC201608-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62712-60380iHZJ78;GRJ78..LHD200701-201608

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE & FROSTED GLASS

62713GLASS, QUARTER WINDOW, REAR RH

main62713-60130iFZJ71..STD200701-201208

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE

main62713-60130iFZJ71..LX200701-201608

*TEM,T=4.0,GREEN

main62713-60130iGRJ71,HZJ71..HT201608-202309

main62713-60170iGRJ78..LHD;HZJ78,VDJ78..STD200701-201608

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE

main62713-60170iVDJ78..LX200701-201608

*TEM,T=4.0,GREEN

main62713-60170iVDJ78,L78..STD201608-202409

REAR QUARTER GLASS-SLIDE

main62713-60180iHZJ78;GRJ78..LHD200701-201608

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62713-60180iGRJ78,HZJ78..GEN201608-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

62714GLASS, QUARTER WINDOW, REAR LH

main62714-60120iFZJ71..STD200701-201208

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE

main62714-60120iGRJ71,HZJ71..HT201608-202309

main62714-60120iFZJ71..LX200701-201608

*TEM,T=4.0,GREEN

main62714-60160iVDJL78..LX201608-202409

REAR QUARTER GLASS-SLIDE

main62714-60160iFZJ78200701-201608

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE

main62714-60160iVDJ78..LX200701-201608

*TEM,T=4.0,GREEN

main62714-60170iHZJ78;GRJ78..LHD200701-201608

*TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62714-60170iGRJ78,HZJ78..GEN201608-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

62724CSTOP, SIDE FRONT WINDOW GLASS, RH

main62724-95J05iFZJ71,78..STD200701-202409

REAR QUARTER GLASS-SLIDE

main62724-95J05iFZJ71,78..STD200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62724-95J05iGRJ71..LX200701-201608

62724DSTOP, SIDE FRONT WINDOW GLASS, LH

main62724-95J05iVDJL78..LX200701-202409

REAR QUARTER GLASS-SLIDE

main62724-95J05iFZJ71..LX200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62724-95J05iGRJ71,HZJ71..HT..STD201208-201608

62729CPAD, REAR WINDOW CENTER SASH, RH

main62729-90K00iGRJ71..LX200701-202309

main62729-90K00iGRJ71,HZJ71..HT..STD200701-201208

REAR QUARTER GLASS-SLIDE

main62729-90K01iGDJ78,L78,GRJ78,HZJ78..STD200701-202409

REAR QUARTER GLASS-SLIDE

main62729-90K01iGDJ78,L78,GRJ78,HZJ78..STD200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

62729DPAD, REAR WINDOW CENTER SASH, LH

main62729-90K00iFZJ71..LX200701-201208

REAR QUARTER GLASS-SLIDE

main62729-90K00iGDJ71,GRJ71,HZJ71..HT200701-202309

main62729-90K01iGDJ78,L78,GRJ78,HZJ78..STD200701-202409

REAR QUARTER GLASS-SLIDE

main62729-90K01iFZJ78200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-60060iHZJ76..GEN;GRJ76,VDJ76,L76200701-202409

main62741-60100iGRJ71,HZJ71..HT..STD200701-202309

main62741-60100iFZJ71..STD200701-201208

REAR QUARTER GLASS-SLIDE

main62741-90K00iFZJ71..STD200701-201208

main62741-90K03iGRJ78..LHD;HZJ78,VDJ78..STD200701-202409

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-60060iHZJ76..GEN;GRJ76,VDJ76,L76200701-202409

main62741-90K03iHZJ78..GEN;GRJ78,VDJ78,L78..STD200701-202409

main62742-60090iGRJ71,HZJ71..HT200701-202309

main62742-60090iFZJ71..LX200701-201208

REAR QUARTER GLASS-SLIDE

main62742-90K00iGRJ71,HZJ71..HT..STD200701-201208

62755FRUN, QUARTER WINDOW, RH

main62755-60030iHZJ78..GCC200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62755-60030iFZJ78200701-202409

REAR QUARTER GLASS-SLIDE

main62755-60050iFZJ71..STD200701-201208

REAR QUARTER GLASS-SLIDE

main62755-60050iGRJ71..LX200701-202309

62756ERUN, QUARTER WINDOW, LH

main62756-60030iGRJ78..RHD200701-202409

REAR QUARTER GLASS-SLIDE

main62756-60030iFZJ78200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62756-60050iGRJ71,HZJ71..HT..STD200701-202309

main62756-60050iGRJ71,HZJ71..HT..STD200701-201208

REAR QUARTER GLASS-SLIDE

62792APACKING, SIDE WINDOW LOCK, RH

main62792-95A00iGDJ78,L78,GRJ78,HZJ78..STD200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62792-95A00iFZJ71..LX200701-202409

REAR QUARTER GLASS-SLIDE

main62792-95A00iGRJ71..LX200701-201608

62792CPACKING, SIDE WINDOW LOCK, LH

main62792-95A00iGRJ78..RHD;GRJ71,HZJ71..HT..STD200701-202409

REAR QUARTER GLASS-SLIDE

main62792-95A00iGRJ78..RHD200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62792-95A00iGRJ71,HZJ71..HT..STD201208-201608

62793BRETAINER, SIDE WINDOW LOCK, RH

main62793-95704iVDJL78..LX200701-202409

REAR QUARTER GLASS-SLIDE

main62793-95704iGDJ71,L78..LX;GRJ71,HZJ71..HT200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62793-95704iGRJ71..LX200701-201608

62793CRETAINER, SIDE WINDOW LOCK, LH

main62793-95704iGDJ78,GRJ78,HZJ78..GEN200701-202409

REAR QUARTER GLASS-SLIDE

main62793-95704iFZJ71..LX200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main62793-95704iGRJ71,HZJ71..HT..STD201208-201608

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-60010iFZJ76200701-202409

62910ELOCK ASSY, SIDE WINDOW

main62910-60040iFZJ71..LX200701-202409

FRONT

main62910-60040iFZJ71..LX200701-202409

REAR QUARTER GLASS-SLIDE,FRONT

main62910-60040iFZJ71..LX200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS,FRONT

main62920-60010iGRJ78..LHD;HZJ78,VDJ78..STD200701-202409

REAR QUARTER GLASS-SLIDE,REAR

main62920-60010iFZJ71..LX200701-202409

REAR

main62920-60010iFZJ71..LX200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS,REAR

62910JLOCK ASSY, SIDE WINDOW, LH

main62910-60040iHZJ78..GCC200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS,FRONT

main62910-60040iFZJ71,78..STD200701-202409

REAR QUARTER GLASS-SLIDE,FRONT

main62910-60040iFZJ78200701-202409

FRONT

main62920-60010iVDJ78,L78..LX;GRJ71,HZJ71..HT200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS,REAR

main62920-60010iFZJ71..LX200701-202409

REAR

main62920-60010iFZJ71..LX200701-202409

REAR QUARTER GLASS-SLIDE,REAR

67045AFRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER RH

main67045-90K00iFZJ71..STD200701-201208

REAR QUARTER GLASS-SLIDE

main67045-90K00iGDJ71,GRJ71,HZJ71..HT200701-202309

main67045-90K02iHZJ78;GRJ78..LHD200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

main67045-90K02iVDJ78..LX200701-202409

REAR QUARTER GLASS-SLIDE

67046FRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER LH

main67046-90K00iFZJ71..LX200701-201208

REAR QUARTER GLASS-SLIDE

main67046-90K00iGRJ71,HZJ71..HT..STD200701-202309

main67046-90K02iGRJ78..RHD200701-202409

REAR QUARTER GLASS-SLIDE

main67046-90K02iGRJ78..RHD200701-202309

REAR QUARTER GLASS-SLIDE & FROSTED GLASS

9015930005

main90159-30005

9016440050

main90164-40050

9354083008

main93540-83008

32 parts on this diagram · 3 diagrams in section
