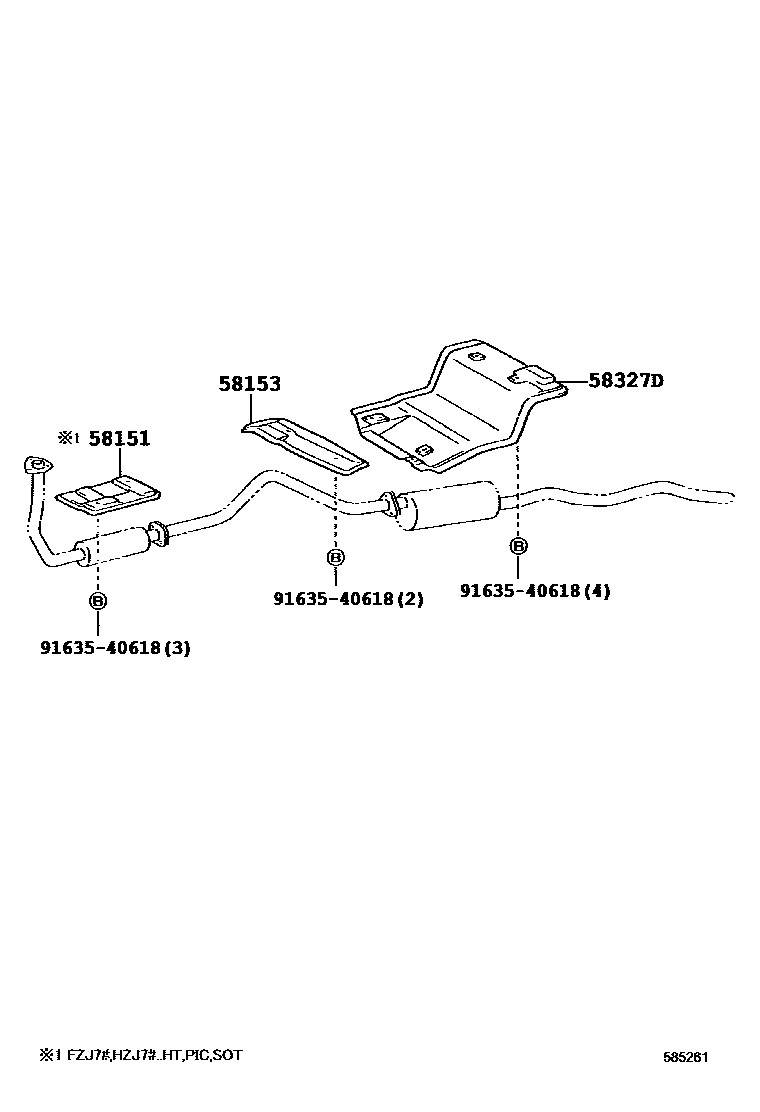

FLOOR INSULATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0013 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1DIESEL EURO5 W(ON BOARD DIAGN0022 1DIESEL EURO5 W(ON BOARD DIAGN

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-60030iVDJ7#..GCC,GEN201610-202309

main58151-60040iHZJ7#200701-201608

main58151-60050iFZJ7#200701-200907

main58151-60140iVDJ79..IV;VDJL79..LX202309-202508

main58151-60200iGDJ7#,L7#,GRJ7#202309-202403

main58151-60201iGDJ7#,L7#,GRJ7#202404

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-90K01iHZJ71,76,79..DCB,HT,SOT200701-201608

main58042-60020iFZJ71,76..GCC200701-200907

SAUDI ARABIA SPEC

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-60030iFZJ71,76200701-200907

main58327-60110iGDJL78202309-202509

main58327-60120iHZJ79..DCB..GEN;GRJ79,VDJ79,L79..DCB201608-202309

main58327-60150iGDJ71,76,GRJ71,76,HZJ71,76202309

9163540618

main91635-40618

4 parts on this diagram · 19 diagrams in section
