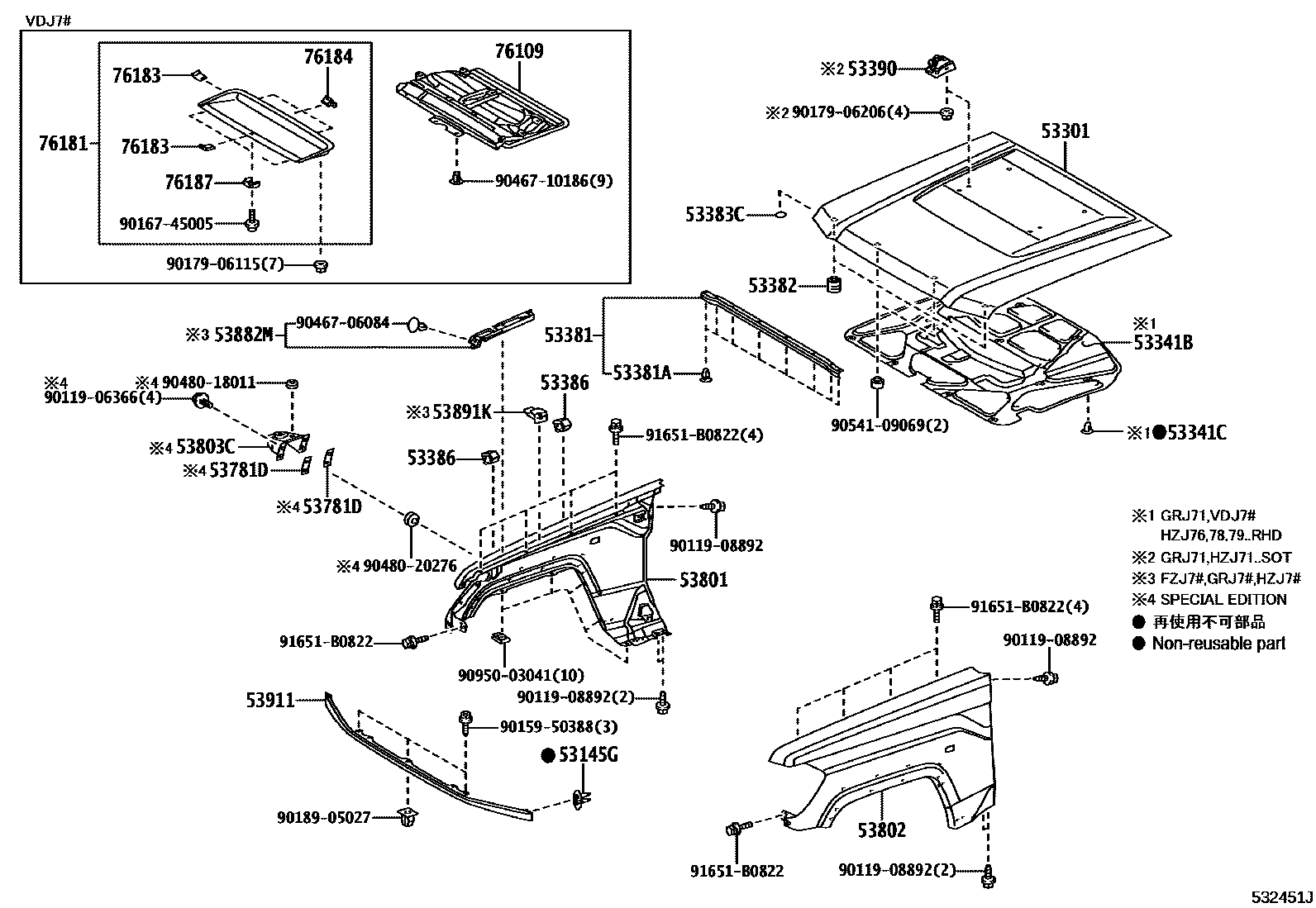

HOOD & FRONT FENDER
53145GCLIP, RADIATOR GRILLE
53301HOOD SUB-ASSY
MODEL SYMBOL MARK-WITH
FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)
FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)
FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)
FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)
FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)
53341BINSULATOR, HOOD
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
53341CCLIP(FOR HOOD INSULATOR)
SOUTH AFRICA SPEC
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382BUMPER, HOOD, FRONT
53383CSEAL, HOOD TO COWL TOP
53386BUMPER, HOOD, REAR
53390CRADLE ASSY, WINDSHIELD REST
FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)
FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)
53781DPACKING, FRONT FENDER APRON TRIM
SPECIAL EDITION
53801FENDER SUB-ASSY, FRONT RH
SOUTH AFRICA SPEC
AIR CLEANER-CYCRON & SCHNORKEL
AIR CLEANER-SQUARE & SCHNORKEL
GHANA SPEC&AIR CLEANER-SQUARE & SCHNORKEL&TIRE & DISK WHEEL-265/70R16C 7J ALUMINUMWITHOUT(TUBE)
AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 2SPEAKER
SOUTH AFRICA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM & 1SPEAKER
SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16LT 7JJ ALUMINUM WITHOUT(TUBE)&ANTENNA-WITH(MANUAL)
TIRE & DISK WHEEL-70TH PACKAGE L & DARK GRAY&AUDIO(FOR OVERSEAS MARKET)-AM & 1SPEAKER
SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE)
PAPUA NEW GUINEA SPEC&TIRE & DISK WHEEL-70TH PACKAGE L & DARK GRAY
AIR CLEANER-CYCRON & SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-AM/FM & 2SPEAKER
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&TIRE & DISK WHEEL-70TH PACKAGE Q & DARK GRAY
AIR CLEANER-CYCRON & SCHNORKEL&TIRE & DISK WHEEL-265/70R16LT 7JJ ALUMINUM WITHOUT(TUBE)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 2SPEAKER
SPECIAL EDITION
TIRE & DISK WHEEL-265/70R16LT 7JJ ALUMINUM WITHOUT(TUBE)
AIR CLEANER-SQUARE & SCHNORKEL
TIRE & DISK WHEEL-265/70R16 7J ALUMINUM
AIR CLEANER-SQUARE & SCHNORKEL&TIRE & DISK WHEEL-265/70R16LT 7JJ ALUMINUM WITHOUT(TUBE)
SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM
TIRE & DISK WHEEL-265/70R16LT 7JJ ALUMINUM WITHOUT(TUBE)
53802FENDER SUB-ASSY, FRONT LH
main53802-60A80iVDJ79..LX..GCC;GRJ71,78,79,VDJ78,79..(HT,PIC)..STD..(ARL,GCC)..(CBU,IV)201608-202309
ANTENNA-WITH(MANUAL)
SOUTH AFRICA SPEC&ANTENNA-WITH(POWER)
SOUTH AFRICA SPEC
ANTENNA-WITH(MANUAL)
UAE SPEC&WINDSHIELD GLASS-*LAM&AUDIO(FOR OVERSEAS MARKET)-*DA *BT CP USB *TEL DAB& 4SPEAKER
TIRE & DISK WHEEL-265/70R16 7J ALUMINUM
SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM W(TUBE)&ANTENNA-WITH(POWER)
TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM WITH(TUBE)&ANTENNA-WITH(POWER)
TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM WITH(TUBE)
PAPUA NEW GUINEA SPEC&TIRE & DISK WHEEL-70TH PACKAGE L & DARK GRAY
TIRE & DISK WHEEL-265/70R16LT 7JJ ALUMINUM WITHOUT(TUBE)
TIRE & DISK WHEEL-265/70R16LT 7JJ ALUMINUM WITHOUT(TUBE)
TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM
GHANA SPEC&TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM
TIRE & DISK WHEEL-265/70R16 7J ALUMINUM&AUDIO(FOR OVERSEAS MARKET)-2DIN AM(10K) FMCD USB & 2SPEAKER
TIRE & DISK WHEEL-265/70R16LT 7JJ ALUMINUM WITHOUT(TUBE)
53803CREINFORCE SUB-ASSY, FRONT FENDER SIDE, REAR RH
SPECIAL EDITION
53882MSEAL, FRONT FENDER
AIR CLEANER-CYCRON & SCHNORKEL
AIR CLEANER-SQUARE & SCHNORKEL
53891KSEAL, FRONT FENDER SPLASH SHEILD, FRONT
AIR CLEANER-CYCRON & SCHNORKEL
AIR CLEANER-SQUARE & SCHNORKEL
53911PANEL, FRONT VALANCE
NO PAINT REQ.
76109GUIDE SUB-ASSY, HOOD AIR INTAKE
76181BULGE, HOOD
76183PROTECTOR, HOOD BULGE, NO.1
76184PROTECTOR, HOOD BULGE, NO.2
76187RETAINER, HOOD AIR INTAKE GUIDE, NO.1
9011906366
main90119-06366
9011908892
main90119-08892
9015950388
main90159-50388
9016745005
main90167-45005
9017906115
main90179-06115
9017906206
main90179-06206
9018905027
main90189-05027
9046706084
main90467-06084
9046710186
main90467-10186
9048018011
main90480-18011
9048020276
main90480-20276
9054109069
main90541-09069
9095003041
main90950-03041
91651B0822
main91651-B0822
36 parts on this diagram · 6 diagrams in section
