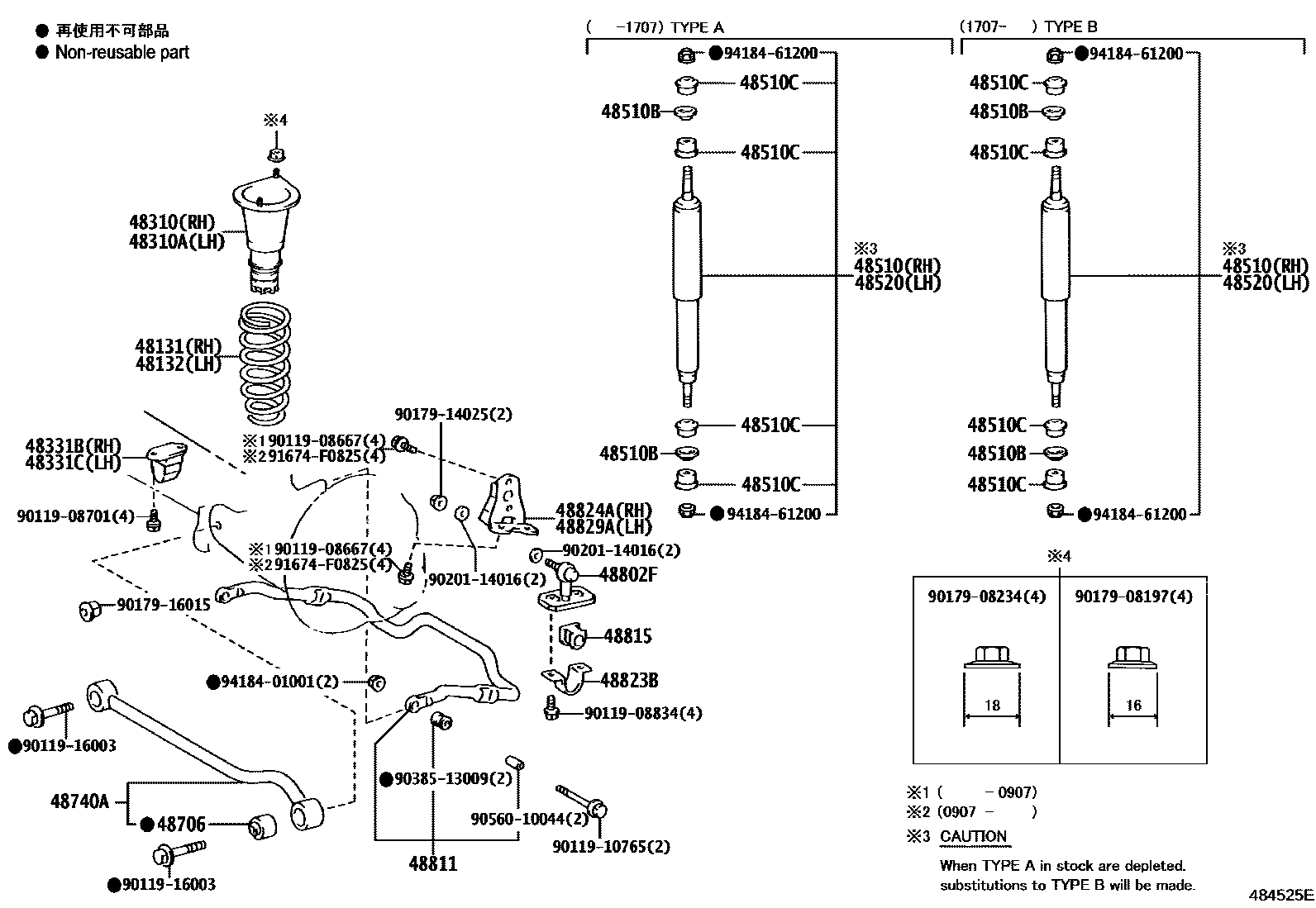

FRONT SPRING & SHOCK ABSORBER

0001 1 0005 1

48131SPRING, FRONT COIL, RH

main48131-60C40iGRJ76;HZJ76..RHD200701-202309

main48131-6B150iGRJ71,HZJ71202309

main48131-6B180iGDJ71202309

WINCH-WITH

main48131-6B260iGDJ76..GCC202309

SUSPENSION-COIL/LEAF(STANDARD),WINCH

main48131-6B260iVDJ76202309-202409

main48131-6B260iGRJ76200701-201608

WINCH-WITH(ELECTRIC)

main48131-6B260iGRJ76201608-202309

WINCH-WITH

main48131-6B290iVDJL76202309-202409

WINCH-WITH

main48131-6B290iHZJ79;GRJ79..PIC200701-201608

WINCH-WITH(ELECTRIC)

main48131-6B290iGRJ79;GDJ76..RHD..GEN201608-202309

SUSPENSION-COIL/LEAF(STANDARD),WINCH

main48131-6B320iGRJ78200701-202309

main48131-6B340iVDJ79..STD..CBU201304-202508

main48131-6B340iHZJ78..GEN201608-202309

SUSPENSION-COIL/LEAF(STANDARD),WINCH

main48135-60010iVDJ79..DCB..GCC202309-202409

SUSPENSION-COIL/LEAF(STANDARD),WINCH

main48135-60010iVDJ79..RHD..PIC;VDJ79,L79..LX..IV200701-202508

main48131-6B310iHZJ79202309

SUSPENSION-COIL/LEAF(STANDARD),WINCH

main48131-6B370iGRJ79;HZJ79..GEN201608-202309

SUSPENSION-COIL/LEAF(HEAVY DUTY)

main48131-6B380iVDJ79..GCC202309-202409

SUSPENSION-COIL & LEAF HEAVY DUTY

48132SPRING, FRONT COIL, LH

main48131-60C40iGRJ76;HZJ76..RHD;HZJ76..GCC200701-202309

main48131-6B150iGRJ71,HZJ71202309

main48131-6B180iGDJ71202309

WINCH-WITH

main48131-6B260iGRJ76201608-202309

WINCH-WITH

main48131-6B260iVDJ76202309-202409

main48131-6B260iGDJ76..GCC202309

SUSPENSION-COIL/LEAF(STANDARD),WINCH

main48131-6B260iHZJ76..LHD..GEN;GRJ79,VDJ76..DCB,HT200701-201608

WINCH-WITH(ELECTRIC)

main48131-6B290iGRJ79..PIC;HZJ79..GEN201608-202309

SUSPENSION-COIL/LEAF(STANDARD),WINCH

main48131-6B290iHZJ79;GRJ79..PIC200701-201608

WINCH-WITH(ELECTRIC)

main48131-6B290iVDJL76202309-202409

WINCH-WITH

main48131-6B320iHZJ78;GRJ78..LHD200701-202309

main48131-6B340iGDJ78,79,HZJ78..CBU201304-202508

main48131-6B340iHZJ78..GEN201608-202309

SUSPENSION-COIL/LEAF(STANDARD),WINCH

main48135-60010iVDJ79..DCB..GCC202309-202409

SUSPENSION-COIL/LEAF(STANDARD),WINCH

main48135-60010iGDJ79..PIC..IV200701-202508

main48131-6B310iHZJ79;GRJ79..PIC..GEN200701-201608

SUSPENSION-COIL & LEAF(STD),WINCH

main48131-6B370iHZJ79..GCC201608-201612

SUSPENSION-COIL/LEAF(HEAVY DUTY)

main48131-6B380iVDJ79..GEN202309-202508

SUSPENSION-COIL & LEAF HEAVY DUTY

48310SPRING ASSY, FRONT SUSPENSION HOLLOW, RH

main48310-60101iGRJ71,78..RHD200701-202508

main48310-60121iFZJ79200701-200907

SUSPENSION-COIL & LEAF HEAVY DUTY

48310ASPRING ASSY, FRONT SUSPENSION HOLLOW, LH

main48310-60111iGDJ7#,L7#,GRJ7#,HZJ7#200701-202508

main48310-60131iHZJ79..GCC201608-201612

SUSPENSION-COIL/LEAF(HEAVY DUTY)

48331BBUMPER, FRONT SPRING, RH

main48304-60110iFZJ7#200701-202508

main48304-60160iGDJ79,L79..PIC..IV201608-202508

48331CBUMPER, FRONT SPRING, LH

main48304-60110iFZJ7#200701-202508

main48304-60160iVDJ79,L79..PIC..IV201608-202508

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-69665iFZJ71,76200701-201707

MARK 48511-60600

sub48511-69666

main48511-69666iGRJ71,76,HZJ71,76,VDJ76,79,L76,L79..CBU,IV201707-202508

MARK 48511-60600

main48511-69675iFZJ78200701-201608

MARK 48511-60620,SUSPENSION-COIL & LEAF HEAVY DUTY

sub48511-69676

main48511-69675iGRJ78..RHD200701-201208

MARK 48511-60620

sub48511-69676

main48511-69675iHZJ79..GCC201608-201707

MARK 48511-60620,SUSPENSION-COIL/LEAF(HEAVY DUTY),WINCH

sub48511-69676

main48511-69676iGRJ78,HZJ78,VDJ78,L78201707-202309

MARK 48511-60620,SUSPENSION-COIL/LEAF(HEAVY DUTY),WINCH

main48511-69676iGDJ78,L78,GRJ78,HZJ78202309-202409

MARK 48511-60620,SUSPENSION-COIL & LEAF HEAVY DUTY

main48511-69685iGRJ79;HZJ79..GEN201608-201707

MARK 48511-60610

sub48511-69686

main48511-69686iGRJ79,HZJ79201707-202309

MARK 48511-60610

main48511-69725iVDJ79..RHD;VDJL79..LX202309-202508

MARK 48511-60800

main48511-69725iGRJ7#,HZJ7#,VDJ7#,L7#..CBU,IV201906-202309

MARK 48511-60800,FOR EGYPT

main48511-69735iGDJ7#,L7#,GRJ7#,HZJ7#202309-202508

MARK 48511-60810

main48511-69735iGRJ7#,HZJ7#,VDJ7#,L7#..CBU,IV201906-202309

MARK 48511-60810,FOR EGYPT

main48511-69745iVDJ79..RHD;VDJL79..LX202309-202508

MARK 48511-60850

main48511-69745iGRJ7#,HZJ7#,VDJ7#,L7#..CBU,IV201906-202309

MARK 48511-60850,FOR EGYPT

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02141iHZJ76,78,79..GCC200701-202508

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main48509-60040iGRJ71,78..RHD200701-202508

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-69665iHZJ76..GCC200701-201707

MARK 48511-60600

sub48511-69666

main48511-69666iVDJ79..RHD;VDJL79..LX201707-202508

MARK 48511-60600

main48511-69675iFZJ78200701-201608

MARK 48511-60620,SUSPENSION-COIL & LEAF HEAVY DUTY

sub48511-69676

main48511-69675iGRJ78..RHD200701-201208

MARK 48511-60620

sub48511-69676

main48511-69675iHZJ79..GCC201608-201707

MARK 48511-60620,SUSPENSION-COIL/LEAF(HEAVY DUTY),WINCH

sub48511-69676

main48511-69676iGDJ78,L78,GRJ78,HZJ78202309-202409

MARK 48511-60620,SUSPENSION-COIL & LEAF HEAVY DUTY

main48511-69676iGRJ78,HZJ78,VDJ78,L78201707-202309

MARK 48511-60620,SUSPENSION-COIL/LEAF(HEAVY DUTY),WINCH

main48511-69685iGRJ79;HZJ79..GEN201608-201707

MARK 48511-60610

sub48511-69686

main48511-69686iGRJ79,HZJ79201707-202309

MARK 48511-60610

main48511-69725iVDJ79..RHD;VDJL79..LX202309-202508

MARK 48511-60800

main48511-69725iGRJ7#,HZJ7#,VDJ7#,L7#..CBU,IV201906-202309

MARK 48511-60800,FOR EGYPT

main48511-69735iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202508

MARK 48511-60810

main48511-69735iGRJ7#,HZJ7#,VDJ7#,L7#..CBU,IV201906-202309

MARK 48511-60810,FOR EGYPT

main48511-69745iVDJ79..RHD;VDJL79..LX202309-202508

MARK 48511-60850

main48511-69745iGRJ7#,HZJ7#,VDJ7#,L7#..CBU,IV201906-202309

MARK 48511-60850,FOR EGYPT

48706BUSH SUB-ASSY, FRONT LATERAL CONTROL ROD

main48706-60030iGRJ79,HZJ7#,VDJ7#..RHD200701-202508

main48706-60070iVDJ7#..GCC200701-202409

48740AROD ASSY, FRONT LATERAL CONTROL

main48740-60060iVDJ79..STD..IV;VDJL79..PIC..LX201608-202508

main48740-60130iFZJ71,78,79..RHD200701-202508

main48740-60140iVDJ7#..GCC200701-202409

48802FLINK SUB-ASSY, FRONT STABILIZER

main48802-60050iFZJ7#,HZJ7#,VDJ7#200701-200904

sub48802-60120

main48802-60120iFZJ7#200904-202508

48811BAR, STABILIZER, FRONT

main48804-60100iHZJ71,76,VDJ76200701-201608

main48804-60110iHZJ78,79,VDJ78,79200701-201608

main48804-60130iGRJ71,76200907-202309

main48804-60140iGRJ79;GRJ78..LHD200907-202309

main48804-60150iVDJ76,L76201608-202409

main48804-60160iVDJ79..RHD;VDJL79..LX201608-202508

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-26020iGRJ79;GRJ78..LHD200907-202309

main48815-60040iHZJ71,76,VDJ76200701-202409

main48815-60170iVDJ79..RHD;VDJL79..LX200701-202508

main48815-60330iGRJ71,76..LHD200907-202309

48823BCOVER, FRONT STABILIZER BRACKET

main48823-60030iVDJ79..RHD;VDJL79..LX200701-202508

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-60030iVDJL79..PIC..STD201608-202508

main48824-60130iVDJ79..GEN;VDJ79,L79..DCB..LX..IV200701-202508

main48824-60200iGRJ79;GRJ71,76,78..LHD200907-202309

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48807-60020iGDJ79,L79..PIC..IV201608-202508

main48829-60080iFZJ7#200701-202508

main48829-60130iGRJ7#200907-202309

9011908667

main90119-08667

9011908701

main90119-08701

9011908834

main90119-08834

9011910765

main90119-10765

9011916003

main90119-16003

9017908197

main90179-08197

9017908234

main90179-08234

9017914025

main90179-14025

9017916015

main90179-16015

9020114016

main90201-14016

9038513009

main90385-13009

9056010044

main90560-10044

91674F0825

main91674-F0825

9418401001

main94184-01001

9418461200

main94184-61200

33 parts on this diagram · 2 diagrams in section
