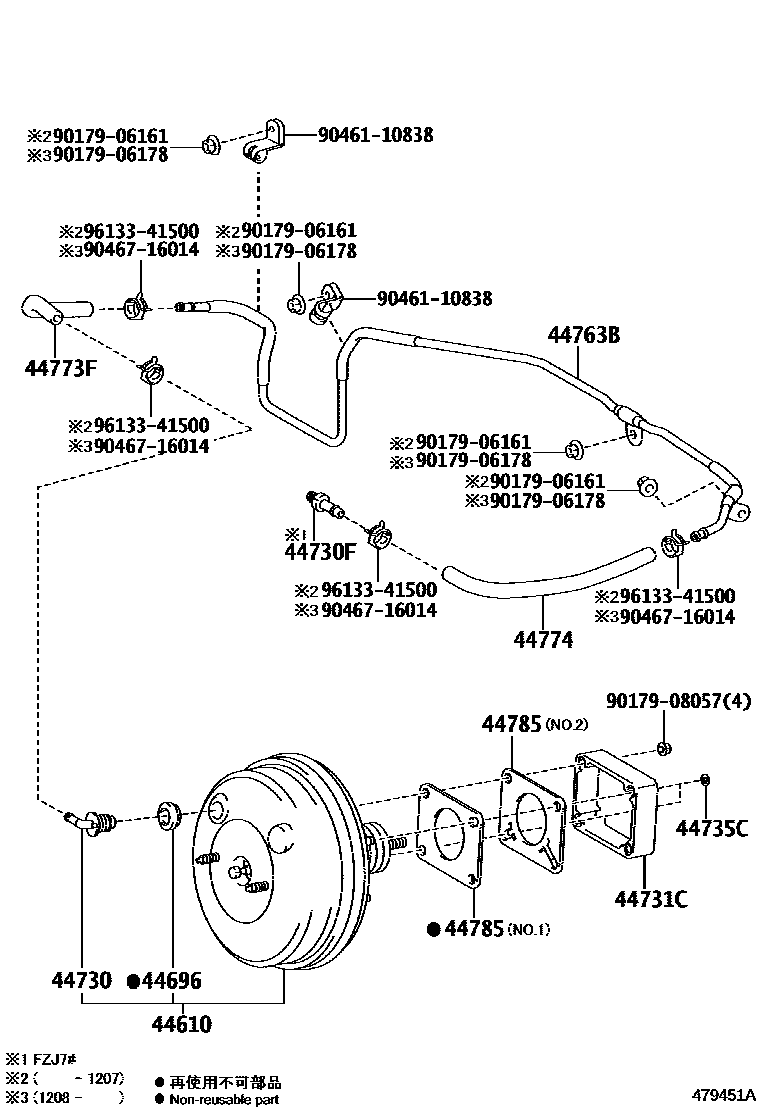

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44610BOOSTER ASSY, BRAKE

main44610-60A00iVDJ7#,L7#..ARL..(CBU,IV)201608-202309

main44610-60A20iVDJ7#..GCC202309-202409

main44610-60A30supersedes 44610-6A290iGRJ7#..LHD..GEN202309

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main44610-60A40supersedes 44610-6A280iVDJ79..GEN202309-202508

main44610-6A280iVDJ7#200701-201208

main44610-6A290iGRJ79..RHD200701-201408

main44610-6A360supersedes 44610-6A290iGRJ7#..LHD..GEN201608-201709

REAR WHEEL BRAKE-DISC FS14 18V

main44610-6A370supersedes 44610-6A280iHZJ7#..GEN201608-201709

REAR WHEEL BRAKE-DISC FS14 18V

44696GROMMET, CHECK VALVE

main90480-24439iGRJ71,78..RHD200701-201208

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iGRJ7#200701-201001

main44730-20170iGRJ79;GRJ71,76,78..LHD201002-201608

main44730-60050iGDJ7#,L7#,HZJ7#202309

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51237iFZJ7#200701-200907

44731CBRACKET, BRAKE BOOSTER

main44731-60020iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202409

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010×2iHZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#201608-201709

main44735-30020×2iGDJ7#,GRJ7#..LHD..6FC202309

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44763-60170iFZJ71,78,79..RHD200701-200907

main44763-60180iHZJ7#..LHD..GEN201608-202309

main44763-60220iGRJ71,78..RHD200907-201208

main44763-60230iVDJ7#..GCC201701-202309

44773FHOSE, UNION TO CHECK VALVE

main44773-60240iFZJ7#..LHD200701-200907

main44773-60250iGRJ71,78..RHD200701-201208

main44773-60260iHZJ7#..LHD200701-201608

main44773-60280iVDJ7#200701-201208

main44773-60320iGRJ7#..LHD..GEN201608-202309

main44773-60330iGDJ7#..LHD202309

main44773-60340supersedes 44773-60270iVDJ7#,L7#..RHD..(CBU,IV)201608-202309

main44773-60370iGRJ79..RHD201608-202309

main44773-60380supersedes 44773-60320iGRJ7#..GCC201701-202309

44774HOSE, UNION TO CONNECTOR TUBE

main44774-60320iFZJ71,78,79..RHD200701-200907

main44774-60330iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202409

main44774-60350iGRJ79..RHD201608-202309

main44774-60410iGDJ7#,L7#..RHD202309

main44774-60420iGDJ7#..LHD202309

44785GASKET, BRAKE BOOSTER

main44785-35020iVDJ79..RHD;VDJL79..LX202309-202508

NO.1

main44785-35030iGRJ71,78..RHD200701-201208

NO.2

9017906161

main90179-06161

9017906178

main90179-06178

9017908057

main90179-08057

9046110838

main90461-10838

9046716014

main90467-16014

9613341500

main96133-41500

16 parts on this diagram · 8 diagrams in section
