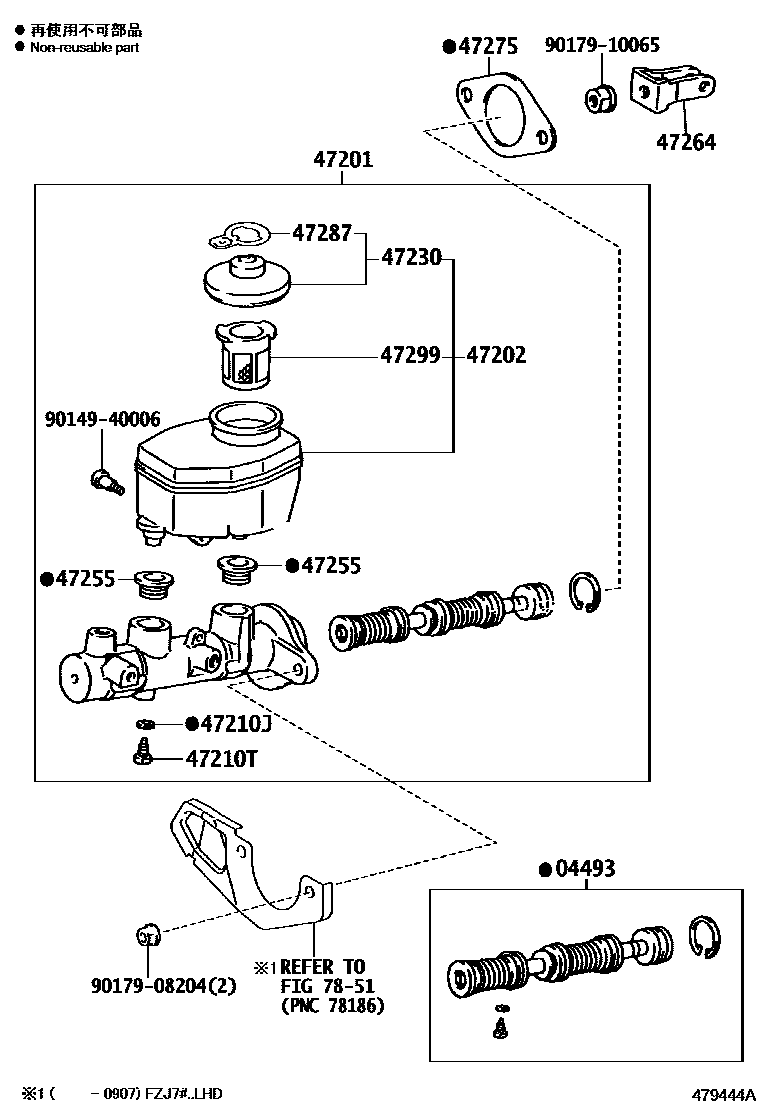

BRAKE MASTER CYLINDER

0001 1 0002 1W/O(ABS),W/O(VSC) 0004 1W(ABS),W(VSC) 0005 1W(ABS)

04493CYLINDER KIT, BRAKE MASTER

main04493-60300iGRJ7#..GCC200701-202309

main04493-60380iGRJ79,VDJ76,79..RHD..GEN201408-202508

main04493-60380iVDJ7#201208-201608

REAR WHEEL BRAKE-DISC FS14 18V

main04493-60380iGRJ79..RHD202309

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main04493-60380iGRJ79..RHD202309

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ACTIVE ELECTRIC TYPE)

main04493-60390iGDJ7#,L7#..RHD;GRJ7#..5F..GCC;GDJ76,78,79..LHD..5F201608-202508

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60831iGRJ71,78,79,HZJ7#,VDJ7#..RHD200701-201207

sub47201-60832

main47201-60832iGRJ79..RHD201208-201709

main47201-60A00iHZJ76,78,79..GCC200701-201709

main47201-60A50iHZJ7#..RHD202309

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ACTIVE ELECTRIC TYPE)

main47201-60A50iGRJ79..RHD202309

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47201-60A50iVDJ79..GEN201408-202508

main47201-60A50iVDJ7#201208-201608

REAR WHEEL BRAKE-DISC FS14 18V

main47201-60A60iVDJ79..IV;VDJL79..LX201608-202508

main47201-60A70iGRJ7#,VDJ7#..GCC201701-202409

main47201-60A90iHZJ7#..RHD201709-202309

main47201-60B00iGRJ7#,HZJ7#..LHD..GEN201709-202309

main47201-60B50iGDJ7#,GRJ7#..LHD..6FC202309

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-35010iFZJ71,78,79..RHD200701-201207

sub47220-60080

main47220-60080iHZJ7#..RHD201208-201709

main47220-60200iGRJ7#,HZJ7#..LHD..GEN200701-201709

main47220-60250iGRJ7#,HZJ7#..LHD..GEN201701-202409

main47220-60260iHZJ7#..RHD201408-202508

main47220-60260iHZJ7#..RHD201208-201608

REAR WHEEL BRAKE-DISC FS14 18V

main47220-60300iGDJ7#,GRJ7#..LHD..6FC202309

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iHZJ76,78,79..GCC200701-202309

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iGRJ71,78,VDJ7#..RHD200701-202309

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iGRJ71,78,79,HZJ7#,VDJ7#..RHD200701-201208

main47230-20140iFZJ7#..LHD200701-202508

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iFZJ7#200701-202508

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-26030iFZJ7#200701-202508

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iFZJ7#200701-202508

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGDJ7#,L7#,GRJ7#,HZJ7#201608-202508

main47287-20010iVDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#..LHD;GRJ79,HZJ79..RHD..DCB200701-201708

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGRJ79..RHD200701-202508

main47299-20060iVDJ7#..(HT,PIC)..ARL201208-201608

REAR WHEEL BRAKE-DISC FS14 18V

main47299-24010iHZJ7#..RHD200701-201709

7851

9014940006

main90149-40006

9017908204

main90179-08204

9017910065

main90179-10065

15 parts on this diagram · 4 diagrams in section
