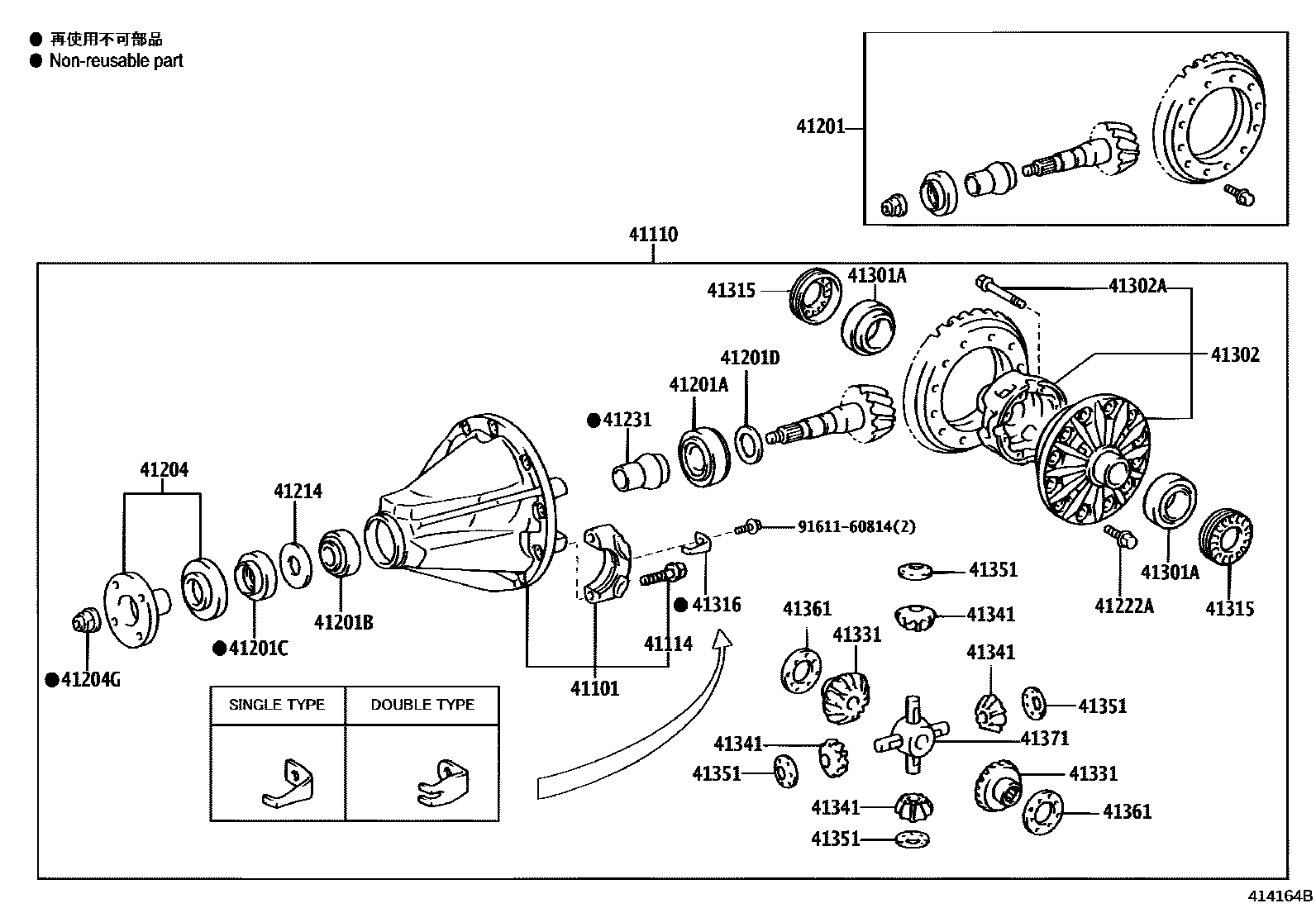

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=43:11=3.909
*FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P
sub41110-60A21
*FGR=41:10=4.100
*FGR=43:10=4.300
*FGR=43:11=3.909
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, LSD
*FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK
*FGR=41:10=4.100,REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P
*FGR=41:10=4.100
*FGR=43:10=4.300
*FGR=43:11=3.909
*FGR=43:11=3.909
*FGR=41:10=4.100
*FGR=43:10=4.300
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.05
T=1.075
T=1.10
T=1.125
T=1.15
T=1.175
T=1.20
T=1.225
T=1.25
T=1.275
T=1.30
T=1.325
T=1.35
T=1.375
T=1.40
T=1.425
T=1.45
T=1.475
T=1.50
T=1.525
T=1.55
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204GNUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41302CASE SUB-ASSY, REAR DIFFERENTIAL
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, LSD
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, LSD
41341PINION, REAR DIFFERENTIAL
REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, LSD
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
T=2.000
T=2.050
T=2.100
41371SPIDER, REAR DIFFERENTIAL
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, LSD
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, LSD
9161160814
main91611-60814
24 parts on this diagram · 5 diagrams in section
