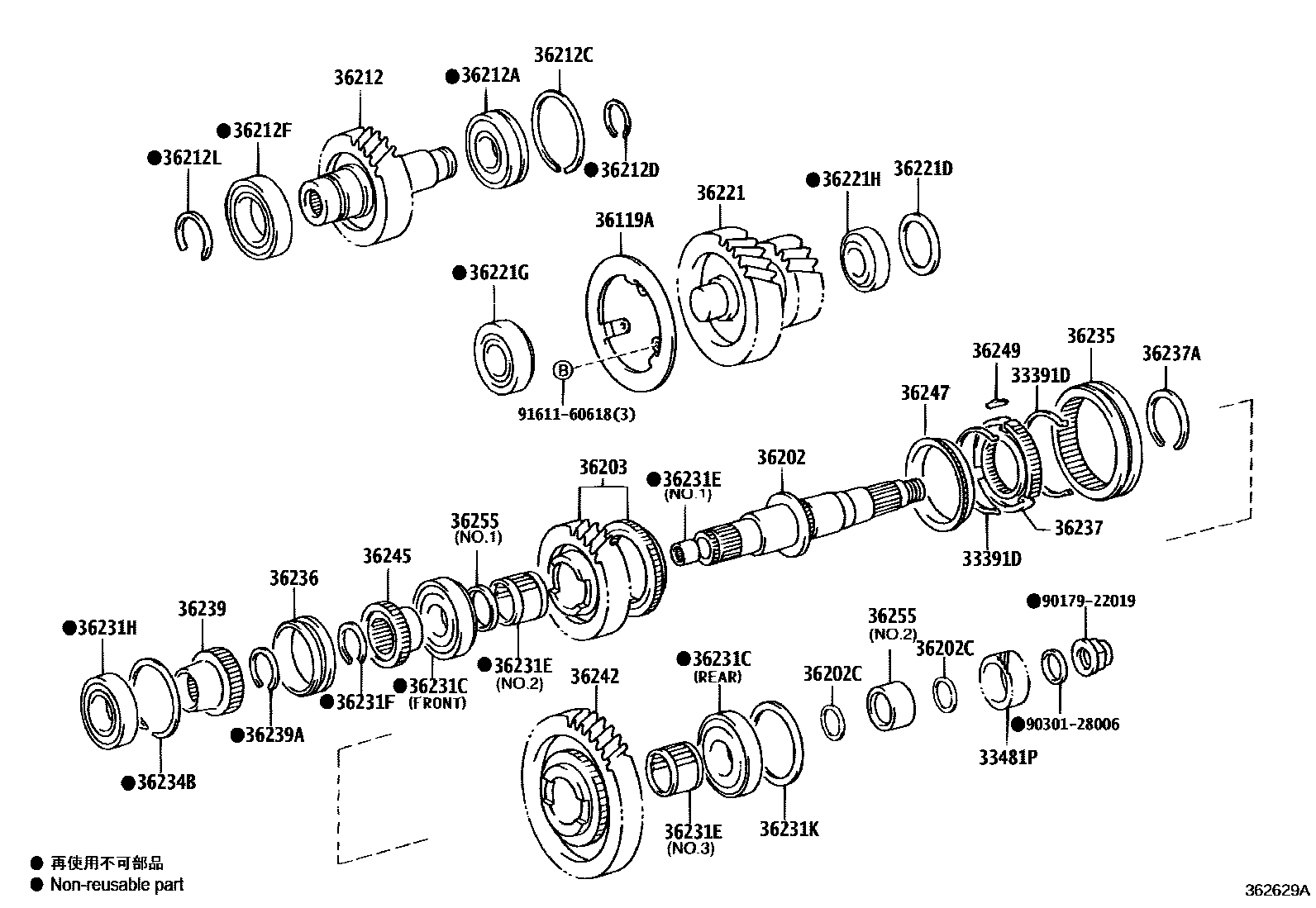

TRANSFER GEAR
33391DSPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=6,MARK 6:15-17
N=12,MARK 12:31-33
36119ARECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR)
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
36202CWASHER, PLATE(FOR TRANSFER OUTPUT REAR SHAFT)
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
T=1.65
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=2.0,MARK A
T=2.1,MARK B
T=2.2,MARK C
T=2.3,MARK D
T=2.4,MARK E
36212FBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)
36212LRING, SHAFT SNAP
T=2.90-2.95,MARK A
T=2.95-3.00,MARK B
T=3.00-3.05,MARK C
T=3.05-3.10,MARK D
T=3.10-3.15,MARK E
T=3.15-3.20,MARK F
36221GEAR, TRANSFER IDLER
36221DWASHER, PLATE(FOR TRANSFER IDLER GEAR)
T=0.29-0.31,MARK 2
T=0.44-0.46,MARK 3
T=2.39-2.41,MARK 4
T=2.59-2.61,MARK 5
T=2.79-2.81,MARK 6
T=2.99-3.01,MARK 7
T=3.19-3.21,MARK 8
T=3.39-3.41,MARK 9
T=3.59-3.61,MARK 10
T=3.79-3.81,MARK 11
T=3.99-4.01,MARK 12
T=0.55,MARK 13
36221GBEARING (FOR TRANSFER ILDER GEAR), FRONT
36221HBEARING (FOR TRANSFER ILDER GEAR), REAR
36231SHAFT, TRANSFER OUTPUT, REAR
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
FRONT
REAR
FRONT
REAR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
NO.1
NO.2
NO.3
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=2.0,MARK A
T=2.1,MARK B
T=2.2,MARK C
T=2.3,MARK D
T=2.4,MARK E
T=2.30-2.35,MARK 11
T=2.6-2.65,MARK 17
36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)
36231KWASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE)
T=0.29-0.31,MARK 2
T=0.44-0.46,MARK 3
T=0.99-1.01,MARK 4
T=1.19-1.21,MARK 5
T=1.39-1.41,MARK 6
T=1.59-1.61,MARK 7
T=1.79-1.81,MARK 8
T=1.99-2.01,MARK 9
T=2.19-2.21,MARK 10
T=2.39-2.41,MARK 11
T=2.59-2.61,MARK 12
T=0.51-0.59,MARK 13
36234SHAFT, TRANSFER OUTPUT, FRONT
TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
T=1.6
T=1.7,MARK A
T=1.8,MARK B
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)
36237HUB, TRANSFER CLUTCH
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
T=2.60,MARK A
T=2.65,MARK B
T=2.70,MARK C
T=2.75,MARK D
T=2.80,MARK E
T=2.85,MARK F
T=2.90,MARK G
36239HUB, TRANSFER DRIVE CLUTCH
36239ARING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB)
T=1.8,MARK A
T=1.9,MARK B
T=2.0,MARK C
T=2.1,MARK D
T=2.2,MARK E
36242GEAR, TRANSFER LOW
36245PIECE, TRANSFER FRONT DRIVE GEAR
36247RING, TRANSFER SYNCHRONIZER
36249KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
NO.2
NO.1
9017922019
main90179-22019
9030128006
main90301-28006
9161160618
main91611-60618
38 parts on this diagram · 2 diagrams in section
