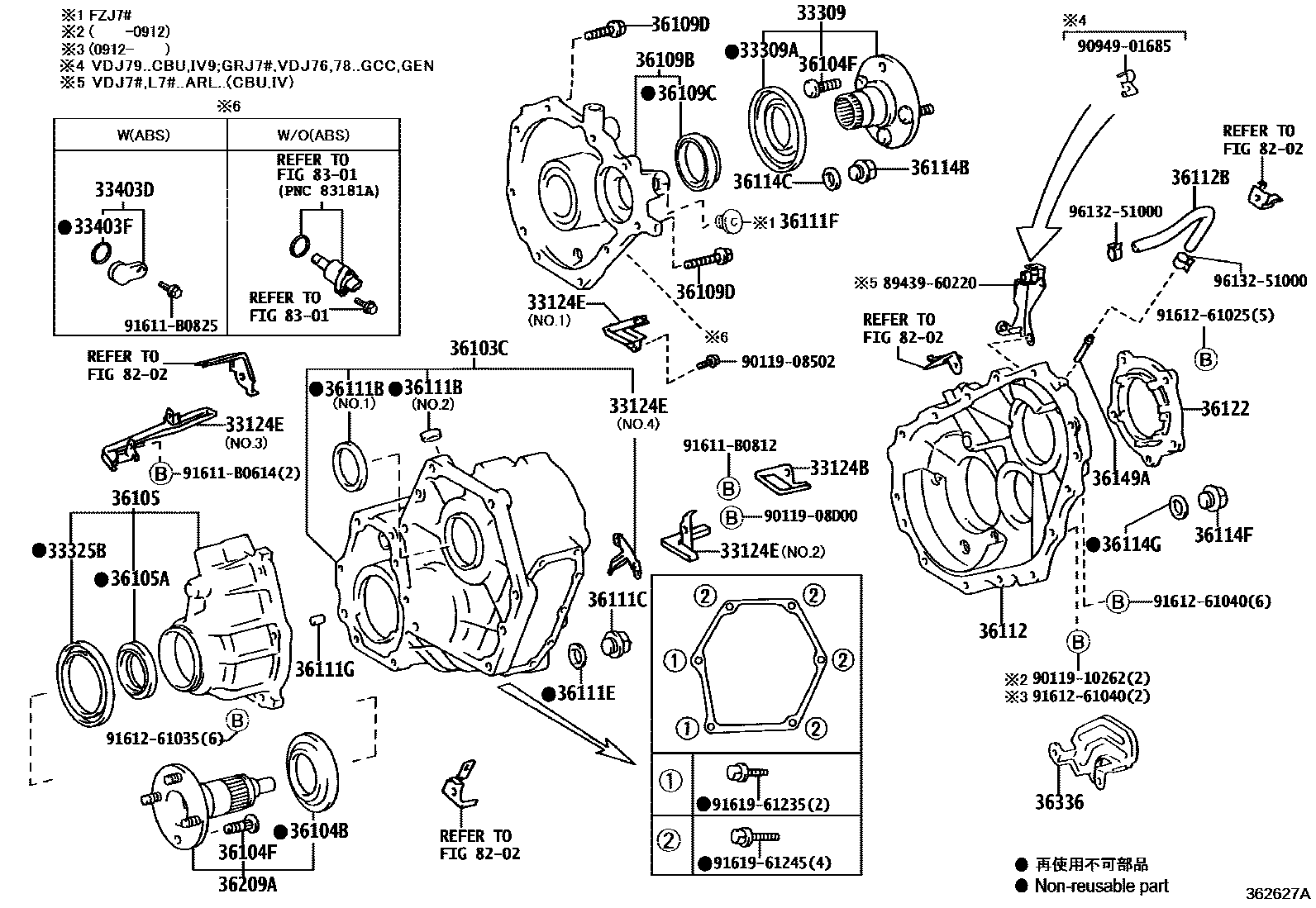

TRANSFER CASE & EXTENSION HOUSING
33124BPIPE, OIL RECEIVER(FOR TRANSFER REAR CASE)
33124EPIPE, OIL RECEIVER(FOR TRANSFER)
NO.1
NO.2
NO.3
NO.4
33309FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION
33309ADEFLECTOR, DUST
33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
33403DCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ACTIVE ELECTRIC TYPE)
33403FRING,O (FOR SPEEDOMETER DRIVEN HOLE COVER)
REAR WHEEL BRAKE-DISC FS14 18V
36103CASE SUB-ASSY, TRANSFER
TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)
ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT WET)
36103CCASE, TRANSFER, FRONT
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
OMAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)
REAR
FRONT
36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)
FRONT
REAR
36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
FRONT
REAR
36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105ASEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)
36109BHOUSING SUB-ASSY, TRANSFER EXTENSION, REAR
36109CSEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)
36109DBOLT (FOR TRANSFER EXTENSION REAR HOUSING)
*10-1.25PX75-30
*10-1.25PX35-30
36111BSEAL, OIL (FOR TRANSFER CASE)
NO.2
NO.1
36111CPLUG (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
NO.1
NO.2
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=24,0D=10
L=16,OD=12
36112CASE, TRANSFER, REAR
36112BHOSE, NO.1 (FOR TRANSFER REAR CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36122COVER, TRANSFER CASE, NO.2
36149APIPE, TRANSFER BREATHER, NO.2
36209ASHAFT, TRANSFER OUTPUT, FRONT
36336INSULATOR, TRANSFER HEAT
8202
8301
8943960220BRACKET, SENSOR
main89439-60220
9011908502
main90119-08502
9011908D00
main90119-08D00
9011910262
main90119-10262
9094901685
main90949-01685
91611B0614
main91611-B0614
91611B0812
main91611-B0812
91611B0825
main91611-B0825
9161261025
main91612-61025
9161261035
main91612-61035
9161261040
main91612-61040
9161961235
main91619-61235
9161961245
main91619-61245
9613251000
main96132-51000
48 parts on this diagram · 4 diagrams in section
