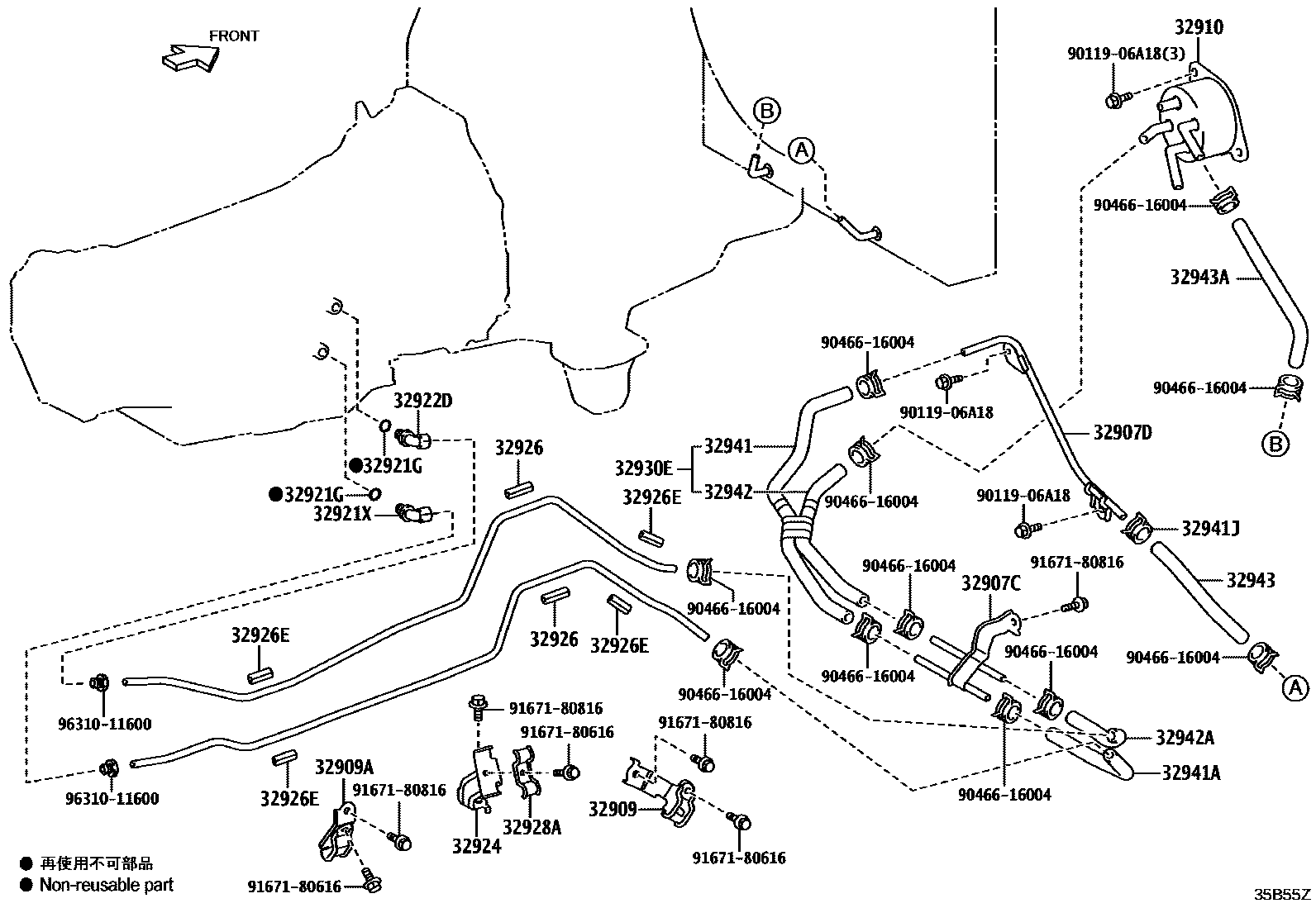

OIL COOLER & TUBE (ATM)
32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907DTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2
32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1
32909ACLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2
32921TUBE, OIL COOLER INLET, NO.1
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921XUNION OR ELBOW, OIL COOLER INLET
32922DUNION OR ELBOW, OIL COOLER OUTLET
32924CLAMP, OIL COOLER TUBE, NO.2
32926CUSHION, OIL COOLER TUBE(ATM)
L=45,ID=10
32926ECUSHION, OIL COOLER TUBE, NO.2(ATM)
32928CLAMP, FLEXIBLE HOSE, NO.1
32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)
32930EHOSE ASSY, TRANSMISSION OIL COOLER, NO.1
32941HOSE, OIL COOLER INLET, NO.1
32941AHOSE, OIL COOLER INLET, NO.2
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
32942HOSE, OIL COOLER OUTLET, NO.1
32942AHOSE, OIL COOLER OUTLET, NO.2
32943HOSE, TRANSMISSION OIL COOLER, NO.1
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
9011906A18
main90119-06A18
9046616004
main90466-16004
9167180616
main91671-80616
9167180816
main91671-80816
9631011600
main96310-11600
27 parts on this diagram · 2 diagrams in section
