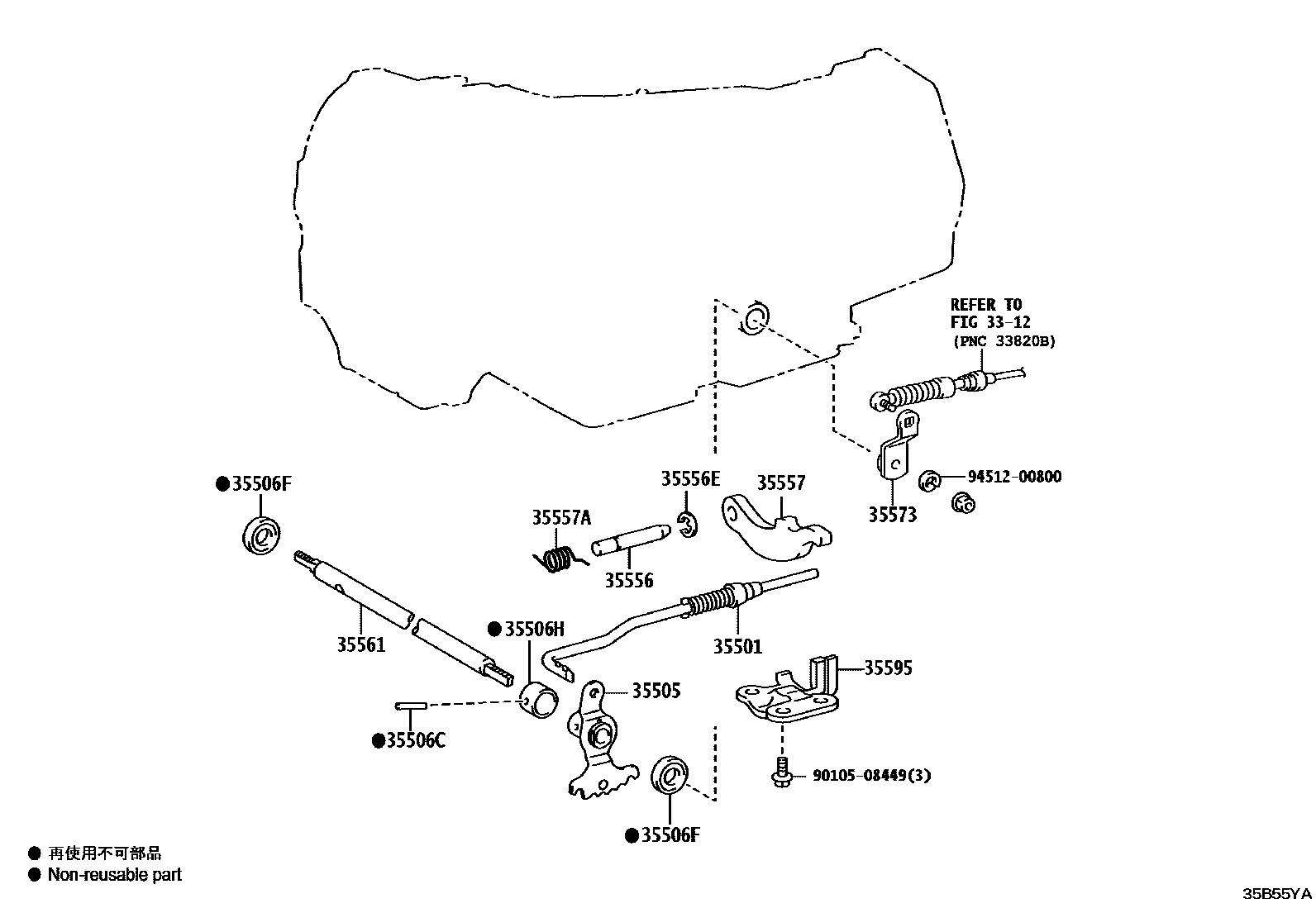

THROTTLE LINK & VALVE LEVER (ATM)

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-71020iGDJ7#,L7#,GRJ7#..6FC202309

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-26010iGDJ7#,L7#..6FC202309

main35505-26040iGRJ7#..6FC202309

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGDJ7#,L7#,GRJ7#..6FC202309

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iGDJ7#,L7#,GRJ7#..6FC202309

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGDJ7#,L7#,GRJ7#..6FC202309

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGDJ7#,L7#,GRJ7#..6FC202309

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGDJ7#,L7#,GRJ7#..6FC202309

35557PAWL, PARKING LOCK

main35557-71010iGDJ7#,L7#,GRJ7#..6FC202309

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGDJ7#,L7#,GRJ7#..6FC202309

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGDJ7#,L7#,GRJ7#..6FC202309

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-35100iGDJ7#,L7#,GRJ7#..6FC202309

35595BRACKET, PARKING LOCK PAWL

main35595-71010iGDJ7#,L7#,GRJ7#..6FC202309

9010508449

main90105-08449

9451200800

main94512-00800

15 parts on this diagram · 1 diagram in section
