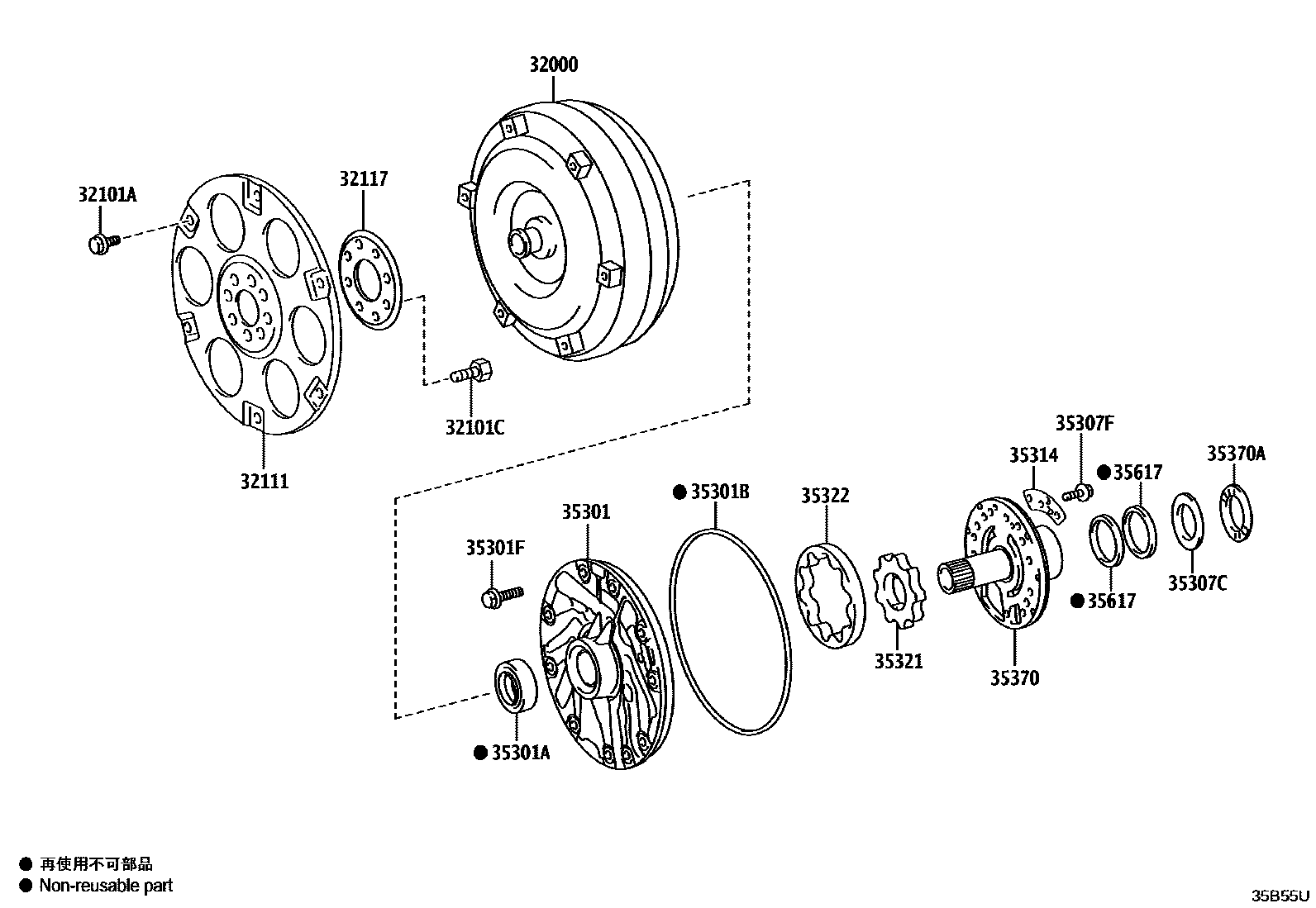

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AC60F 0002 1AC60F

32000CONVERTER ASSY, TORQUE

main32000-71060iGRJ7#..6FC202309

main32000-71100iGDJ7#,L7#..6FC202309

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-60060iGRJ7#..6FC202309

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413×5iGDJ7#,L7#..6FC202309

*10-1.5PX11-8,SILVER WHITE

main90105-10546iGDJ7#,L7#..6FC202309

*10-1.5PX11-8,BLACK

main90119-09026iGRJ7#..6FC202309

*9-1.25PX12.8-9,BLACK

main90119-09027×5iGRJ7#..6FC202309

*9-1.25PX12.8-8.8,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10543×8iGRJ7#..6FC202309

*10-1.25PX22-15

main90105-13015×8iGDJ7#,L7#..6FC202309

*13-1.5PX43.5-23.5

32111PLATE, PUMP IMPELLER DRIVE

main32111-71010iGDJ7#,L7#..6FC202309

32117SPACER, DRIVE PLATE, REAR

main32117-60050iGDJ7#,L7#..6FC202309

main32117-60060iGRJ7#..6FC202309

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-71010iGDJ7#,L7#,GRJ7#..6FC202309

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38101iGDJ7#,L7#,GRJ7#..6FC202309

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGDJ7#,L7#,GRJ7#..6FC202309

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×10iGDJ7#,L7#,GRJ7#..6FC202309

*8-1.25PX35-35

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-71070iGDJ7#,L7#,GRJ7#..6FC202309

35307FBOLT (FOR STATOR SHAFT)

main90148-60079×10iGDJ7#,L7#,GRJ7#..6FC202309

35314PLATE, FRONT OIL PUMP

main35314-71020iGDJ7#,L7#,GRJ7#..6FC202309

35321GEAR, FRONT OIL PUMP DRIVE

main35321-71010iGDJ7#,L7#,GRJ7#..6FC202309

T=9.977-9.983

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-71010iGDJ7#,L7#,GRJ7#..6FC202309

T=9.977-9.983

35370SHAFT ASSY, STATOR

main35370-71010iGDJ7#,L7#,GRJ7#..6FC202309

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-71002iGDJ7#,L7#,GRJ7#..6FC202309

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030×2iGDJ7#,L7#,GRJ7#..6FC202309
