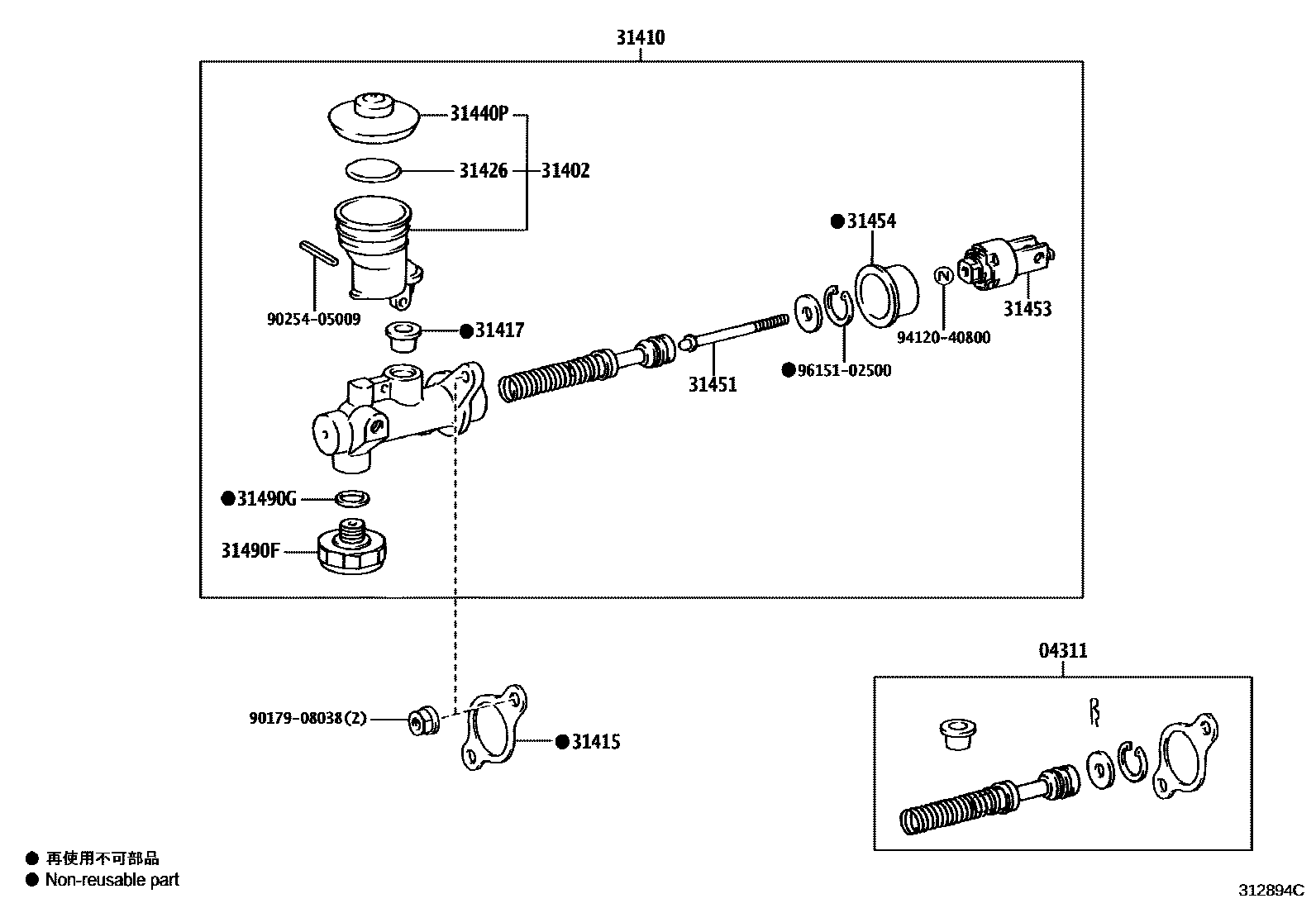

CLUTCH MASTER CYLINDER

0001 1 0002 1 0005 1 0006 1 0011 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-60100iVDJL79..STD;VDJ76,L76,L78..RHD200701-202508

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35030iGDJ76,78,79,L7#..RHD..5F200701-202508

main31402-60070iGRJ79,HZJ7#..RHD200701-202309

31410CYLINDER ASSY, CLUTCH MASTER

main31410-60590iGRJ79,HZJ7#..RHD200701-201806

sub31410-60591

sub90249-08256

main31410-60591iGRJ79,HZJ7#..RHD201806-202309

main31410-60650iVDJ7#..RHD200701-201806

sub31410-60651

sub90249-08256

main31410-60651iVDJ7#,L7#..RHD..(CBU,IV)201806-202508

main31410-60660iGDJ76,78,79,L7#..RHD..5F202410

main31420-60040iGDJ76,78,79..LHD..5F202410

main31420-60050iGRJ7#,HZJ7#..LHD200701-201806

sub31420-60051

sub90249-08256

main31420-60051iGRJ7#,HZJ7#..LHD..5F201806-202409

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iGDJ76,78,79,L7#,GRJ79,HZJ7#..RHD..5F200701-202508

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iGRJ79,HZJ7#,VDJ7#..RHD200701-202508

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGRJ71,78..RHD200701-202508

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iGRJ79,HZJ7#..RHD200701-202309

main47230-20040iVDJL79..STD;VDJ76,L76,L78..RHD200701-202508

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35070iFZJ71,78,79..RHD200701-202508

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iGRJ71,78..RHD200701-201806

main31404-52010iGRJ79,HZJ7#,VDJ7#,L7#..RHD..(CBU,IV)201806-202508

main31453-52010iGDJ76,78,79,L7#..5F202412

31454BOOT, CLUTCH MASTER CYLINDER

main31454-60020iFZJ71,78,79..RHD200701-202508

31490FACCUMULATOR ASSY, MASTER CYLINDER

main31490-12010iGRJ71,78..RHD200701-202309

31490GGASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)

main90430-16005iGRJ71,78..RHD200701-202309

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

9615102500

main96151-02500

16 parts on this diagram · 5 diagrams in section
