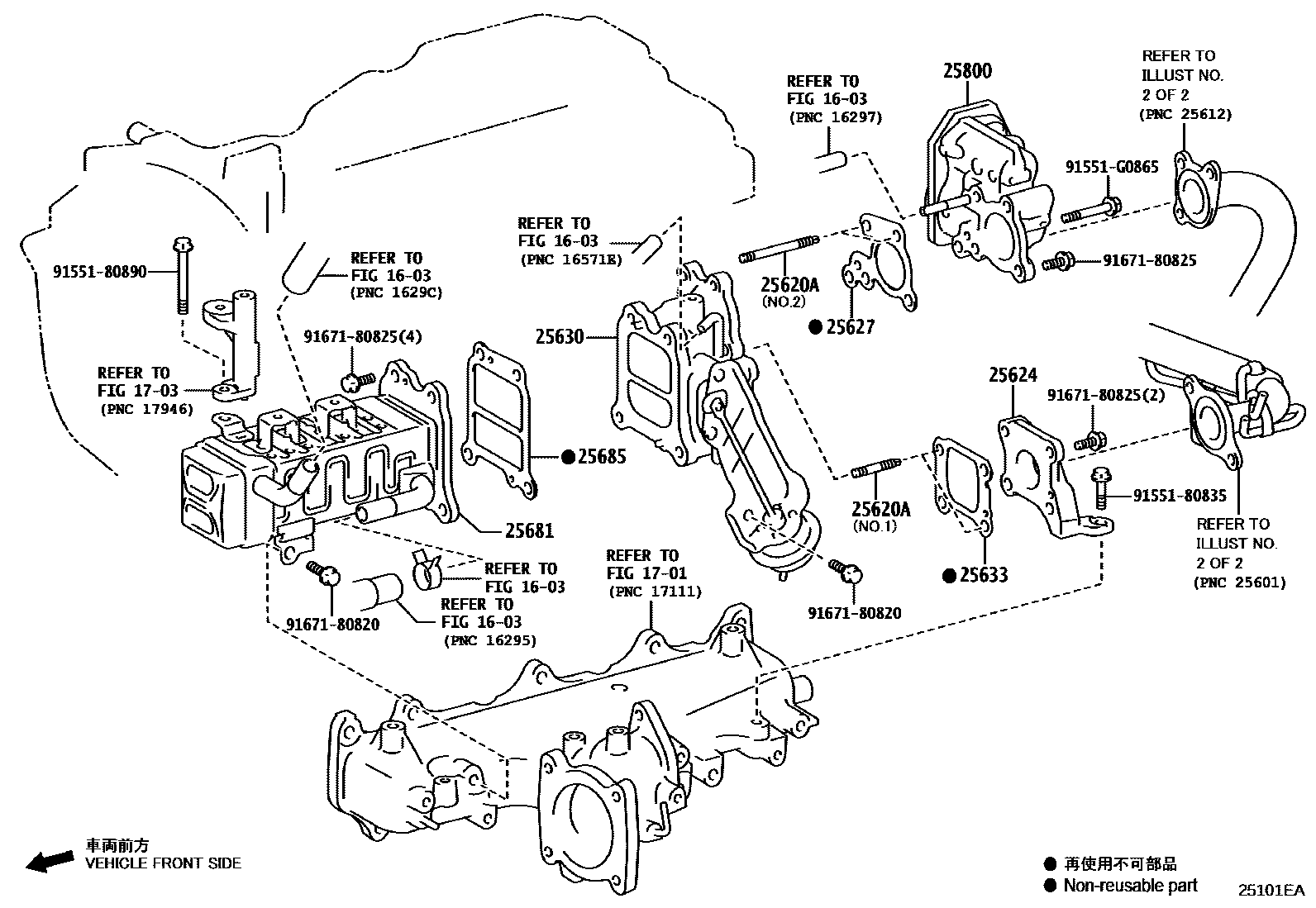

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1EURO 0-2 0004 1EURO 0-2 0005 1 0006 1EXCEPT EURO 5 0011 1EURO 5

1603

1701

1703

25620VALVE ASSY, EGR

main25620-51010i1VDFTV..VDJ7#200701-201108

main25620-51011i1VDFTV..VDJ7#..GCC201709-201908

main25620-17030i1HZ..HZJ76,78,79..RHD202309

SOUTH AFRICA SPEC

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047×4i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),NO.1

main90126-08052×2i1GDFTV..GDJ7#..GCC,GEN202309

NO.1

main90126-08064×4i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

NO.2

25624ADAPTER, EGR VALVE

main25607-35030i1GDFTV..GDJ7#..GCC,GEN202309

main25624-11010×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

main25624-51010i1VDFTV..VDJL76,78;1VDFTV..VDJL79..STD202309-202409

EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

25627GASKET, EGR VALVE

main25627-11050×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

main25627-26020×2i1VDFTV..VDJ79..GEN202309-202508

main25627-30070i1VDFTV..VDJ7#,L7#..ARL..(CBU,IV)201608-202309

NO.1:REFER ILLUST.

main25627-51010i1VDFTV..VDJL76,78;1VDFTV..VDJL79..STD202309-202409

NO.2:REFER ILLUST.

25630VALVE ASSY, EGR, NO.2

main25630-11012×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

main25630-51010i1VDFTV..VDJ7#200701-201108

main25630-51011i1VDFTV..VDJ79..GEN202309-202508

main25630-51020i1VDFTV..VDJ79..IV;1VDFTV..VDJL79..LX202309-202508

25633GASKET, EGR VALVE

main25633-11010×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

main25633-26020i1VDFTV..VDJL76,78;1VDFTV..VDJL79..STD202309-202409

EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

main25633-17020×2i1HZ..HZJ76,78,79..RHD202309

PAKISTAN SPEC

25681COOLER, EGR, NO.1

main25681-0W020×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

25685GASKET, EGR COOLER, NO.1

main25685-11010×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

main25685-51010i1VDFTV..VDJ7#200701-201608

main25685-51020i1VDFTV..VDJ7#,L7#..ARL..(CBU,IV)201608-202309

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-11010×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

main25800-30210i1VDFTV..VDJ7#,L7#..ARL..(CBU,IV)201608-202309

9155180835

main91551-80835

9155180890

main91551-80890

91551G0865

main91551-G0865

9167180820

main91671-80820

9167180825

main91671-80825

17 parts on this diagram · 7 diagrams in section
