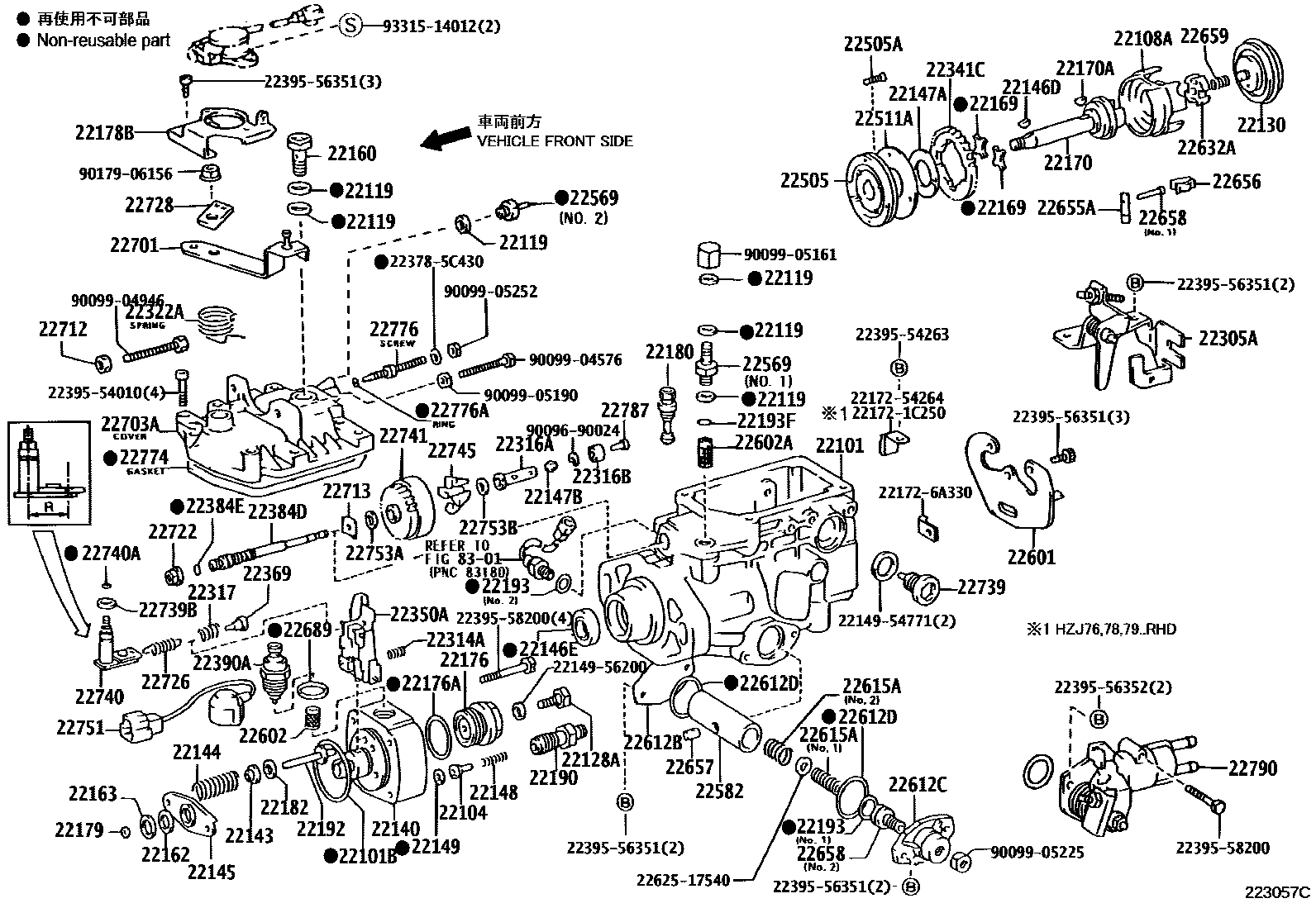

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
HIGH ALTITUDE COMPENSATOR-WITH
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H W/O(TACHOMETER)
HIGH ALTITUDE COMPENSATOR-WITH
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC
COLD AREA SPEC.&SPEED METER-KM/H
COLD AREA SPEC.
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SPEED METER-KM/H W/O(TACHOMETER)
SPEED METER-KM/H
SPEED METER-KM/H
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
22108ARING SUB-ASSY, ROLLER
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC.
COLD AREA SPEC.&SPEED METER-KM/H
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
22119WASHER, AIR BLEEDER NIPPLE
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22178BBRACKET(FOR INJECTION PUMP ASSY)
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
22179SHIM, PLUNGER ADJUSTING
T=3.15
T=1.97
T=2.07
T=2.17
T=2.27
T=2.37
T=2.47
T=2.57
T=2.67
T=2.77
T=2.87
T=3.01
T=3.07
T=3.13
T=2.94
T=3.19
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22190VALVE SUB-ASSY, SNUBBER
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
NO.1
COLD AREA SPEC,NO.3
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.3
HIGH ALTITUDE COMPENSATOR-WITH,NO.3
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.3
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.3
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.3
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.3
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.3
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H W/O(TACHOMETER),NO.3
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH,NO.3
COLD AREA SPEC.,NO.3
COLD AREA SPEC.&SPEED METER-KM/H,NO.3
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.3
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.3
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.3
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
NO.2
COLD AREA SPEC.,NO.2
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
SPEED METER-KM/H,NO.2
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
COLD AREA SPEC,NO.2
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
COLD AREA SPEC.&SPEED METER-KM/H,NO.2
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22305AIDLE-UP SUB-ASSY
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC.&SPEED METER-KM/H
COLD AREA SPEC.
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.80
ID=0.70
ID=0.65
ID=0.85
MARK 23,HIGH ALTITUDE COMPENSATOR-WITH
MARK 23,HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H W/O(TACHOMETER)
MARK 23,COLD AREA SPEC.
MARK 23,COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH
MARK 23,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
MARK 23,HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
MARK 23,COLD AREA SPEC
MARK 23,COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
MARK 23,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
MARK 23,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
MARK 23,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
MARK 23,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
MARK 23,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
MARK 23,COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
MARK 23,COLD AREA SPEC.&SPEED METER-KM/H
ID=0.75
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
22322ASPRING, RETURN
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
22369SEAT, GOVERNOR SPRING
22384DSHAFT, GOVERNOR
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC.&SPEED METER-KM/H
COLD AREA SPEC.
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH
HIGH ALTITUDE COMPENSATOR-WITH
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H W/O(TACHOMETER)
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
BANGLADESH SPEC&BATTERY-85D26R X 2(55AH X 2)&SPEED METER-KM/H 24V
BANGLADESH SPEC&BATTERY-85D26R X 2(55AH X 2)
BANGLADESH SPEC&BATTERY-80D26R X 2&SPEED METER-KM/H 24V
CKD PACKAGE(BANGLADESH)
CKD PACKAGE(BANGLADESH)&SPEED METER-KM/H (24V)
CKD PACKAGE(BANGLADESH)&SPEED METER-KM/H 24V
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22569SCREW, OVERFLOW
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.1
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.1
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.1
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.1
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.1
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.1
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
22582PISTON ASSY, TIMER
22601BRACKET SUB-ASSY, IDLE UP
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC.&SPEED METER-KM/H
COLD AREA SPEC.
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
22615ASPRING, TIMER OUTER
K=0.16,L=32.3,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.16,L=32.3,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.16,L=32.3,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.16,L=32.3,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.16,L=32.3,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.16,L=32.3,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=1.7,L=27.9
K=1.96,NO.1
K=1.77,NO.1
K=0.15,L=32.5,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.15,L=32.5,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.15,L=32.5,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.15,L=32.5,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.15,L=32.5,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.15,L=32.5,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.17,L=32.2,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.17,L=32.2,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.17,L=32.2,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.17,L=32.2,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.17,L=32.2,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.17,L=32.2,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.19,NO.1
K=0.18,L=33.3,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.18,L=33.3,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.18,L=33.3,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.18,L=33.3,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.18,L=33.3,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.18,L=33.3,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.19,L=33.1,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.19,L=33.1,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.19,L=33.1,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.19,L=33.1,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.19,L=33.1,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.19,L=33.1,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.20,L=32.9,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.20,L=32.9,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.20,L=32.9,PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.20,L=32.9,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.20,L=32.9,GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
K=0.20,L=32.9,SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
K=0.16,L=34.6
K=0.17,L=34.4
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.1
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.1
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.1
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.1
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.1
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.1
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH,NO.2
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,NO.2
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.1
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
MARK 383
MARK 384
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,MARK 693
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,MARK 693
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,MARK 693
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,MARK 693
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH,MARK 693
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,MARK 693
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,MARK 694
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,MARK 694
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH,MARK 694
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,MARK 694
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,MARK 694
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,MARK 694
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,MARK 695
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,MARK 695
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,MARK 695
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H,MARK 695
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH,MARK 695
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH,MARK 695
MARK 247
22703ACOVER SUB-ASSY, GOVERNOR
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC.&SPEED METER-KM/H
COLD AREA SPEC.
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH
HIGH ALTITUDE COMPENSATOR-WITH
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H W/O(TACHOMETER)
COLD AREA SPEC
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22722NUT, GOVERNOR SHAFT ROCK
22726SPRING, SPEED CONTROL
22728GUIDE, RETURN SPRING
22739BOLT, GOVERNOR LINK SUPPORT
22739BWASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
R=20.0
R=17.5
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC.&SPEED METER-KM/H
COLD AREA SPEC.
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H W/O(TACHOMETER)
SPEED METER-KM/H W/O(TACHOMETER)
SPEED METER-KM/H
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH
HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
SPEED METER-KM/H
COLD AREA SPEC.
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC.&SPEED METER-KM/H
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
CKD PACKAGE(BANGLADESH)
CKD PACKAGE(BANGLADESH)&SPEED METER-KM/H 24V
CKD PACKAGE(BANGLADESH)&SPEED METER-KM/H (24V)
BANGLADESH SPEC&BATTERY-80D26R X 2&SPEED METER-KM/H 24V
BANGLADESH SPEC&BATTERY-85D26R X 2(55AH X 2)&SPEED METER-KM/H 24V
BANGLADESH SPEC&BATTERY-85D26R X 2(55AH X 2)
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22787PLUG, GOVERNOR SLEEVE
L=3.3
L=3.4
L=3.5
L=3.6
L=3.7
L=3.8
L=3.9
L=4.0
L=4.1
L=3.0
L=3.1
L=3.2
L=4.2
22790COVER SUB-ASSY, TIMER
COLD AREA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
GHANA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
COLD AREA SPEC.&SPEED METER-KM/H
COLD AREA SPEC.
COLD AREA SPEC.&HIGH ALTITUDE COMPENSATOR-WITH
PAKISTAN SPEC&HIGH ALTITUDE COMPENSATOR-WITH
8301
2214954771GASKET, DELIVERY VALVE
main22149-54771
2214956200GASKET, DELIVERY VALVE
main22149-56200
221721C250CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-1C250
2217254264CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54264
221726A330CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-6A330
223785C430WASHER, DRAIN SCREW
main22378-5C430
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239554263BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54263
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56352
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2262517540WASHER, TIMER SENSOR ADJUSTING
main22625-17540
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009905161
main90099-05161
9009905190
main90099-05190
9009905225
main90099-05225
9009905252
main90099-05252
9017906156
main90179-06156
9331514012
main93315-14012
107 parts on this diagram · 5 diagrams in section
