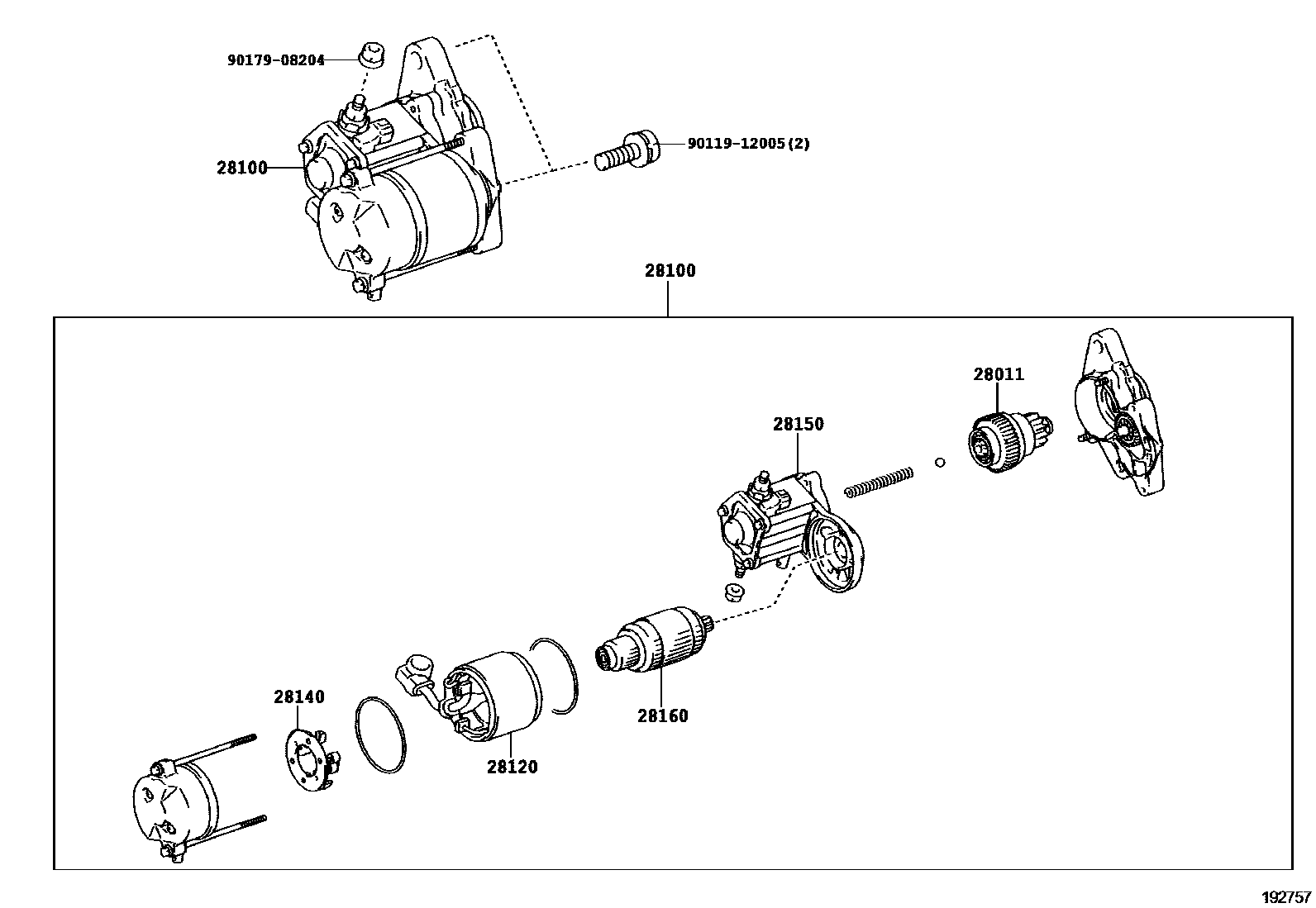

STARTER

0001 112V 1.4KW 0002 112V 1.4KW 0003 112V 3.0KW 0004 112V 2.5KW,24V 4.5KW 0005 112V 2.7KW 0006 112V 3.0KW 0007 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-17090i1HZ..HZJ7#200701-201608

main28011-51060i1VDFTV..VDJ79..RHD;1VDFTV..VDJL79..LX202309-202508

main28011-66020i1GRFE..GRJ71,78..RHD200701-201208

main28011-17020i1HZ..HZJ71,79..RHD..(PIC,SOT)201608-201909

CKD PACKAGE(BANGLADESH)

main28011-54480i1HZ..HZJ76,78,79..LHD..CBU202309

COLD AREA SPEC&FUEL HEATER-WITH(PTC HEATER)

28100STARTER ASSY

main28100-11240i1GDFTV..GDJ7#,L7#202309

12V 2.0KW

main28100-17090i1HZ..HZJ7#200701-200907

12V 2.5KW

main28100-17091i1HZ..HZJ7#200908-201608

12V 2.5KW

main28100-31141i1GRFE..GRJ7#202309

12V 1.4KW

main28100-51060i1VDFTV..VDJ7#200701-201208

12V 2.7KW

sub28101-51040

main28100-51090i1VDFTV..VDJ7#201208-201511

12V 3.0KW

main28100-51100i1VDFTV..VDJ79..GCC;1VDFTV..VDJL79..STD;1VDFTV..VDJ76,78,L76,L78202309-202409

12V 3.0KW

main28100-66040i1FZFE..FZJ7#200701-200907

12V 1.4KW

main28100-17050i1HZ..HZJ71,79..RHD..(PIC,SOT)200701-200907

24V 4.5KW,CKD PACKAGE(BANGLADESH)

main28100-17051i1HZ..HZJ71,79..RHD..(PIC,SOT)201608-201909

24V 4.5KW,CKD PACKAGE(BANGLADESH)

main28100-17080i1HZ..HZJ76,78,79..LHD..GEN..CBU200701-200907

12V 3.0KW,COLD AREA SPEC.

main28100-17081i1HZ..HZJ76,78,79..LHD..GEN..CBU201608-202309

12V 3.0KW,COLD AREA SPEC

28120YOKE ASSY, STARTER

main28120-47040i1HZ..HZJ7#..GEN201608-202309

main28120-51060i1VDFTV..VDJ7#,L7#..CBU,IV201608-202309

main28120-56081i1HZ..HZJ7#200701-200908

main28120-66040i1GRFE..GRJ7#201608-202309

main28120-17070i1HZ..HZJ76,78,79..LHD..GEN..CBU201608-202309

COLD AREA SPEC

main28120-56071i1HZ..HZJ71,79..RHD..(PIC,SOT)200701-200908

CKD PACKAGE(BANGLADESH)

main28120-77090i1HZ..HZJ71,79..RHD..(PIC,SOT)201909-202309

BATTERY-85D26R X 2(55AH X 2)

28140HOLDER ASSY, STARTER BRUSH

main28140-35060i1GRFE..GRJ7#202309

main28140-51060i1VDFTV..VDJ79..RHD;1VDFTV..VDJL79..LX202309-202508

main28140-76070i1FZFE..FZJ7#200701-200907

main28140-77090i1HZ..HZJ7#202309

main28140-67090i1HZ..HZJ76,78,79..LHD..GEN..CBU201608-202309

COLD AREA SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-17090i1HZ..HZJ7#202309

main28150-31110i1GRFE..GRJ7#201608-202309

main28150-51060i1VDFTV..VDJ79..RHD;1VDFTV..VDJL79..LX202309-202508

main28150-66041i1FZFE..FZJ7#200701-200907

main28150-17050i1HZ..HZJ71,79..RHD..(PIC,SOT)201608-201909

CKD PACKAGE(BANGLADESH)

main28150-17080i1HZ..HZJ76,78,79..LHD..GEN..CBU200701-201608

COLD AREA SPEC.

28160ARMATURE ASSY, STARTER

main28160-51060i1VDFTV..VDJ7#200701-201608

main28160-54140i1HZ..HZJ7#202309

main28160-74070i1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD200701-201608

main28160-67090i1HZ..HZJ76,78,79..LHD..CBU202309

COLD AREA SPEC&FUEL HEATER-WITH(PTC HEATER)

main28160-77090i1HZ..HZJ71,79..RHD..(PIC,SOT)202309

BANGLADESH SPEC&BATTERY-80D26R X 2

9011912005

main90119-12005

9017908204

main90179-08204

8 parts on this diagram · 7 diagrams in section
