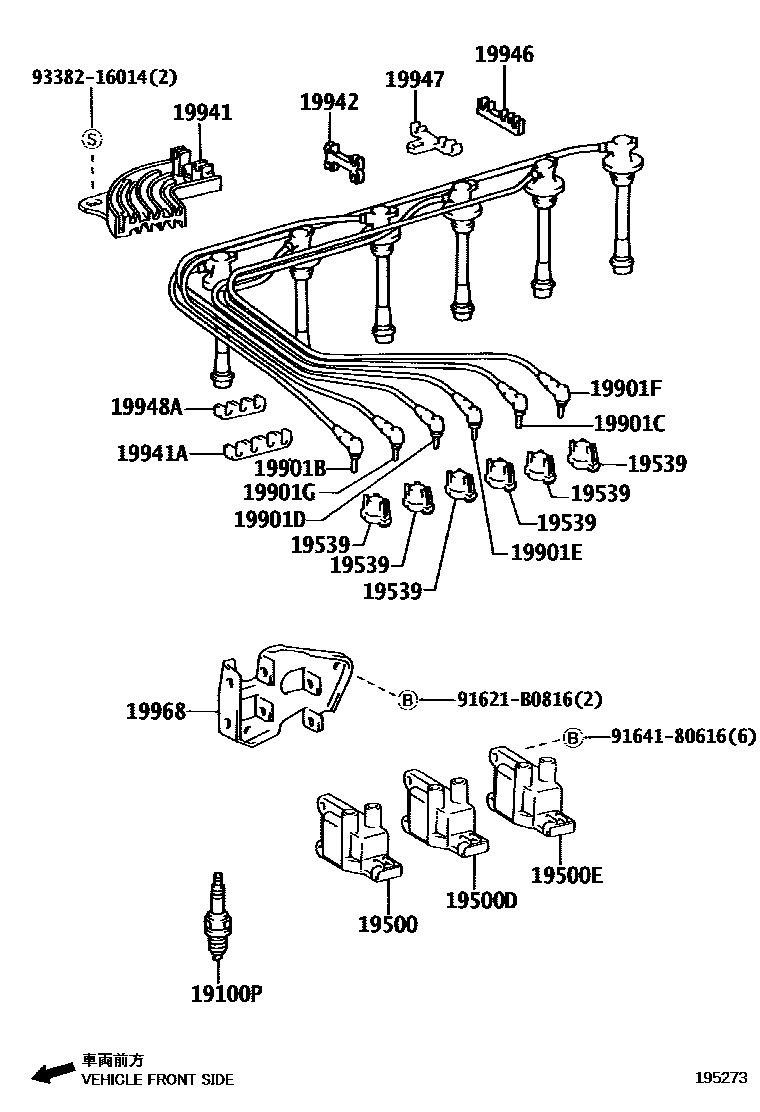

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19100PPLUG, SPARK

main90919-01192i1FZFE..FZJ7#200701-200907

K16TR11

main90919-01235i1GRFE..GRJ7#200907-202212

K20HR-U11

sub90919-01236

main90919-01236i1GRFE..GRJ7#201608-202309

LFR6C-11

sub90919-01235

19500COIL ASSY, IGNITION

main90919-02231i1FZFE..FZJ7#200701-200907

main90919-02248i1GRFE..GRJ7#200907-201110

sub90919-02260

main90919-02260i1GRFE..GRJ71,78..RHD201110-202309

19500DCOIL, IGNITION, NO.1

main90919-02232i1FZFE..FZJ7#200701-200907

19500ECOIL, IGNITION, NO.2

main90919-02233i1FZFE..FZJ7#200701-200907

19539HOLDER, RESISTIVE CODE, NO.4

main19539-16010i1FZFE..FZJ7#200701-200907

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15530i1FZFE..FZJ7#200701-200907

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15531i1FZFE..FZJ7#200701-200907

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15532i1FZFE..FZJ7#200701-200907

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15533i1FZFE..FZJ7#200701-200907

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-15534i1FZFE..FZJ7#200701-200907

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-15535i1FZFE..FZJ7#200701-200907

19941CLAMP, RESISTIVE CORD, NO.1

main19941-66010i1FZFE..FZJ7#200701-200907

19941ACLAMP(FOR RESISTIVE CORD)

main90464-00555i1FZFE..FZJ7#200701-200907

19942CLAMP, RESISTIVE CORD, NO.2

main19942-66010i1FZFE..FZJ7#200701-200907

19946CLAMP, RESISTIVE CORD, NO.3

main19946-66010i1FZFE..FZJ7#200701-200907

19947CLAMP, RESISTIVE CORD, NO.4

main19947-66010i1FZFE..FZJ7#200701-200907

19948ACLAMP, CORD, NO.5

main90464-00556i1FZFE..FZJ7#200701-200907

19968BRACKET, IGNITION COIL

main19968-66010i1FZFE..FZJ7#200701-200907

91621B0816

main91621-B0816

9164180616

main91641-80616

9338216014

main93382-16014

21 parts on this diagram · 5 diagrams in section
