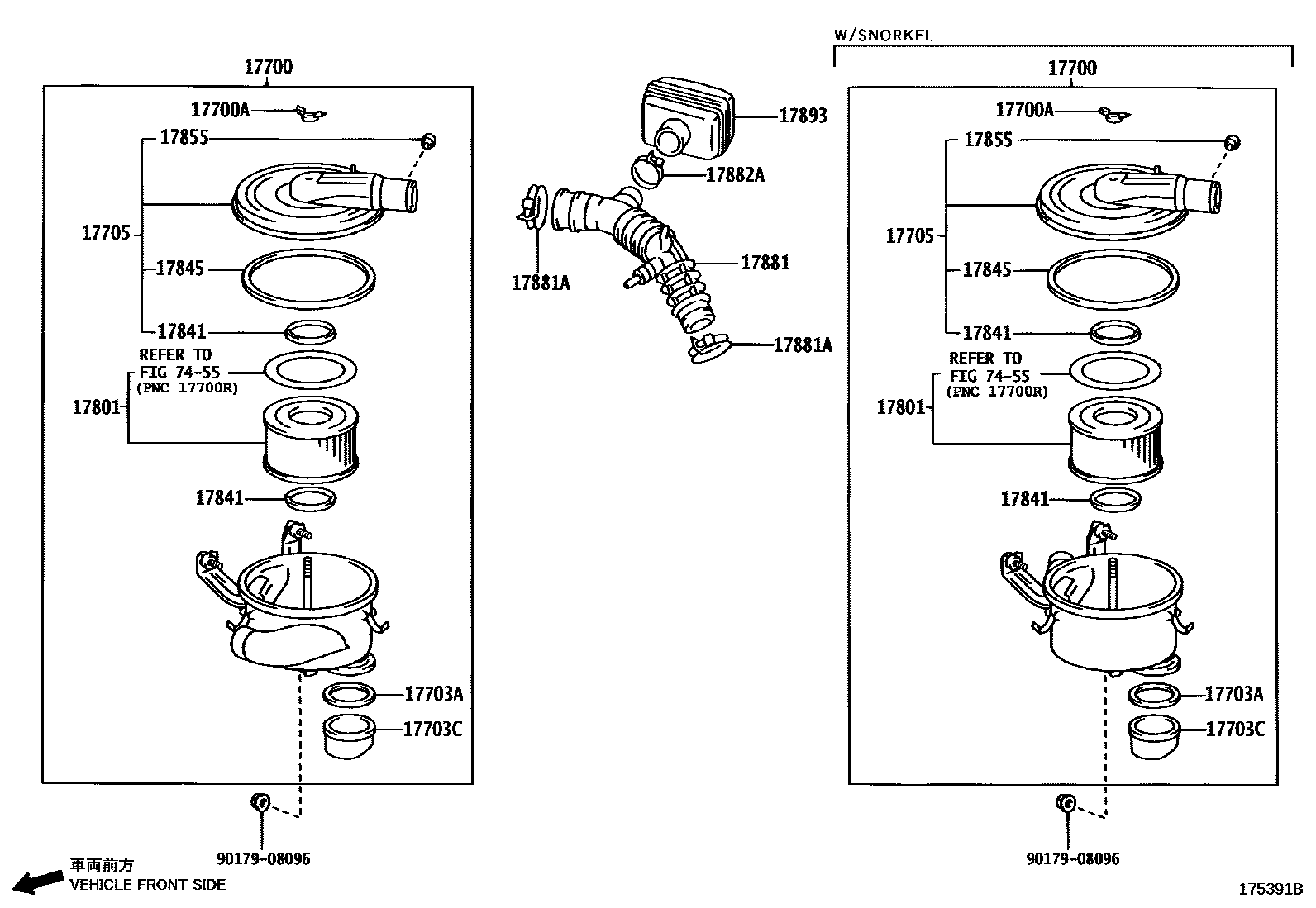

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1WITH SCHNORKEL 0008 1WITHOUT SCHNORKEL 0009 1WITH SCHNORKEL 0010 1WITHOUT SCHNORKEL 0011 1 0012 1 0013 1 0014 1WITH SCHNORKEL 0015 1WITHOUT SCHNORKEL 0016 1 0017 1

17700CLEANER ASSY, AIR

main17700-11A50supersedes 17700-11A40i1GDFTV..GDJ76,79,L7#..ARL202309

AIR CLEANER-SQUARE & SCHNORKEL

main17700-31541i1GRFE..GRJ7#200907-201008

main17700-31542i1GRFE..GRJ71,78..RHD201009-201208

main17700-51030i1VDFTV..VDJ7#200701-201511

main17700-51031i1VDFTV..VDJ7#201512-201608

sub91631-60825

main17700-51032i1VDFTV..VDJ79..RHD;1VDFTV..VDJL79..LX202309-202508

main17700-17360supersedes 17700-17350i1HZ..HZJ7#..GEN201608-202309

AIR CLEANER-CYCRON & SCHNORKEL

main17700-17380supersedes 17700-17370i1HZ..HZJ7#202309

AIR CLEANER-SQUARE & SCHNORKEL

main17700-31A50supersedes 17700-31A40i1GRFE..GRJ7#201608-202309

AIR CLEANER-SQUARE & SCHNORKEL

main17700-31C30supersedes 17700-31C20i1GRFE..GRJ7#202309

AIR CLEANER-SQUARE & SCHNORKEL

main17700-66220supersedes 17700-66210i1FZFE..FZJ7#200701-200907

AIR CLEANER-CYCRON & SCHNORKEL

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i1FZFE..FZJ7#200701-200907

17703AGASKET(FOR BOTTOM AIR CLEANER FILTER CASE)

main17845-68030i1HZ..HZJ7#200701-201608

17703CCAP SUB-ASSY, DUST

main17703-17010i1FZFE..FZJ7#200701-200907

17705CAP SUB-ASSY, AIR CLEANER

main17705-11660i1GDFTV..GDJ7#,L7#202309

main17705-17080i1HZ..HZJ7#200701-201608

main17705-17200i1HZ..HZJ7#202309

main17705-31090i1GRFE..GRJ7#200907-201008

sub17705-0P010

main17705-31091i1GRFE..GRJ71,78..RHD201009-201208

main17705-31450i1GRFE..GRJ7#201408-201608

main17705-31570i1GRFE..GRJ7#202309

main17705-51010i1VDFTV..VDJ79..GCC;1VDFTV..VDJL79..STD;1VDFTV..VDJ76,78,L76,L78202309-202409

main17705-66141i1FZFE..FZJ7#200701-200907

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31090i1GRFE..GRJ71,78..RHD200907-201208

main17801-51010i1GRFE..GRJ7#201608-202309

main17801-61030i1FZFE..FZJ7#200701-200907

main17801-70060i1G#..GDJ7#,L7#,GRJ7#202309

17841GASKET, FILTER ELEMENT

main17841-68010×2i1FZFE..FZJ7#200701-200907

17845GASKET, AIR CLEANER CAP

main17845-68010i1HZ..HZJ76,78,79..GCC201608-201612

sub17845-61011

17855GASKET, AIR INLET DUCT, NO.1

main17855-67010i1FZFE..FZJ7#200701-200907

17881HOSE, AIR CLEANER, NO.1

main17880-31530i1GRFE..GRJ7#202309

main17881-11680i1GDFTV..GDJ7#,L7#202309

main17881-17120i1HZ..HZJ76,78,79..GCC201608-201612

main17881-31390i1GRFE..GRJ7#201608-202309

main17881-51020i1VDFTV..VDJ79..GCC;1VDFTV..VDJL79..STD;1VDFTV..VDJ76,78,L76,L78202309-202409

main17881-66160i1FZFE..FZJ7#200701-200907

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800i1GDFTV..GDJ7#,L7#202309

main96111-10830i1GRFE..GRJ7#201608-202309

main96111-10850i1FZFE..FZJ7#200701-200907

THROTTLE BODY SIDE

main96111-10900i1FZFE..FZJ7#200701-200907

AIR CLEANER SIDE

main96111-11000i1VDFTV..VDJ7#,L7#..CBU,IV201608-202309

17882HOSE, AIR CLEANER, NO.2

main17882-17040i1HZ..HZJ7#202309

main17882-31101i1GRFE..GRJ7#201107-201111

AIR CLEANER-SQUARE & SCHNORKEL

sub17882-31140

main17882-31120i1GRFE..GRJ7#201408-201608

main17882-31110supersedes 17882-31100i1GRFE..GRJ7#200907-201111

AIR CLEANER-ON-HEAD TYPE & SCHNORKEL

main17882-31150supersedes 17882-31140i1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD201112-201408

AIR CLEANER-ON-HEAD TYPE & SCHNORKEL

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31020i1GRFE..GRJ7#201408-201608

main96111-10560i1FZFE..FZJ7#200701-200907

main96111-11060i1VDFTV..VDJ7#,L7#..CBU,IV201608-202309

main96111-10880supersedes 96111-11090i1GRFE..GRJ71,78..RHD200907-201208

AIR CLEANER-ON-HEAD TYPE & SCHNORKEL,NO.1

17893RESONATOR, INTAKE AIR

main17893-17010i1HZ..HZJ7#200701-201608

main17893-66010i1FZFE..FZJ7#200701-200907

7455

9017908096

main90179-08096

16 parts on this diagram · 17 diagrams in section
