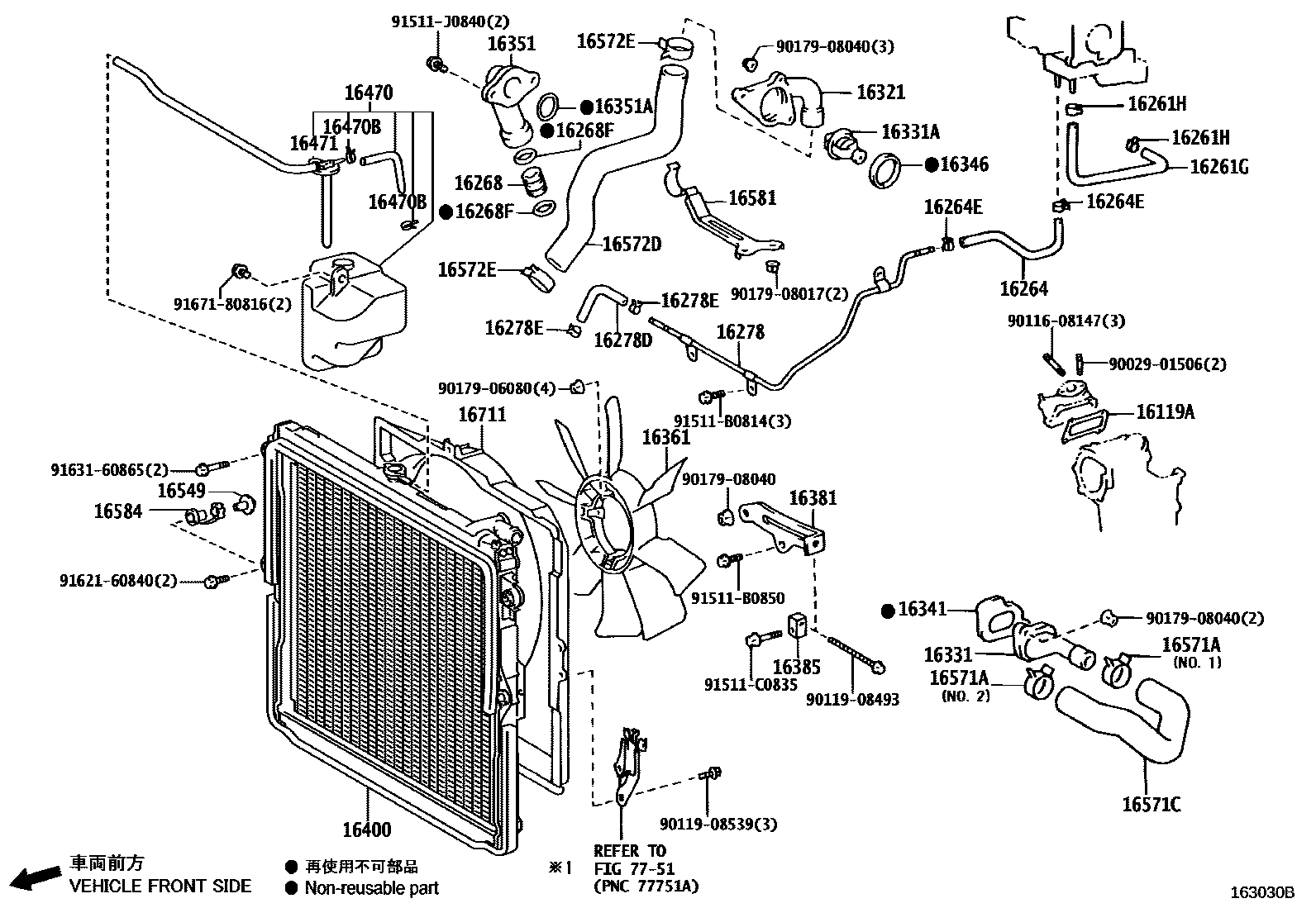

RADIATOR & WATER OUTLET
16119AGASKET, THERMOSTAT GUIDE
16261HOSE, WATER BY-PASS
TYPE A
TYPE B
COLD AREA SPEC.
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
16264HOSE, WATER BY-PASS, NO.2
YEMEN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
SOUTH AFRICA SPEC&HIGH ALTITUDE COMPENSATOR-WITH&SPEED METER-KM/H
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1,TYPE B:REF ILL.
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
HEATER-WITH(FRONT & REAR & ALUMI CORE)
16278DHOSE, WATER BY-PASS
*H,L=160
*H,L=90
16278ECLIP(FOR WATER BY-PASS HOSE)
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 76-90
*WAX 82-95
*WAX 82-95
16341GASKET, WATER OUTLET
16346GASKET, THERMOSTAT
16351OUTLET, WATER BY-PASS
16351ARING, O(FOR WATER BY-PASS OUTLET)
16361FAN
16381BAR, FAN BELT ADJUSTING
SPECIAL EDITION
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
16470TANK ASSY, RADIATOR RESERVE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16549COLLAR, RADIATOR SUPPORT, NO.2
NO.1
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571CHOSE, RADIATOR, NO.1
16572HOSE, RADIATOR, OUTLET
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16581CLAMP, HOSE(FOR WATER HOSE)
16584INSULATOR, RADIATOR MOUNTING
16711SHROUD, FAN
7751
9002901506
main90029-01506
9011608147
main90116-08147
9011908493
main90119-08493
9011908539
main90119-08539
9017906080
main90179-06080
9017908017
main90179-08017
9017908040
main90179-08040
91511B0814
main91511-B0814
91511B0850
main91511-B0850
91511C0835
main91511-C0835
91511J0840
main91511-J0840
9162160840
main91621-60840
9163160865
main91631-60865
9167180816
main91671-80816
50 parts on this diagram · 16 diagrams in section
