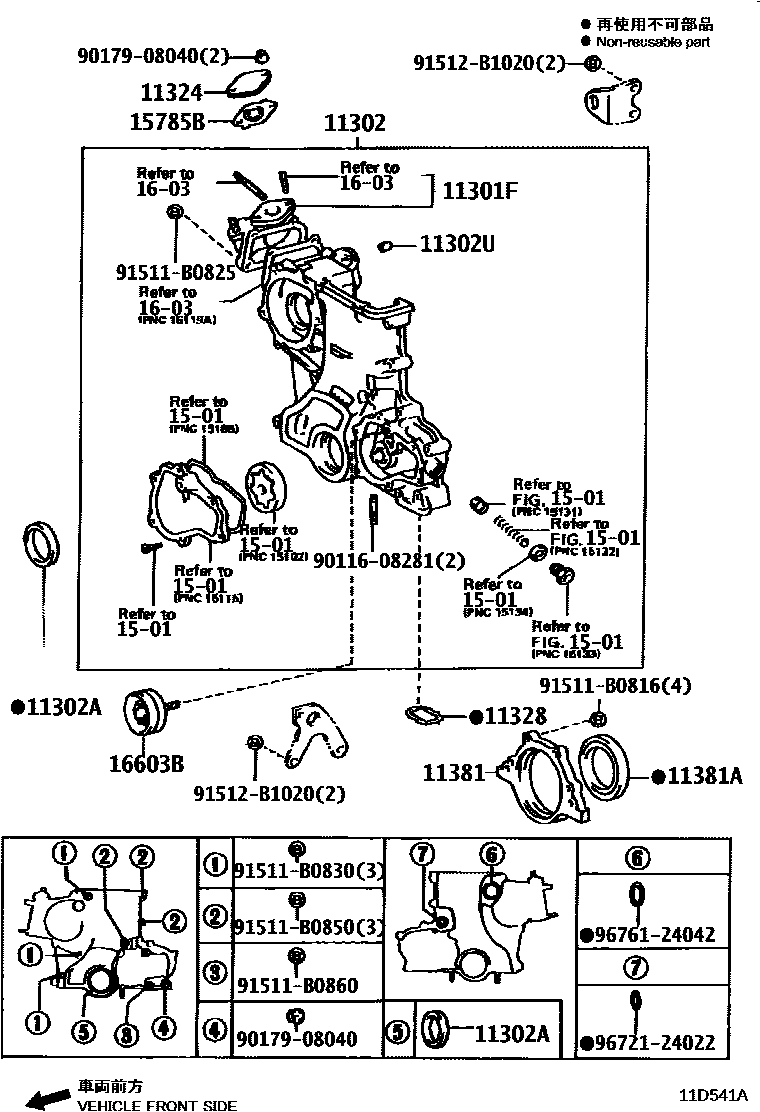

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1TIMING CHAIN COVER FRONT 0006 1TIMING CHAIN COVER REAR

11301CASE SUB-ASSY, TIMING GEAR

main11301-17030i1HZ..HZJ7#..GEN201608-202309

main11301-51011i1VDFTV..VDJ7#,L7#..CBU,IV201608-202309

11301FPLATE, WATER PUMP THERMOSTAT GUIDE

main16127-66020i1FZFE..FZJ7#200701-200907

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31013i1GRFE..GRJ79;1GRFE..GRJ71,76,78..LHD200907-201508

main11310-31014i1GRFE..GRJ7#201509-201608

main11310-51011i1VDFTV..VDJ7#200701-201112

main11310-51012i1VDFTV..VDJ7#201112-201608

main11310-66020i1FZFE..FZJ7#200701-200907

main11321-35040×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-52022i1FZFE..FZJ7#200701-200907

main90311-52024i1VDFTV..VDJ7#200701-201608

main90311-58006i1HZ..HZJ76,78,79..GCC201608-201612

NO.1

main90311-58007i1HZ..HZJ7#202309

NO.2

11302UPIN, RING

main90253-11021×2i1FZFE..FZJ7#200701-200907

11324PLATE, TIMING CHAIN COVER

main11324-11010×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

main11324-31020i1GRFE..GRJ7#202309

main11324-51010i1VDFTV..VDJ7#,L7#..CBU,IV201608-202309

main11324-66010i1FZFE..FZJ71,76,78..GEN200701-200907

HEATER-W(FRONT & REAR)

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-11070×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU202410-202509

UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)

main11328-17030i1HZ..HZJ7#200701-201608

main11328-31030i1GRFE..GRJ7#202309

main11328-43040i1HZ..HZJ7#202309

main11328-51020i1VDFTV..VDJ7#,L7#..CBU,IV201608-202309

main11328-66020i1FZFE..FZJ7#200701-200907

11381RETAINER, ENGINE REAR OIL SEAL

main11381-11010i1GDFTV..GDJ7#;1GDFTV..GDJL7#..6FC202309

main11381-17010i1HZ..HZJ76,78,79..GCC201608-201612

main11381-31010i1GRFE..GRJ7#202309

main11381-51020i1VDFTV..VDJ79..GCC;1VDFTV..VDJL79..STD;1VDFTV..VDJ76,78,L76,L78202309-202409

main11381-66021i1FZFE..FZJ7#200701-200907

11381ASEAL, ENGINE REAR OIL

main90311-95008i1HZ..HZJ7#202309

main90311-95015i1GDFTV..GDJ7#;1GDFTV..GDJL7#..6FC202309

main90311-99009i1FZFE..FZJ7#200701-200907

main90311-99010i1GRFE..GRJ71,78..RHD200907-201208

main90311-99014i1VDFTV..VDJ79..GCC;1VDFTV..VDJL79..STD;1VDFTV..VDJ76,78,L76,L78202309-202409

1501

15785BGASKET, OIL COOLER

main15785-66010i1FZFE..FZJ71,76,78..GEN200701-200907

HEATER-W(FRONT & REAR)

1603

16603BPULLEY SUB-ASSY, IDLER

main16603-51010i1VDFTV..VDJ79..GCC;1VDFTV..VDJL79..STD;1VDFTV..VDJ76,78,L76,L78202309-202409

main16603-66010i1FZFE..FZJ7#200701-200907

9011608281

main90116-08281

9017908040

main90179-08040

91511B0816

main91511-B0816

91511B0825

main91511-B0825

91511B0830

main91511-B0830

91511B0850

main91511-B0850

91511B0860

main91511-B0860

91512B1020

main91512-B1020

9672124022

main96721-24022

9676124042

main96761-24042

23 parts on this diagram · 6 diagrams in section
