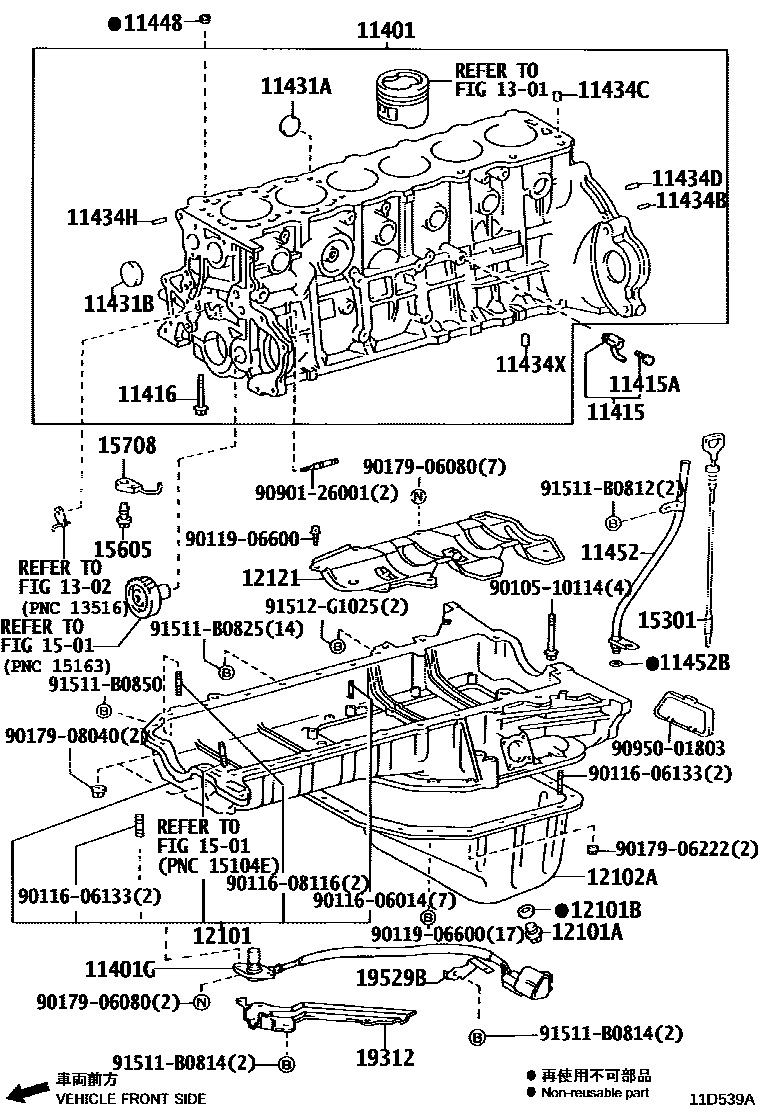

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
HEATER-WITH(FRONT & REAR & ALUMI CORE)
11401GSENSOR, CRANK POSITION
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
NO.1
NO.2
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=23,OD=8
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=15,OD=8
L=15,OD=8
L=18,OD=8
L=10.5,OD=15
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=11,OD=6,UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
11434HPIN, RING (FOR TIMING BELT COVER SET)
11434XPIN, RING(FOR CHAIN CACE)
11448ORIFICE, CYLINDER BLOCK OIL
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
12101BGASKET(FOR OIL PAN DRAIN PLUG)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
1301
1302
1501
15301GAGE SUB-ASSY, OIL LEVEL
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
15605VALVE SUB-ASSY, OIL CHECK
15708NOZZLE SUB-ASSY, OIL, NO.1
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
19312PROTECTOR, CRANK POSITION SENSOR
19529BCLAMP
9010510114
main90105-10114
9011606014
main90116-06014
9011606133
main90116-06133
9011608116
main90116-08116
9011906600
main90119-06600
9017906080
main90179-06080
9017906222
main90179-06222
9017908040
main90179-08040
9090126001
main90901-26001
9095001803
main90950-01803
91511B0812
main91511-B0812
91511B0814
main91511-B0814
91511B0825
main91511-B0825
91511B0850
main91511-B0850
91512G1025
main91512-G1025
43 parts on this diagram · 7 diagrams in section
