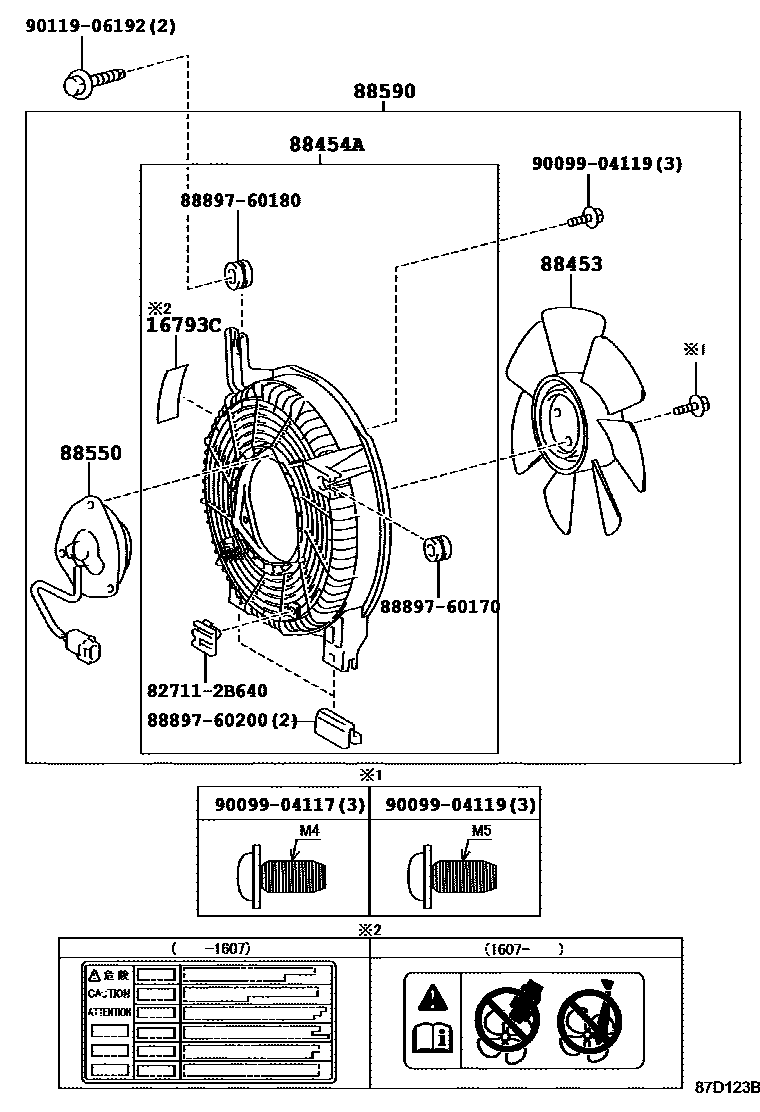

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1W(CONDENSER FAN) 0002 1FRONT(Q/J & W/O(REAR)) 0004 1FRONT(B/J & W/O(REAR)) 0005 1FRONT(Q/J & W/O(REAR)) 0006 1FRONT(Q/J & W(RR AIC)) 0008 1FRONT(B/J & W(RR AIC)) 0010 1FRONT(Q/J & W(C/B)) 0012 1FRONT(Q/J & W(C/B)) 0013 1FRONT(Q/J(SCX) & W/O(REAR)) 0014 1FRONT(Q/J & W/O(REAR)) 0016 1FRONT(B/J & W/O(REAR)) 0018 1FRONT(Q/J & W/O(REAR)) 0019 1FRONT(Q/J & *COS) 0020 1FRONT(Q/J & W(RR AIC)) 0022 1FRONT(B/J & W(RR AIC)) 0024 1FRONT(Q/J & W(C/B)) 0026 1FRONT(B/J & W(C/B)) 0028 1FRONT(Q/J & *COS & W(C/B)) 0029 1FRONT(Q/J(SCX) & W/O(REAR)) 0030 1FRONT(Q/J & W/O(REAR)) 0032 1FRONT(B/J & W/O(REAR)) 0034 1FRONT(Q/J(SCX) & W/O(REAR)) 0035 1FRONT(Q/J & W(RR AIC)) 0037 1FRONT(B/J & W(RR AIC)) 0039 1FRONT(Q/J & W(C/B)) 0041 1FRONT(B/J & W(C/B)) 0043 1FRONT(Q/J & W/O(REAR)) 0044 1FRONT(B/J & W/O(REAR)) 0045 1FRONT(Q/J(SCX) & W/O(REAR)) 0046 1FRONT(Q/J & W(RR AIC)) 0047 1FRONT(B/J & W(RR AIC)) 0048 1FRONT(Q/J & W(C/B)) 0049 1FRONT(B/J & W(C/B)) 0050 1FRONT 0051 1FRONT(W(REAR *AIC)) 0052 1REAR(W/O(REAR *AIC) & W(COOL 0053 1REAR(W(REAR *AIC) & W(COOL BO0054 1REAR(W(REAR *AIC) & W/O(COOL

16793CLABEL, COOLING FAN CAUTION

main16793-28020i1GRFE..GRJ150;2TRFE..TRJ150..LHD200908-201201

AIR CONDITIONER-DUAL(MANUAL)

sub16793-36040

main16793-31070i1GRFE..GRJ150..GCC;5LE,2TRFE..LJ150,TRJ150201607

AIR CONDITIONER-DUAL(MANUAL)

main16793-38010i1GRFE..GRJ150..GCC;5LE,2TRFE..LJ150,TRJ150201506-201607

AIR CONDITIONER-DUAL(MANUAL)

88453FAN, COOLING (FOR CONDENSER)

main88453-60030iKDJ150;GDJ150,GRJ150..ARL201506

AIR CONDITIONER-DUAL(MANUAL)

main88453-60010iTRJ150201308-201506

AIR CONDITIONER-DUAL(MANUAL)

88454ASHROUD, FAN

main88454-60070iKDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201201

AIR CONDITIONER-DUAL(MANUAL)

main88454-60071iKDJ150;GDJ150,GRJ150..ARL201506

AIR CONDITIONER-DUAL(MANUAL)

main88454-60060iTRJ150..RHD200908-201110

AIR CONDITIONER-DUAL(MANUAL)

main88454-60061iTRJ150201201-201308

AIR CONDITIONER-DUAL(MANUAL)

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-34010iKDJ150;GDJ150,GRJ150..ARL201506

AIR CONDITIONER-DUAL(MANUAL)

main88550-12160iTRJ150201506

AIR CONDITIONER-DUAL(MANUAL)

88590BLOWER ASSY, W/SHROUD

main88590-60100iKDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201112

AIR CONDITIONER-DUAL(MANUAL)

main88590-60101iKDJ150;GRJ150..ARL201308-201506

AIR CONDITIONER-DUAL(MANUAL)

main88590-60090iTRJ150..RHD200908-201110

AIR CONDITIONER-DUAL(MANUAL)

main88590-60091iTRJ150201506

AIR CONDITIONER-DUAL(MANUAL)

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8889760170VALVE, COOLER MAGNET

main88897-60170

8889760180VALVE, COOLER MAGNET

main88897-60180

8889760200VALVE, COOLER MAGNET

main88897-60200

9009904117

main90099-04117

9009904119

main90099-04119

9011906192

main90119-06192

12 parts on this diagram · 38 diagrams in section
