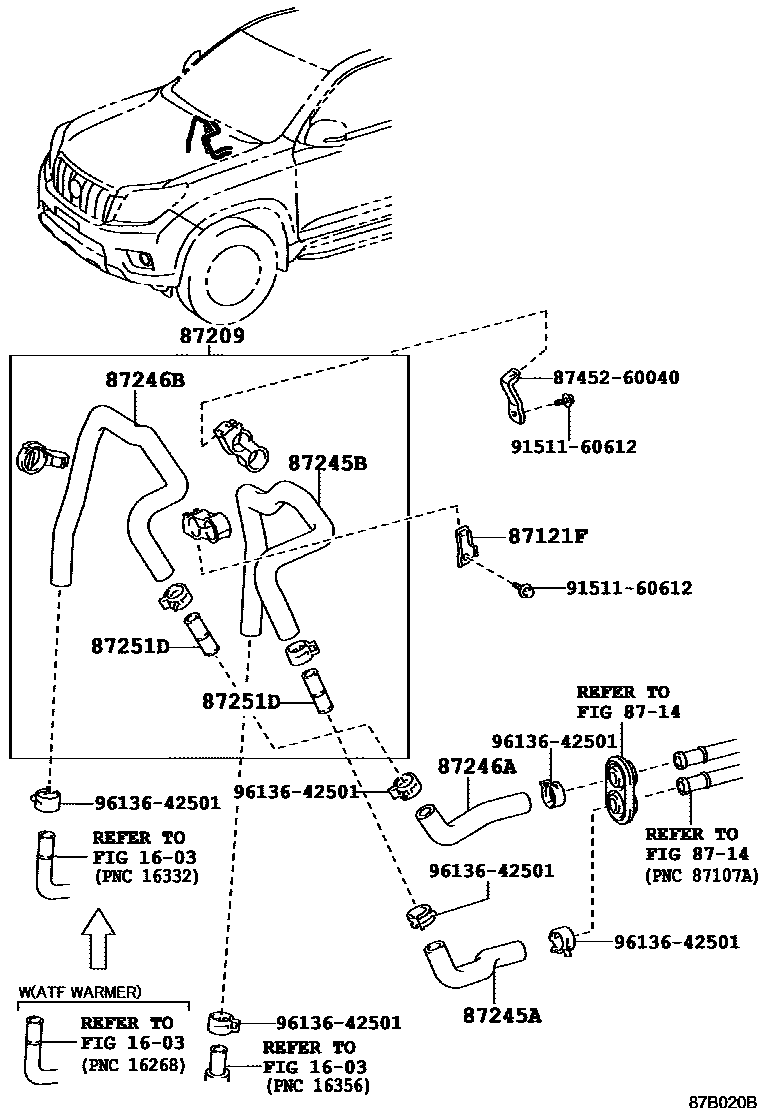

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT,W(REAR HEATER) 0003 1FRONT 0004 1FRONT 0005 1FRONT,W(VISCUS HEATER) 0006 1FRONT,W(VISCUS HEATER) 0007 1FRONT,W(REAR HEATER) 0008 1FRONT.W(REAR & VISCUS HEATER)0009 1FRONT 0010 1FRONT,W(REAR HEATAER) 0011 1FRONT 0012 1FRONT,W(REAR HEATER) 0013 1FRONT 0014 1FRONT,W(REAR HEATER) 0015 1REAR 0016 1REAR 0017 1REAR

1603

87121FBRACKET, HEATER

main87121-60120iGRJ150..LHD201506

FRAME NO.=5XXXXXX

main87452-60050iGRJ150..ARL201506

FRAME NO.=KXXXXXX

8714

87209HOSE SUB-ASSY, WATER

main87209-60D31supersedes 87209-60D00iGRJ150..ARL201506-201508

AIR CONDITIONER-DUAL(AUTO),FRAME NO.=KXXXXXX

main87209-60D32iGRJ150..ARL201509

AIR CONDITIONER-DUAL(AUTO),FRAME NO.=KXXXXXX

main87209-60F10iKDJ150200908-201001

main87209-60D10iGRJ150..5FC..GEN201505-201506

ENGINE-FOR EURO 5 CONFORMITY,FRAME NO.=KXXXXXX

main87209-60D30iGRJ150200908-201108

AIR CONDITIONER-DUAL(AUTO)

main87209-60D41iGRJ150..5FC..GEN201404-201505

ENGINE-FOR EURO 5 CONFORMITY&AIR CONDITIONER-DUAL(AUTO)

main87209-60D60iTRJ150201506

AIR CONDITIONER-DUAL(AUTO)

main87209-60D70supersedes 87209-60D20iLJ150200908-201112

AIR CONDITIONER-DUAL(MANUAL)

main87209-60D71supersedes 87209-60D20iLJ150201308-201506

AIR CONDITIONER-DUAL(MANUAL)

main87209-60G20iGRJ150..6FC..GEN201506

ENGINE-FOR EURO 5 CONFORMITY,FRAME NO.=KXXXXXX

main87209-60G30iGRJ150..6FC..GEN201506

ENGINE-FOR EURO 5 CONFORMITY&AIR CONDITIONER-DUAL(AUTO),FRAME NO.=KXXXXXX

main87209-60G70iGRJ150..6FC..GEN201506

ENGINE-FOR EURO 5 CONFORMITY,FRAME NO.=5XXXXXX

main87209-60G80supersedes 87209-60G60iGRJ150..GCC201506

AIR CONDITIONER-DUAL(AUTO),FRAME NO.=5XXXXXX

main87209-60G90iGRJ150..5FC..GEN201505-201506

ENGINE-FOR EURO 5 CONFORMITY&AIR CONDITIONER-DUAL(AUTO),FRAME NO.=5XXXXXX

main87209-60J40iGDJ150201506

AIR CONDITIONER-DUAL(AUTO)

87245HOSE, HEATER WATER, INLET

main87245-60E60iGRJ150,KDJ150,TRJ150..ATM..GCC201506

GCC SPEC&AIR CONDITIONER-DUAL(MANUAL)

87245AHOSE, HEATER WATER, INLET A

main87245-60D50supersedes 87245-60D50iGRJ150..6FC..GEN201506

AIR CONDITIONER-DUAL(MANUAL),FRAME NO.=KXXXXXX

main87245-60D90iTRJ15#..LHD200908-201308

main87245-60L90iGDJ150201506

main87209-60E70supersedes 87245-60D70iKDJ150..6F..GCC200908-201110

AIR CONDITIONER-DUAL(AUTO)

main87209-60E71supersedes 87245-60D70iKDJ150..RHD;KDJ150..GCC201506

AIR CONDITIONER-DUAL(AUTO)

main87209-60E90supersedes 87245-60G70iLJ150200908-201112

AIR CONDITIONER-DUAL(MANUAL)

main87209-60E91supersedes 87245-60G70iLJ150201506

AIR CONDITIONER-DUAL(MANUAL)

main87245-60J00iTRJ150..LHD200908-201308

AIR CONDITIONER-DUAL(AUTO)

main87245-60J80supersedes 87245-60D90iTRJ150..RHD200908-201110

AIR CONDITIONER-DUAL(AUTO)

87245BHOSE, HEATER WATER, INLET B

main87209-60E41supersedes 87245-60G00iGRJ150..ARL201308-201506

main87209-60E42iGRJ150..ARL201509

AIR CONDITIONER-DUAL(AUTO),FRAME NO.=KXXXXXX

main87209-60E40iGRJ150200908-201108

AIR CONDITIONER-DUAL(AUTO)

main87209-60J00supersedes 87245-60L30iGRJ150..6FC..GEN201506

AIR CONDITIONER-DUAL(AUTO),FRAME NO.=5XXXXXX

main87245-60G41iKDJ150..LHD..GEN201506

COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)

main87245-60J20iTRJ150..RHD200908-201110

AIR CONDITIONER-DUAL(AUTO)

87246HOSE, HEATER WATER, OUTLET

main87245-60E50iKDJ150;GRJ150,TRJ150..LHD201308-201506

GCC SPEC&AIR CONDITIONER-DUAL(MANUAL)

87246AHOSE, HEATER WATER, OUTLET A

main87245-60D40supersedes 87245-60D40iGRJ150..ARL201308-201506

main87245-60D80iTRJ15#201308-201506

main87245-60L80iGDJ150201506

main87209-60E80supersedes 87245-60G60iLJ150200908-201112

AIR CONDITIONER-DUAL(MANUAL)

main87209-60E81supersedes 87245-60G60iLJ150201506

AIR CONDITIONER-DUAL(MANUAL)

main87245-60G80supersedes 87245-60D60iKDJ150..RHD;KDJ150..GCC201506

AIR CONDITIONER-DUAL(AUTO)

main87245-60G90iTRJ150..LHD200908-201308

AIR CONDITIONER-DUAL(AUTO)

main87245-60J70supersedes 87245-60D80iTRJ150..RHD200908-201110

AIR CONDITIONER-DUAL(AUTO)

87246BHOSE, HEATER WATER, OUTLET B

main87209-60E51supersedes 87245-60G10iGRJ150..ARL201308-201506

main87209-60D50iKDJ150..ARL,GCC200908-201103

AIR CONDITIONER-DUAL(AUTO)

main87209-60D51supersedes 87245-60G50iKDJ150..ARL;KDJ150..5FC..GCC201104-201112

AIR CONDITIONER-DUAL(AUTO)

main87209-60D52supersedes 87245-60G50iKDJ150..ARL,GCC201201-201308

AIR CONDITIONER-DUAL(AUTO)

main87209-60E50iGRJ150200908-201108

AIR CONDITIONER-DUAL(AUTO)

main87209-60E61iGRJ150..5FC..GEN201505-201506

ENGINE-FOR EURO 5 CONFORMITY&AIR CONDITIONER-DUAL(AUTO),FRAME NO.=KXXXXXX

main87209-60G40iGRJ150..6FC..GEN201506

ENGINE-FOR EURO 5 CONFORMITY&AIR CONDITIONER-DUAL(AUTO),FRAME NO.=KXXXXXX

main87209-60J10supersedes 87245-60L40iGRJ150..GCC201505-201506

AIR CONDITIONER-DUAL(AUTO),FRAME NO.=5XXXXXX

main87209-60J20iGRJ150..6FC..GEN201506

ENGINE-FOR EURO 5 CONFORMITY&AIR CONDITIONER-DUAL(AUTO),FRAME NO.=5XXXXXX

main87245-60G20iGRJ150..5FC..GEN201404-201505

ENGINE-FOR EURO 5 CONFORMITY

main87245-60J10iTRJ150201506

AIR CONDITIONER-DUAL(AUTO)

main87245-60K70iGRJ150..6FC..GEN201506

ENGINE-FOR EURO 5 CONFORMITY,FRAME NO.=KXXXXXX

main87245-60L50iGRJ150..6FC..GEN201506

ENGINE-FOR EURO 5 CONFORMITY,FRAME NO.=5XXXXXX

main87245-60M40iGDJ150201506

AIR CONDITIONER-DUAL(AUTO)

87251DJOINT, WATER, NO.1

main87251-35020×2iGRJ150..ARL201505-201506

FRAME NO.=5XXXXXX

8745260040BRACKET, FUEL MAGNET VALVE

main87452-60040

9151160612

main91511-60612

9613642501

main96136-42501

14 parts on this diagram · 17 diagrams in section
