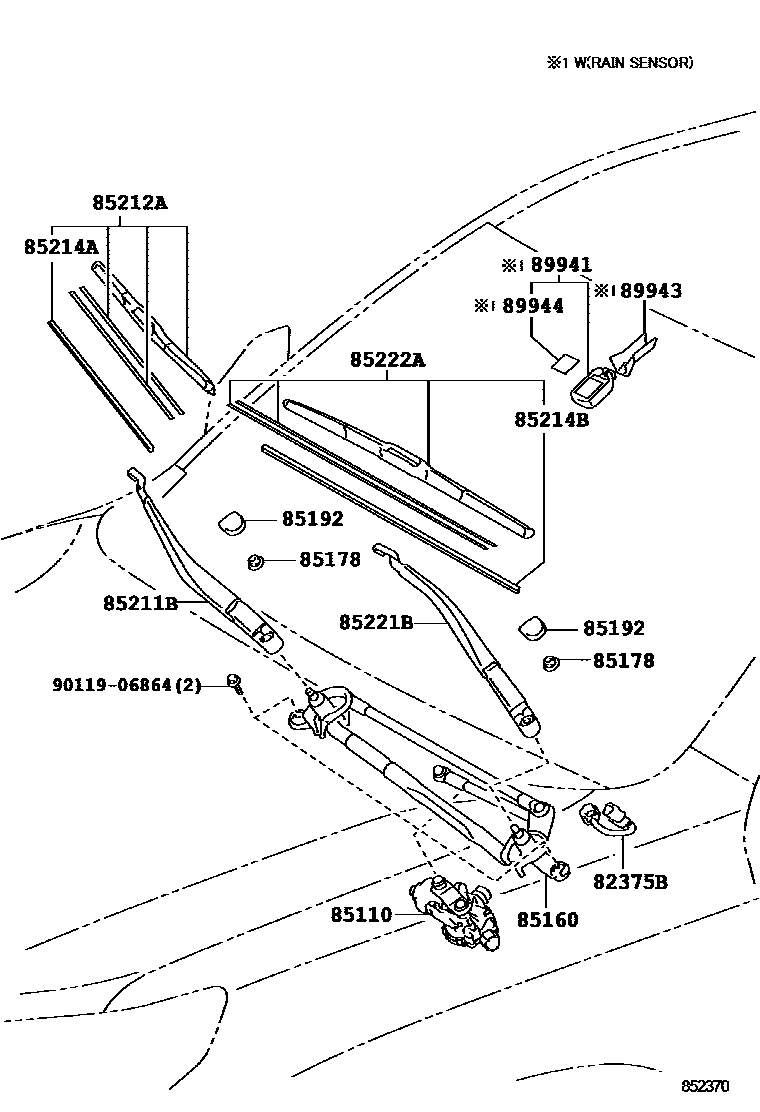

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-60010iGRJ150,KDJ150,LJ150,TRJ15#¥1,000200908-201506

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47100iGRJ150,KDJ150,LJ150..RHD¥25,100200908-201506

main85110-60440iGRJ150,KDJ150,LJ150,TRJ15#..LHD200908-201506

85160LINK ASSY, WINDSHIELD WIPER

main85150-60340iTRJ150..RHD¥9,000200908-201506

main85150-60370iKDJ150..6F..GCC200908-201506

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iTRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155¥80200908-201506

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#¥250200908-201506

85211BARM, FRONT WIPER, RH

main85211-60270iGRJ150,KDJ150,LJ150,TRJ150..RHD¥4,860200908-201103

sub85211-60271¥3,370

main85211-60271iGDJ150,GRJ150,KDJ150,LJ150..RHD¥3,370201104-201308

main85211-60271iGRJ150,KDJ150,LJ150..RHD¥3,370201308-201410

PNC 85212A=RB3

main85211-60271iGRJ150,KDJ150,LJ150..RHD¥3,370201410-201506

PNC 85212A=R65P

main85211-60290iGRJ150,KDJ150,LJ150,TRJ15#..LHD200908-201005

main85211-60300iKDJ150..6F..GCC¥5,100201006-201410

main85211-60310iGRJ150,KDJ150,LJ150,TRJ15#..LHD201410-201506

85212ABLADE, FR WIPER, RH

main85212-48120iGRJ150,KDJ150,LJ150..RHD¥4,720201308-201410

MARK=RB3

sub85212-60220¥4,290

main85212-48120iTRJ150..RHD¥4,720200908-201308

sub85212-60220¥4,290

main85212-53081iKDJ150..6F..GCC¥2,640200908-201410

main85212-60210iGRJ150,KDJ150,LJ150,TRJ15#..LHD¥2,640201410-201506

main85212-60220iGDJ150,GRJ150,KDJ150,LJ150..RHD¥4,290201506

main85212-60220iGRJ150,KDJ150,LJ150..RHD¥4,290201410-201506

MARK=R65P

85214ARUBBER, WIPER, RH

main85214-52110iGRJ150,KDJ150,LJ150..RHD¥900201410-201506

main85214-53090iKDJ150..LHD..5FC;KDJ150..LHD..6F..GEN;GRJ150,LJ150,TRJ15#..LHD¥800200908-201410

main85214-60120iGRJ150,KDJ150,LJ150,TRJ15#..LHD¥800201410-201506

main85214-68020iTRJ150..RHD¥900200908-201410

sub85214-52110¥900

85214BRUBBER, WIPER, LH

main85214-52110iGRJ150,KDJ150,LJ150,TRJ15#..LHD¥900201410-201506

main85214-53090iGRJ150,KDJ150,LJ150..RHD¥800200908-201410

main85214-60120iGDJ150,GRJ150,KDJ150,LJ150..RHD¥800201410-201506

main85214-68020iKDJ150..6F..GCC¥900200908-201410

sub85214-52110¥900

85221BARM, FRONT WIPER, LH

main85221-60300iGRJ150,KDJ150,LJ150,TRJ150..RHD¥5,100200908-201103

sub85221-60301¥5,100

main85221-60301iGRJ150,KDJ150,LJ150..RHD¥5,100201104-201308

main85221-60301iGRJ150,KDJ150,LJ150..RHD¥5,100201308-201410

PNC 85222A=RG0

main85221-60311iGRJ150,KDJ150,LJ150,TRJ150..LHD..GEN¥3,370201506

main85221-60320iGRJ150,KDJ150,LJ150,TRJ15#..LHD200908-201005

sub85221-60321

main85221-60321iKDJ150..LHD..5FC;KDJ150..LHD..6F..GEN;GRJ150,LJ150,TRJ15#..LHD201006-201506

main85221-60340iGDJ150,GRJ150,KDJ150,LJ150..RHD¥3,500201506

main85221-60340iGRJ150,KDJ150,LJ150..RHD¥3,500201410-201506

PNC 85222A=R50C

85222ABLADE, FR WIPER, LH

main85222-48130iKDJ150..LHD..5FC;KDJ150..LHD..6F..GEN;GRJ150,LJ150,TRJ15#..LHD¥4,720200908-201410

sub85222-60260¥4,290

main85222-53060iGRJ150,KDJ150,LJ150..RHD¥2,910201308-201410

MARK=RG0

main85222-53060iTRJ150..RHD¥2,910200908-201308

main85222-60260iGRJ150,KDJ150,LJ150,TRJ15#..LHD¥4,290201410-201506

main85222-60280iGRJ150,KDJ150,LJ150..RHD¥2,640201410-201506

MARK=R50C

main85222-60280iGDJ150,GRJ150,KDJ150,LJ150..RHD¥2,640201506

89941SENSOR, RAIN

main89941-30020¥19,900

main89941-48072¥16,600

main89941-60130

main89941-60140¥19,900

89943COVER, RAIN SENSOR

main89943-33050¥1,400

89944TAPE, RAIN SENSOR

main89944-42010¥1,490

9011906864

main90119-06864¥80

15 parts on this diagram · 2 diagrams in section
