ELECTRONIC FUEL INJECTION SYSTEM

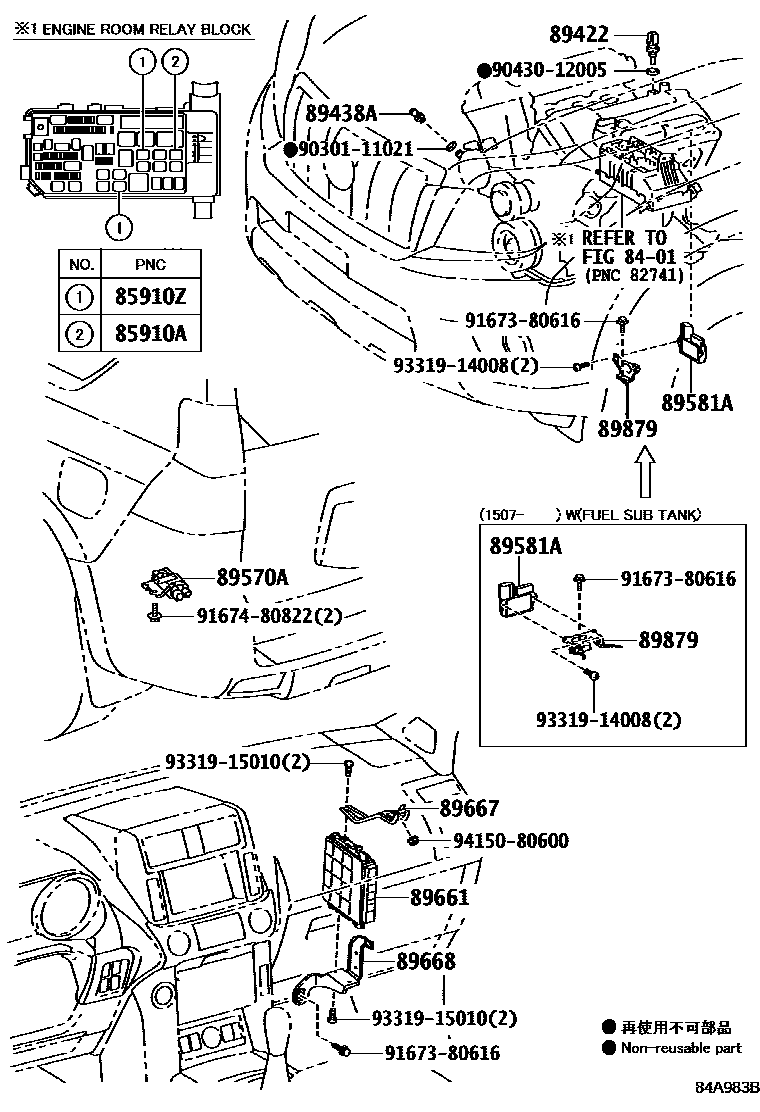

Parts diagram
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
main90987-02027i200908-201506
85910ZRELAY, INJECTION (FOR EFI)
main90987-02027i201506-201511
RUSSIA SPEC
main90987-02027i201506
CHILE SPEC
main90987-02027i201404-201506
VX-L PACKAGE&ENGINE-FOR EURO 5 CONFORMITY&CRUISE CONTROL-WITH
main90987-02027i201404-201506
ENGINE-FOR EURO 5 CONFORMITY
main90987-02027i201506-201511
UKRAINE SPEC
main90987-02027i201507-201509
VX-L PACKAGE&ENGINE-FOR EURO 5 CONFORMITY&CRUISE CONTROL-WITH&FUEL TANK-WITH(SUB TANK)
main90987-02027i201507-201509
ENGINE-FOR EURO 5 CONFORMITY&FUEL TANK-WITH(SUB TANK)
main90987-02027i201110-201506
HONG KONG SPEC
main90987-02027i201110-201308
HONG KONG SPEC&VX-L PACKAGE
main90987-02027i201206-201506
CHINA SPEC
main90987-02027i201308-201506
HONG KONG SPEC&VX-L PACKAGE&CRUISE CONTROL-WITH
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-33030i200908-201506
89438ASWITCH, POWER STEERING OIL PRESSURE
main89438-33010i200908-201610
main89438-71010i201611-201708
main89448-34020i200908-201708
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
main89570-60170i200908-201506
main89570-60180i201506
VX-L PACKAGE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)
main89570-60180i201506
PAKISTAN SPEC&VX-L PACKAGE&CRUISE CONTROL-WITH
main89570-60180i201506
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&VX-L PACKAGE&CRUISE CONTROL-WITH
main89570-60180i201506
SOUTH AFRICA SPEC&VX-L PACKAGE&CRUISE CONTROL-WITH
main89570-60180i201404-201506
VX-L PACKAGE&ENGINE-FOR EURO 5 CONFORMITY&CRUISE CONTROL-WITH
main89570-60180i201308-201506
VX-L PACKAGE&CRUISE CONTROL-WITH
main89570-60180i201507
PAKISTAN SPEC&VX-L PACKAGE&CRUISE CONTROL-WITH&FUEL TANK-WITH(SUB TANK)
main89570-60180i201507
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&VX-L PACKAGE&CRUISE CONTROL-WITH&FUEL TANK-WITH(SUB TANK)
main89570-60180i201507
SOUTH AFRICA SPEC&VX-L PACKAGE&CRUISE CONTROL-WITH&FUEL TANK-WITH(SUB TANK)
main89570-60180i201507
VX-L PACKAGE&CRUISE CONTROL-WITH&FUEL TANK-WITH(SUB TANK)
main89570-60180i201507
VX-L PACKAGE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)&FUEL TANK-WITH(SUBTANK)
main89570-60180i200908-201308
VX-L PACKAGE
main89570-60180i201110-201308
HONG KONG SPEC&VX-L PACKAGE
main89570-60180i201308-201506
HONG KONG SPEC&VX-L PACKAGE&CRUISE CONTROL-WITH
main89570-60180i201308-201506
VX-L PACKAGE&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)
main89570-60180i201507-201509
VX-L PACKAGE&ENGINE-FOR EURO 5 CONFORMITY&CRUISE CONTROL-WITH&FUEL TANK-WITH(SUB TANK)
89581ADRIVER, AIR INJECTION CONTROL
main89581-60010i201110-201506
HONG KONG SPEC
main89581-60010i200908-201308
main89581-60010i201110-201308
HONG KONG SPEC&VX-L PACKAGE
main89581-60010i201308-201506
HONG KONG SPEC&VX-L PACKAGE&CRUISE CONTROL-WITH
main89581-60010i201404-201506
ENGINE-FOR EURO 5 CONFORMITY
main89581-60010i201404-201506
VX-L PACKAGE&ENGINE-FOR EURO 5 CONFORMITY&CRUISE CONTROL-WITH
main89581-60010i201507-201509
VX-L PACKAGE&ENGINE-FOR EURO 5 CONFORMITY&CRUISE CONTROL-WITH&FUEL TANK-WITH(SUB TANK)
main89581-60010i201507-201509
ENGINE-FOR EURO 5 CONFORMITY&FUEL TANK-WITH(SUB TANK)
89661COMPUTER, ENGINE CONTROL
main89661-60L30i200908-201308
SOUTH AFRICA SPEC
main89661-60L40i200908-201308
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)
main89661-60L40i200908-201308
SOUTH AFRICA SPEC
main89661-60L40i200908-201308
PAKISTAN,TUNISIA SPEC
main89661-60L50i200908-201308
ENGINE-FOR EURO 4 CONFORMITY
main89661-60L60i200908-201308
ENGINE-FOR EURO 4 CONFORMITY
main89661-60L70i201110-201210
HONG KONG SPEC
main89661-60M50i200908-201206
CHINA SPEC&CHINESE CAUTION BEIJING
main89661-60M50i200908-201206
CHINA SPEC&CHINESE CAUTION EXPORT BEIJING
main89661-60M50i200911-201506
UKURAINE SPEC
main89661-60M50i201103-201506
RUSSIA SPEC
main89661-60M60i200911-201506
UKURAINE SPEC
main89661-60M60i200908-201206
CHINA SPEC&CHINESE CAUTION BEIJING
main89661-60M60i200908-201206
CHINA SPEC&CHINESE CAUTION EXPORT BEIJING
main89661-60M60i201103-201506
RUSSIA SPEC
main89661-60M60i201002-201006
CHILE SPEC&EURO 4 CONFORMITY FOR CHILE
main89661-60M70i200908-201506
main89661-60M80i200908-201308
CHILE SPEC
main89661-60M80i200908-201308
BELIZE SPEC
main89661-60M80i200908-201308
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)
main89661-60M80i201110-201308
EGYPT SPEC
main89661-60M90i200908-201506
main89661-60N00i200908-201308
sub89661-60W40
main89661-60T50i201206-201308
CHINA SPEC&CHINESE CAUTION EXPORT BEIJING
main89661-60T50i201206-201308
CHINA SPEC&CHINESE CAUTION BEIJING
main89661-60T60i201206-201308
CHINA SPEC&CHINESE CAUTION EXPORT BEIJING
main89661-60T60i201206-201308
CHINA SPEC&CHINESE CAUTION BEIJING
main89661-60U00i201210-201308
HONG KONG SPEC
main89661-60V40i201308-201506
main89661-60V50i201308-201506
SOUTH AFRICA SPEC
main89661-60V50i201308-201506
PAKISTAN SPEC
main89661-60V50i201308-201506
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)
main89661-60V70i201308-201506
ENGINE-FOR EURO 4 CONFORMITY
main89661-60V80i201308-201506
HONG KONG SPEC
main89661-60V80i201404-201506
CHILE SPEC&ENGINE-FOR EURO 5 CONFORMITY
main89661-60W40i201308-201506
main89661-60X10i201308-201506
CHILE SPEC
main89661-60X10i201308-201506
BELIZE SPEC
main89661-60X10i201308-201506
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)
main89661-60X20i201308-201506
CHINA SPEC&CHINESE CAUTION EXPORT BEIJING
main89661-60X20i201308-201506
CHINA SPEC&CHINESE CAUTION BEIJING
main89661-60X30i201308-201506
CHINA SPEC&CHINESE CAUTION BEIJING
main89661-60X30i201308-201506
CHINA SPEC&CHINESE CAUTION EXPORT BEIJING
main89666-60B50i201511
ENGINE-FOR EURO 5 CONFORMITY
main89666-60B50i201506-201511
UKRAINE SPEC
main89666-60B50i201506-201511
RUSSIA SPEC
main89666-60B60i201506-201511
UKRAINE SPEC
main89666-60B60i201506-201511
RUSSIA SPEC
main89666-60B60i201511
ENGINE-FOR EURO 5 CONFORMITY
main89666-60B60i201506
CHILE SPEC
main89666-60B70i201506
main89666-60B80i201506
main89666-60C70i201506
main89666-60C80i201506
SOUTH AFRICA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
main89666-60C80i201506
PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
main89666-60C80i201506
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ENGINE-FOR EURO 3-1 CONFORMITY
main89666-60C90i201506
ENGINE-FOR EURO 4 CONFORMITY
main89666-60D00i201506
HONG KONG SPEC
main89666-60D00i201506
CHILE SPEC&ENGINE-FOR EURO 5 CONFORMITY
main89666-60D60i201506
89667BRACKET, ENGINE CONTROL COMPUTER
main89667-60270i200908-201506
main89667-60280i200908-201506
main89667-60290i201506
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-60260i200908-201506
main89668-60290i200908-201506
main89668-60300i201506
89879BRACKET, INJECTOR DRIVER
main89589-60040i201404-201506
ENGINE-FOR EURO 5 CONFORMITY
main89589-60040i200908-201308
main89589-60040i201110-201506
HONG KONG SPEC
main89589-60040i201110-201308
HONG KONG SPEC&VX-L PACKAGE
main89589-60040i201308-201506
HONG KONG SPEC&VX-L PACKAGE&CRUISE CONTROL-WITH
main89589-60040i201404-201506
VX-L PACKAGE&ENGINE-FOR EURO 5 CONFORMITY&CRUISE CONTROL-WITH
main89589-60050i201507-201510
FUEL TANK-WITH(SUB TANK)
sub89589-60051
main89589-60050i201507-201510
VX-L PACKAGE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)&FUEL TANK-WITH(SUBTANK)
sub89589-60051
main89589-60050i201507-201510
VX-L PACKAGE&CRUISE CONTROL-WITH&FUEL TANK-WITH(SUB TANK)
sub89589-60051
main89589-60050i201507-201509
VX-L PACKAGE&ENGINE-FOR EURO 5 CONFORMITY&CRUISE CONTROL-WITH&FUEL TANK-WITH(SUB TANK)
sub89589-60051
main89589-60050i201507-201509
ENGINE-FOR EURO 5 CONFORMITY&FUEL TANK-WITH(SUB TANK)
sub89589-60051
main89589-60051i201511
FUEL TANK-WITH(SUB TANK)
main89589-60051i201511
VX-L PACKAGE&CRUISE CONTROL-WITH&FUEL TANK-WITH(SUB TANK)
main89589-60051i201511
VX-L PACKAGE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)&FUEL TANK-WITH(SUBTANK)
9030111021
main90301-11021
9043012005
main90430-12005
9167380616
main91673-80616
9167480822
main91674-80822
9331914008
main93319-14008
9331915010
main93319-15010
9415080600
main94150-80600

18 parts on this diagram · 4 diagrams in section
