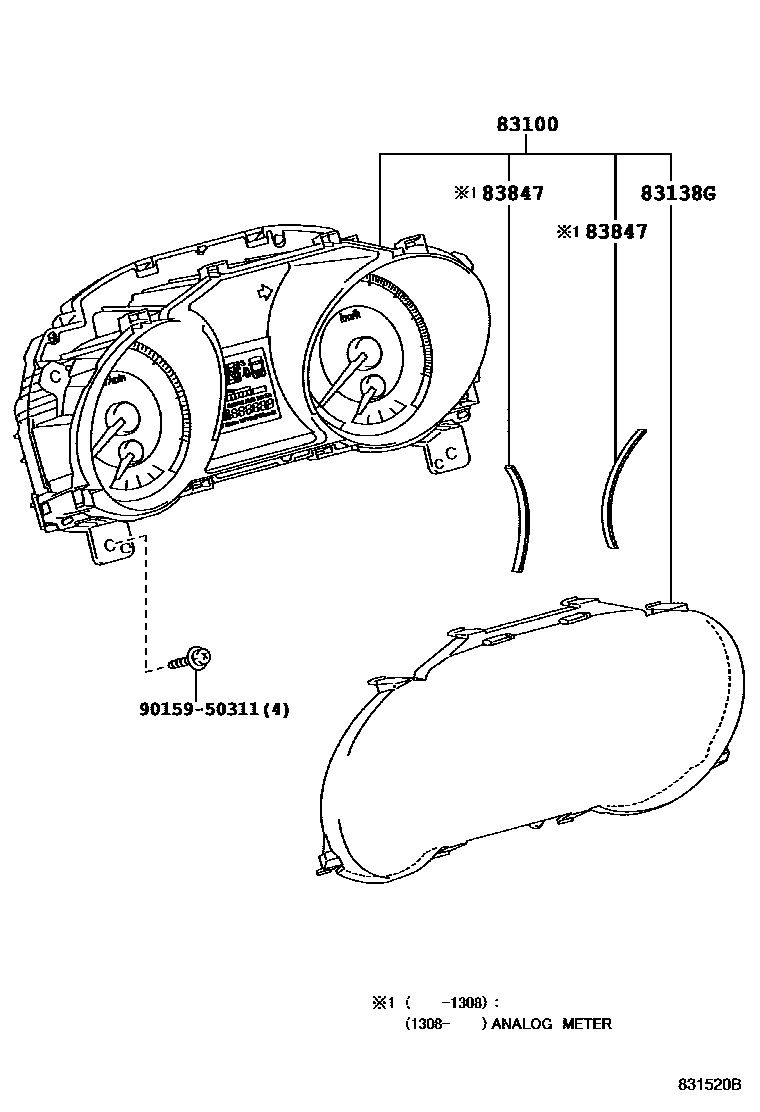

METER

83100METER ASSY, COMBINATION

main83800-60M80i200908-201009

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

sub83800-60M81

main83800-60M80i200908-201009

CHILE SPEC

sub83800-60M81

main83800-60M80i200908-201009

BELIZE SPEC

sub83800-60M81

main83800-60M81i201010-201110

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

main83800-60M81i201010-201110

CHILE SPEC

main83800-60M81i201010-201110

BELIZE SPEC

main83800-60M82i201110-201308

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

main83800-60M82i201110-201308

CHILE SPEC

main83800-60M82i201110-201308

BELIZE SPEC

main83800-60N00i200908-201009

sub83800-60N01

main83800-60N01i201010-201110

main83800-60N02i201110-201308

main83800-60N20i200908-201009

PAKISTAN,TUNISIA SPEC

sub83800-60N21

main83800-60N20i200908-201009

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

sub83800-60N21

main83800-60N21i201010-201110

PAKISTAN,TUNISIA SPEC

main83800-60N21i201010-201110

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

main83800-60N22i201110-201308

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

main83800-60N22i201110-201308

PAKISTAN,TUNISIA SPEC

main83800-60N30i200908-201009

sub83800-60N31

main83800-60N31i201010-201110

main83800-60N32i201110-201308

main83800-60N40i200908-201009

sub83800-60N41

main83800-60N41i201010-201110

main83800-60N42i201110-201308

main83800-60N60i200908-201009

sub83800-60N61

main83800-60N61i201010-201110

main83800-60N62i201110-201308

main83800-60N70i200908-201009

sub83800-60N71

main83800-60N71i201010-201110

main83800-60N72i201110-201308

main83800-60N80i200908-201009

sub83800-60N81

main83800-60N81i201010-201110

main83800-60N82i201110-201308

main83800-60N90i200908-201009

sub83800-60N91

main83800-60N91i201010-201110

main83800-60N92i201110-201308

main83800-60P00i200908-201009

sub83800-60P01

main83800-60P01i201010-201110

main83800-60P02i201110-201308

main83800-60P10i200908-201009

sub83800-60P11

main83800-60P11i201010-201110

main83800-60P12i201110-201308

main83800-60P20i200908-201009

sub83800-60P21

main83800-60P21i201010-201110

main83800-60P22i201110-201308

main83800-60P30i200908-201009

sub83800-60P31

main83800-60P31i201010-201110

main83800-60P40i200908-201009

sub83800-60P41

main83800-60P41i201010-201110

main83800-60P42i201110-201308

main83800-60P50i200908-201009

sub83800-60P51

main83800-60P51i201010-201110

main83800-60P52i201110-201308

main83800-60P60i200908-201009

SOUTH AFRICA SPEC&ENGINE-FOR EURO 3 CONFORMITY

sub83800-60P61

main83800-60P61i201010-201110

SOUTH AFRICA SPEC&ENGINE-FOR EURO 3 CONFORMITY

main83800-60P62i201110-201308

SOUTH AFRICA SPEC&ENGINE-FOR EURO 3 CONFORMITY&WIRELESS DOOR LOCK-WITH(LESS SMARTENTRY)

main83800-60P62i201110-201308

SOUTH AFRICA SPEC&TX-L PACKAGE&ENGINE-FOR EURO 3 CONFORMITY&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH

main83800-60P70i200908-201009

SOUTH AFRICA SPEC&ENGINE-FOR EURO 3 CONFORMITY

sub83800-60P71

main83800-60P71i201010-201110

SOUTH AFRICA SPEC&ENGINE-FOR EURO 3 CONFORMITY

main83800-60P72i201110-201308

SOUTH AFRICA SPEC&TX-L PACKAGE&ENGINE-FOR EURO 3 CONFORMITY&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH

main83800-60P72i201110-201308

SOUTH AFRICA SPEC&ENGINE-FOR EURO 3 CONFORMITY&WIRELESS DOOR LOCK-WITH(LESS SMARTENTRY)

main83800-6AK80i201308-201506

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

main83800-6AK80i201308-201506

CHILE SPEC

main83800-6AK80i201308-201506

BELIZE SPEC

main83800-6AK90i201308-201506

main83800-6AL20i201308-201506

PAKISTAN SPEC

main83800-6AL20i201308-201506

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

main83800-6AL30i201308-201506

main83800-6AL40i201308-201506

main83800-6AL60i201308-201506

main83800-6AL70i201308-201506

main83800-6AL80i201308-201506

main83800-6AL90i201308-201506

main83800-6AM20i201308-201506

main83800-6AM30i201308-201506

main83800-6AM50i201308-201506

main83800-6AM60i201308-201506

main83800-6AM70i201308-201506

SOUTH AFRICA SPEC&ENGINE-FOR EURO 3 CONFORMITY&*350

main83800-6AM80i201308-201506

SOUTH AFRICA SPEC&ENGINE-FOR EURO 3 CONFORMITY

main83800-6AX60i201506

CHILE SPEC

main83800-6AX60i201506

BELIZE SPEC

main83800-6AX60i201506

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

main83800-6AX60i201506

W(ABS ONLY)&SPEEDOMETER-OPTITRON(KM/H)

main83800-6AX60i201506

HEADLAMP-LED&STEERING SWITCH-LH:WITHOUT/RH:VAST

main83800-6AX60i201506

HEADLAMP-LED&STEERING SWITCH-LH:AUDIO/RH:VAST,TEL

main83800-6AX60i201506

SPEEDOMETER-OPTITRON(KM/H)

main83800-6AX70i201506

main83800-6AY00i201506

PAKISTAN SPEC

main83800-6AY00i201506

SOUTH AMERICA SPEC(EURO 3 CONFORMITY)

main83800-6AY10i201506

main83800-6AY20i201506

main83800-6AY40i201506

main83800-6AY50i201506

main83800-6AY80i201506

W(ABS ONLY)&SPEEDOMETER-OPTITRON(KM/H)

main83800-6AY80i201506

SIDE STEP-WITH(STEP LAMP LESS)&HEADLAMP-LED&STEERING SWITCH-LH:AUDIO/RH:VAST,TEL

main83800-6AY80i201506

SIDE STEP-WITH(STEP LAMP LESS)(DOP)&HEADLAMP-LED&STEERING SWITCH-LH:AUDIO/RH:VAST,TEL

main83800-6AY80i201506

SPEEDOMETER-OPTITRON(KM/H)

main83800-6AY90i201506

main83800-6AZ20i201506

STABILIZER-WITH(KDSS)&*351&SIDE STEP-WITH(STEP LAMP)&HEADLAMP-LED

main83800-6AZ20i201506

STABILIZER-WITH(KDSS)&*351&SIDE STEP-WITH(STEP LAMP)(DOP)&HEADLAMP-LED

main83800-6AZ30i201506

main83800-6AZ50i201506

main83800-6AZ60i201506

main83800-6AZ70i201506

main83800-6AZ80i201506

83138GGLASS, COMBINATION METER

main83852-60M20i200908-201506

main83852-60M20i201506

STABILIZER-WITH(KDSS)&*351&SIDE STEP-WITH(STEP LAMP)&HEADLAMP-LED

main83852-60M20i201506

STABILIZER-WITH(KDSS)&*351&SIDE STEP-WITH(STEP LAMP)(DOP)&HEADLAMP-LED

main83852-60M20i201506

W(ABS ONLY)&SPEEDOMETER-OPTITRON(KM/H)

main83852-60M20i201506

SIDE STEP-WITH(STEP LAMP LESS)&HEADLAMP-LED&STEERING SWITCH-LH:AUDIO/RH:VAST,TEL

main83852-60M20i201506

SIDE STEP-WITH(STEP LAMP LESS)(DOP)&HEADLAMP-LED&STEERING SWITCH-LH:AUDIO/RH:VAST,TEL

main83852-60M20i201506

HEADLAMP-LED&STEERING SWITCH-LH:WITHOUT/RH:VAST

main83852-60M20i201506

HEADLAMP-LED&STEERING SWITCH-LH:AUDIO/RH:VAST,TEL

main83852-60M20i201506

SPEEDOMETER-OPTITRON(KM/H)

83847CUSHION, COMBINATION SPEEDOMETER, NO.1

main83847-60P80i200908-201506

main83847-60P80i201506

STABILIZER-WITH(KDSS)&*351&SIDE STEP-WITH(STEP LAMP)&HEADLAMP-LED

main83847-60P80i201506

STABILIZER-WITH(KDSS)&*351&SIDE STEP-WITH(STEP LAMP)(DOP)&HEADLAMP-LED

main83847-60P80i201506

W(ABS ONLY)&SPEEDOMETER-OPTITRON(KM/H)

main83847-60P80i201506

SIDE STEP-WITH(STEP LAMP LESS)&HEADLAMP-LED&STEERING SWITCH-LH:AUDIO/RH:VAST,TEL

main83847-60P80i201506

SIDE STEP-WITH(STEP LAMP LESS)(DOP)&HEADLAMP-LED&STEERING SWITCH-LH:AUDIO/RH:VAST,TEL

main83847-60P80i201506

HEADLAMP-LED&STEERING SWITCH-LH:WITHOUT/RH:VAST

main83847-60P80i201506

HEADLAMP-LED&STEERING SWITCH-LH:AUDIO/RH:VAST,TEL

main83847-60P80i201506

SPEEDOMETER-OPTITRON(KM/H)

9015950311

main90159-50311

4 parts on this diagram · 2 diagrams in section
