SEAT BELT

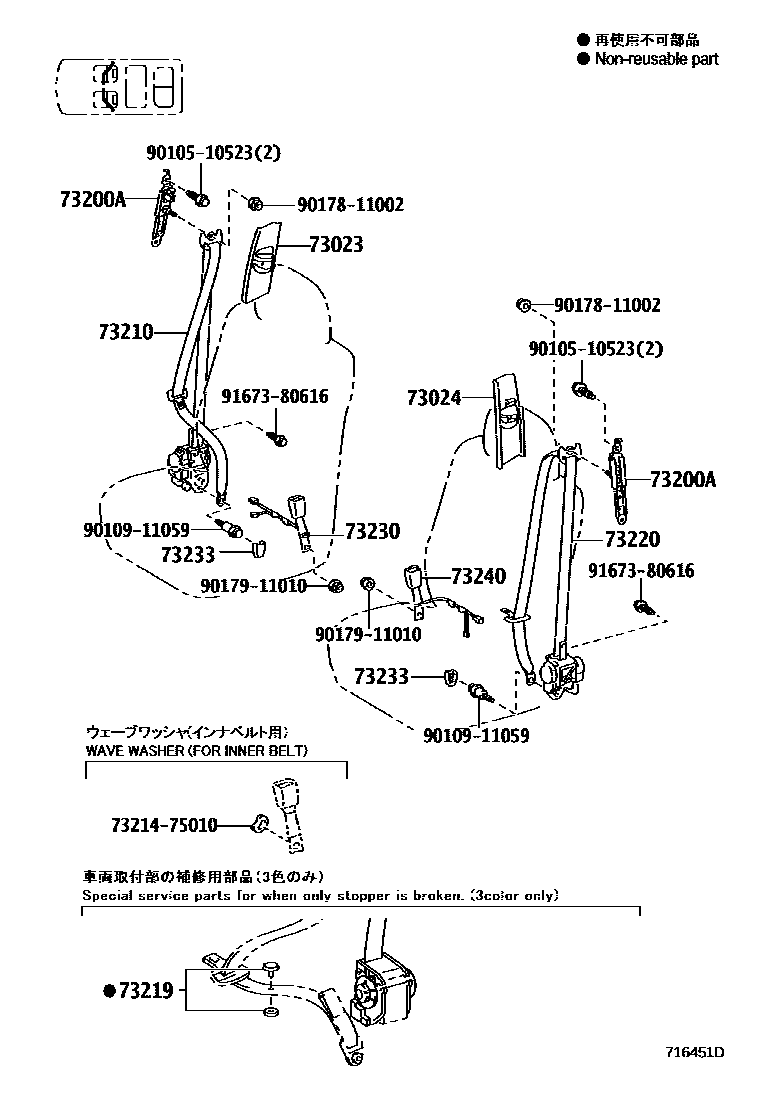

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-53020-A4i200908-201308
IVORY,TRIM0#
main73023-53020-A6i201308-201708
FLAXEN,TRIM0#
main73023-53020-B0i200908-201308
LT.GRAY,TRIM1#
main73023-53020-B0i201308-201708
LT.GRAY,TRIM2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-53020-A4i200908-201308
IVORY,TRIM0#
main73024-53020-A6i201308-201708
FLAXEN,TRIM0#
main73024-53020-B0i200908-201308
LT.GRAY,TRIM1#
main73024-53020-B0i201308-201708
LT.GRAY,TRIM2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i201301-201506
main73200-53010i200908-201212
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-60770-A2i200908-201212
IVORY,TRIM0#
sub73210-60771
main73210-60770-C2i200908-201212
BLACK/LT.GRAY,TRIM1#
sub73210-60771
main73210-60771-A2i201301-201307
IVORY,TRIM0#
sub73210-60772
main73210-60771-C2i201301-201307
BLACK/LT.GRAY,TRIM1#
sub73210-60772
main73210-60772-A2i201307-201308
IVORY,TRIM0#
sub73210-60773
main73210-60772-A3i201308-201708
FLAXEN,TRIM0#
sub73210-60773
main73210-60772-C2i201307-201308
BLACK/LT.GRAY,TRIM1#
sub73210-60773
main73210-60772-C2i201308-201708
BLACK/LT.GRAY,TRIM2#
sub73210-60773
73219STOPPER, TONGUE PLATE
main73219-33010i200908-201506
BLACK
main73219-33020i200908-201506
GRAY
main73219-33030i200908-201506
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-60630-A2i200908-201212
IVORY,TRIM0#
sub73220-60631
main73220-60630-C2i200908-201212
BLACK/LT.GRAY,TRIM1#
sub73220-60631
main73220-60631-A2i201301-201307
IVORY,TRIM0#
sub73220-60632
main73220-60631-C2i201301-201307
BLACK/LT.GRAY,TRIM1#
sub73220-60632
main73220-60632-A2i201307-201308
IVORY,TRIM0#
sub73220-60633
main73220-60632-A3i201308-201708
FLAXEN,TRIM0#
sub73220-60633
main73220-60632-C2i201308-201708
BLACK/LT.GRAY,TRIM2#
sub73220-60633
main73220-60632-C2i201307-201308
BLACK/LT.GRAY,TRIM1#
sub73220-60633
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-60530-A0i200908-201308
IVORY,TRIM0#
main73230-60530-A2i201308-201708
FLAXEN,TRIM0#
main73230-60530-C0i200908-201308
BLACK,TRIM1#
main73230-60530-C0i201308-201708
BLACK,TRIM2#
main73230-60550-A0i200908-201308
IVORY,TRIM0#
main73230-60550-A2i201308-201708
FLAXEN,TRIM0#
main73230-60550-C0i200908-201308
BLACK,TRIM1#
main73230-60550-C0i201308-201708
BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-35010-A0i201005-201308
IVORY,TRIM0#,FRAME NO.=5XXXXXX
main73233-35010-A4i201308-201708
FLAXEN,TRIM0#,FRAME NO.=5XXXXXX
main73233-35010-C0i201308-201610
BLACK,TRIM2#,FRAME NO.=5XXXXXX
main73233-35010-C0i201005-201308
BLACK,TRIM1#,FRAME NO.=5XXXXXX
main73233-35010-C1i201610-201708
BLACK,TRIM2#,FRAME NO.=5XXXXXX
main73233-60020-A2i201005-201308
IVORY,TRIM0#,*266
sub73233-60020
sub73233-35010
main73233-60020-A2i200908-201005
IVORY,TRIM0#
sub73233-60020
sub73233-35010
main73233-60020-A4i201308-201506
CHINA SPEC&TX-L PACKAGE&LEATHER SEAT PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER),FLAXEN,TRIM0#
sub73233-60020
sub73233-35010
main73233-60020-A4i201308-201708
FLAXEN,TRIM0#,*266
sub73233-60020
sub73233-35010
main73233-60020-A4i201308-201708
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT,FLAXEN,TRIM0#
sub73233-60020
sub73233-35010
main73233-60020-C0i201308-201610
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT,BLACK,TRIM2#
sub73233-60020
sub73233-35010
main73233-60020-C0i201005-201308
BLACK,TRIM1#,*266
sub73233-60020
sub73233-35010
main73233-60020-C0i201308-201610
BLACK,TRIM2#,*266
sub73233-60020
sub73233-35010
main73233-60020-C0i201308-201506
CHINA SPEC&TX-L PACKAGE&LEATHER SEAT PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2#
sub73233-60020
sub73233-35010
main73233-60020-C0i200908-201005
BLACK,TRIM1#
sub73233-60020
sub73233-35010
main73233-60020-C1i201610-201708
BLACK,TRIM2#,*266
sub73233-60020
sub73233-35010
main73233-60020-C1i201610-201708
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT,BLACK,TRIM2#
sub73233-60020
sub73233-35010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-60530-A0i200908-201308
IVORY,TRIM0#
main73230-60530-A2i201308-201708
FLAXEN,TRIM0#
main73230-60530-C0i200908-201308
BLACK,TRIM1#
main73230-60530-C0i201308-201708
BLACK,TRIM2#
main73230-60550-A0i200908-201308
IVORY,TRIM0#
main73230-60550-A2i201308-201708
FLAXEN,TRIM0#
main73230-60550-C0i201308-201708
BLACK,TRIM2#
main73230-60550-C0i200908-201308
BLACK,TRIM1#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9167380616
main91673-80616

15 parts on this diagram · 8 diagrams in section
