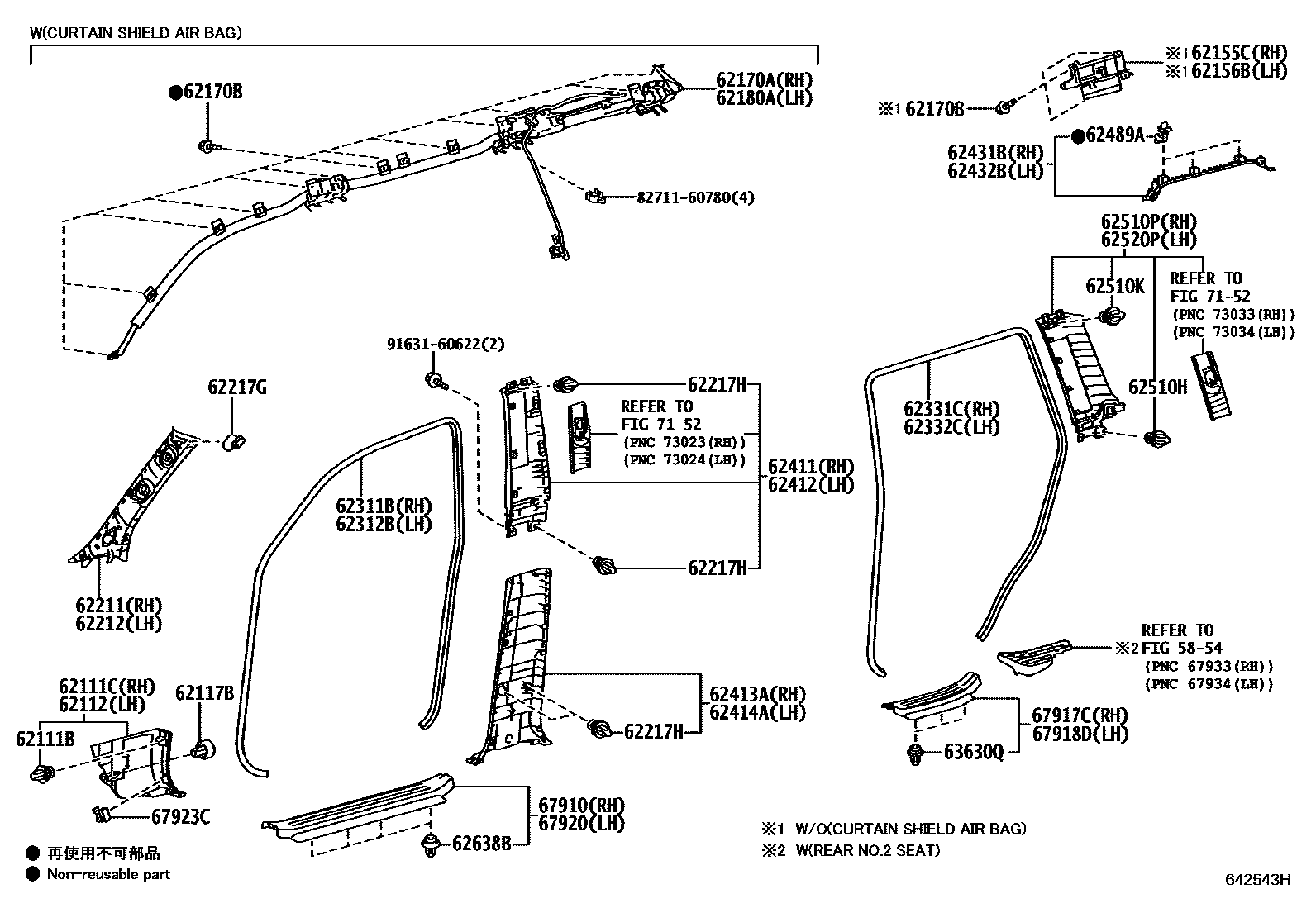

INSIDE TRIM BOARD
5854
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
FLAXEN,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
FLAXEN,TRIM0#
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62155CBRACKET, CURTAIN SHIELD AIRBAG, RH
62156BBRACKET, CURTAIN SHIELD AIRBAG, LH
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))
sub62170-60121
62170BBOLT, W/WASHER
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT))
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))
sub62180-60101
62211GARNISH, FRONT PILLAR, RH
IVORY,TRIM0#
sub62210-60191
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
FLAXEN,TRIM0#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),FLAXEN,TRIM0#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),FLAXEN,TRIM0#
LT.GRAY,TRIM2#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),LT.GRAY,TRIM2#
62212GARNISH, FRONT PILLAR, LH
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),FLAXEN,TRIM0#
FLAXEN,TRIM0#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),FLAXEN,TRIM0#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),FLAXEN,TRIM0#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),FLAXEN,TRIM0#
FLAXEN,TRIM0#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
IVORY,TRIM0#
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
MD.GRAY,TRIM1#
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411GARNISH, CENTER PILLAR, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
62412GARNISH, CENTER PILLAR, LH
IVORY,TRIM0#
62413AGARNISH, CENTER PILLAR, LOWER RH
IVORY,TRIM0#
FLAXEN,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
62414AGARNISH, CENTER PILLAR, LOWER LH
IVORY,TRIM0#
FLAXEN,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
62431BGARNISH, ROOF SIDE RAIL, NO.1 RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
LT.GRAY,TRIM1#
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM2#
62432BGARNISH, ROOF SIDE RAIL, NO.1 LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
LT.GRAY,TRIM1#
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
LT.GRAY,TRIM1#
62489ACLIP, ROOF SIDE INNER GARNISH
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
62510KCLIP(FOR QUARTER TRIM FRONT PANEL)
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
LT.GRAY,TRIM1#
sub62510-60C81
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),FLAXEN,TRIM0#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),FLAXEN,TRIM0#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),FLAXEN,TRIM0#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),FLAXEN,TRIM0#
FLAXEN,TRIM0#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),LT.GRAY,TRIM2#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
IVORY,TRIM0#
sub62520-60B11
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),FLAXEN,TRIM0#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),FLAXEN,TRIM0#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),LT.GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),LT.GRAY,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),FLAXEN,TRIM0#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),FLAXEN,TRIM0#
FLAXEN,TRIM0#
SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT)),LT.GRAY,TRIM2#
62638BCLIP
63630QCLIP
67910PLATE ASSY, DOOR SCUFF, RH
MD.GRAY,TRIM1#
FLAXEN,TRIM0#
BLACK,TRIM2#
67917CPLATE, REAR DOOR SCUFF, RH
FLAXEN,TRIM0#
BLACK,TRIM2#
67918DPLATE, REAR DOOR SCUFF, LH
FLAXEN,TRIM0#
BLACK,TRIM2#
67920PLATE ASSY, DOOR SCUFF, LH
IVORY,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
67923CCLAMP, DOOR SCUFF PLATE, NO.1
7152
8271160780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9163160622
39 parts on this diagram · 5 diagrams in section
