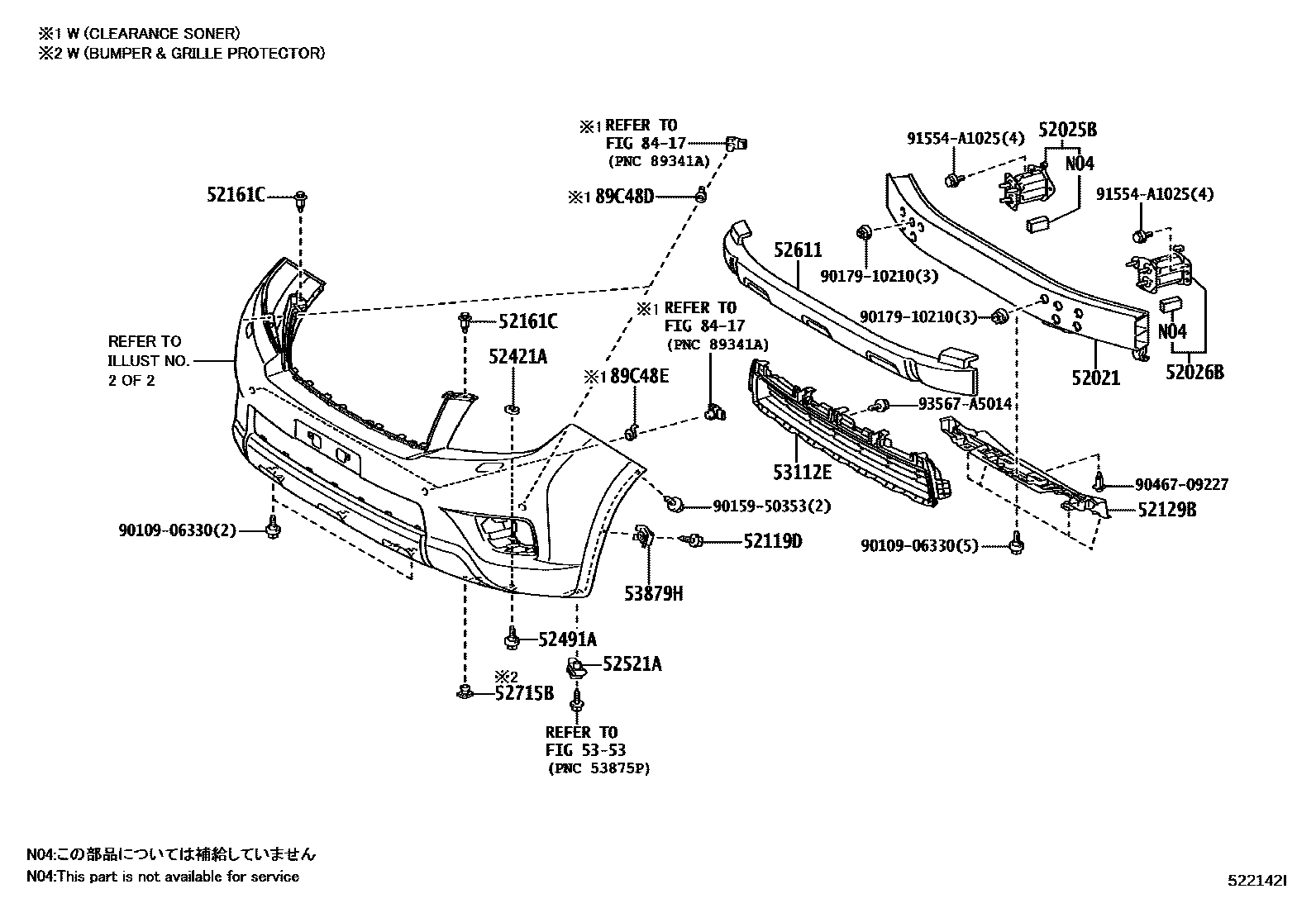

FRONT BUMPER & BUMPER STAY
52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52119DSCREW, NO.1
52129BCOVER, FRONT BUMPER, LOWER
52161CPIECE, FRONT BUMPER
sub52161-0K040
52421APAD, FRONT BUMPER
52491ABOLT, BUMPER PAD
52521RETAINER, FRONT BUMPER, UPPER CENTER
52521ACLIP(FOR FRONT BUMPER RETAINER)
52611ABSORBER, FRONT BUMPER ENERGY
52715BINSERT, FRONT BUMPER MOULDING
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&BUMPER & GRILLE PROTECTOR-WITH
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
5353
53879HRETAINER, FRONT FENDER LINER
8417
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040
AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),WHITE PEARL CS.,070
AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),SILVER ME.,1F7
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. STEEL MC.,1H2
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218
AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),BLACK,202
AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED M.M.,3R3
AUDIO(FOR OVERSEAS MARKET)-*NS & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3
AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4
AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),DK.BLUE MC.,8S6
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1F7
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. STEEL MC.,1H2
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BLACK,202
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BLACKISH RED MC.,3R0
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),GREEN M.M.,6V2
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),GRAYISH BLUE ME.,8R3
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040
AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),WHITE PEARL CS.,070
AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),SILVER ME.,1F7
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. STEEL MC.,1H2
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218
AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),BLACK,202
AUDIO(FOR OVERSEAS MARKET)-AVN(PIONEER) & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED M.M.,3R3
AUDIO(FOR OVERSEAS MARKET)-*NS & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3
AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4
AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT& REAR),DK.BLUE MC.,8S6
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1F7
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. STEEL MC.,1H2
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BLACK,202
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BLACKISH RED MC.,3R0
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),GREEN M.M.,6V2
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),GRAYISH BLUE ME.,8R3
9010906330
main90109-06330
9015950353
main90159-50353
9017910210
main90179-10210
9046709227
main90467-09227
91554A1025
main91554-A1025
93567A5014
main93567-A5014
24 parts on this diagram · 4 diagrams in section
