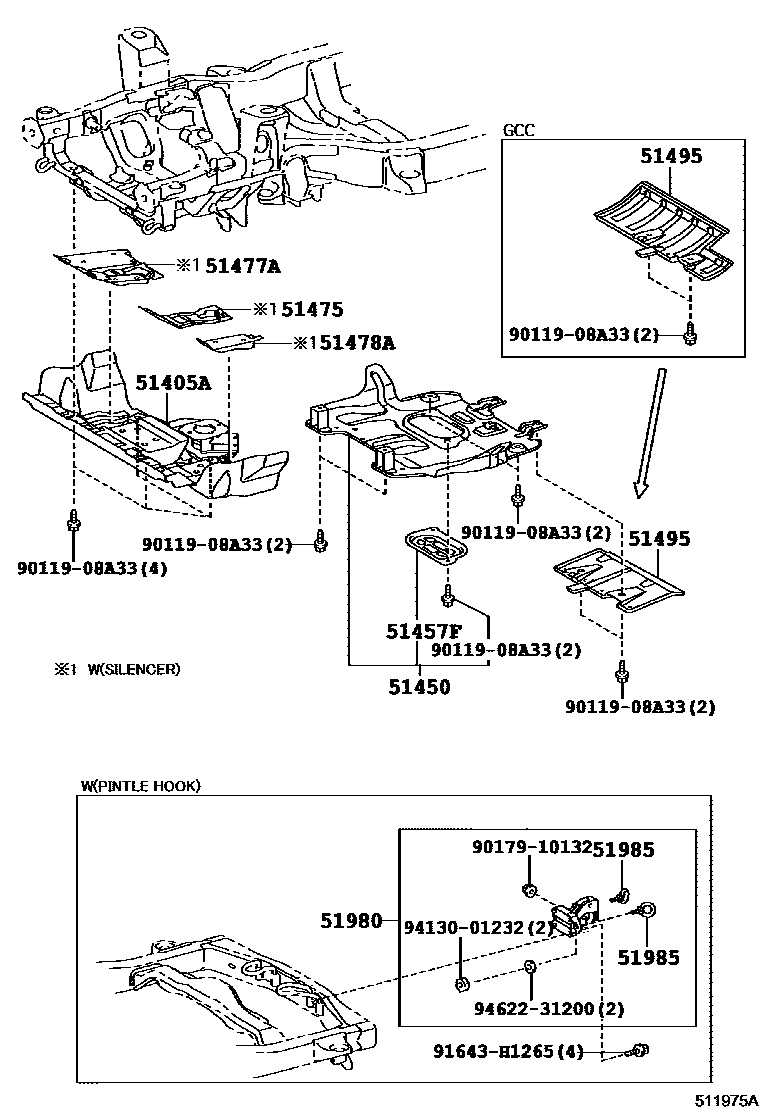

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1W(KDSS)

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60210iTRJ150..RHD200908-201110

main51405-60230iGDJ150,KDJ150201506

main51405-60220iGRJ150..6F..GCC200908-201308

VX-L PACKAGE

main51405-60240iKDJ150..GCC,GEN201308-201506

VX-L PACKAGE

51450COVER ASSY, ENGINE UNDER, REAR

main51450-60050iGRJ150,LJ150,TRJ15#201308-201506

main51450-60060iGDJ150,KDJ150201506

sub51450-60061

51457FSEAL, ENGINE UNDER COVER

main51457-60030iGRJ150,KDJ150,LJ150,TRJ15#201308-201506

51475SILENCER, ENGINE UNDER COVER, NO.5

main51475-60010iKDJ150..6F..GCC200908-201110

sub51475-60011

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-60060iKDJ150..6F..GCC200908-201110

sub51477-60061

main51477-60070iGDJ150..6FC201506

STABILIZER-WITH(KDSS)

sub51477-60071

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-60070iGDJ150,KDJ150201506

sub51478-60071

main51478-60080iKDJ150..GCC,GEN;GRJ150,KDJ150..6F..ARL200908-201110

VX-L PACKAGE

sub51478-60081

51495COVER, TRANSMISSION UNDER

main51495-60370iKDJ150..6F..GCC200908-201110

main51495-60380iGDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN201506

51980HOOK ASSY, PINTLE

main51980-35010iTRJ150..RHD;KDJ150..6F..GCC200908-201110

TOWING HITCH-WITH(PINTLE HOOK)

51985HOOK, EYELET PINTLE

main51985-60011×2iTRJ150..RHD;KDJ150..6F..GCC200908-201110

TOWING HITCH-WITH(PINTLE HOOK)

9011908A33

main90119-08A33

9017910132

main90179-10132

91643H1265

main91643-H1265

9413001232

main94130-01232

9462231200

main94622-31200

14 parts on this diagram · 2 diagrams in section
