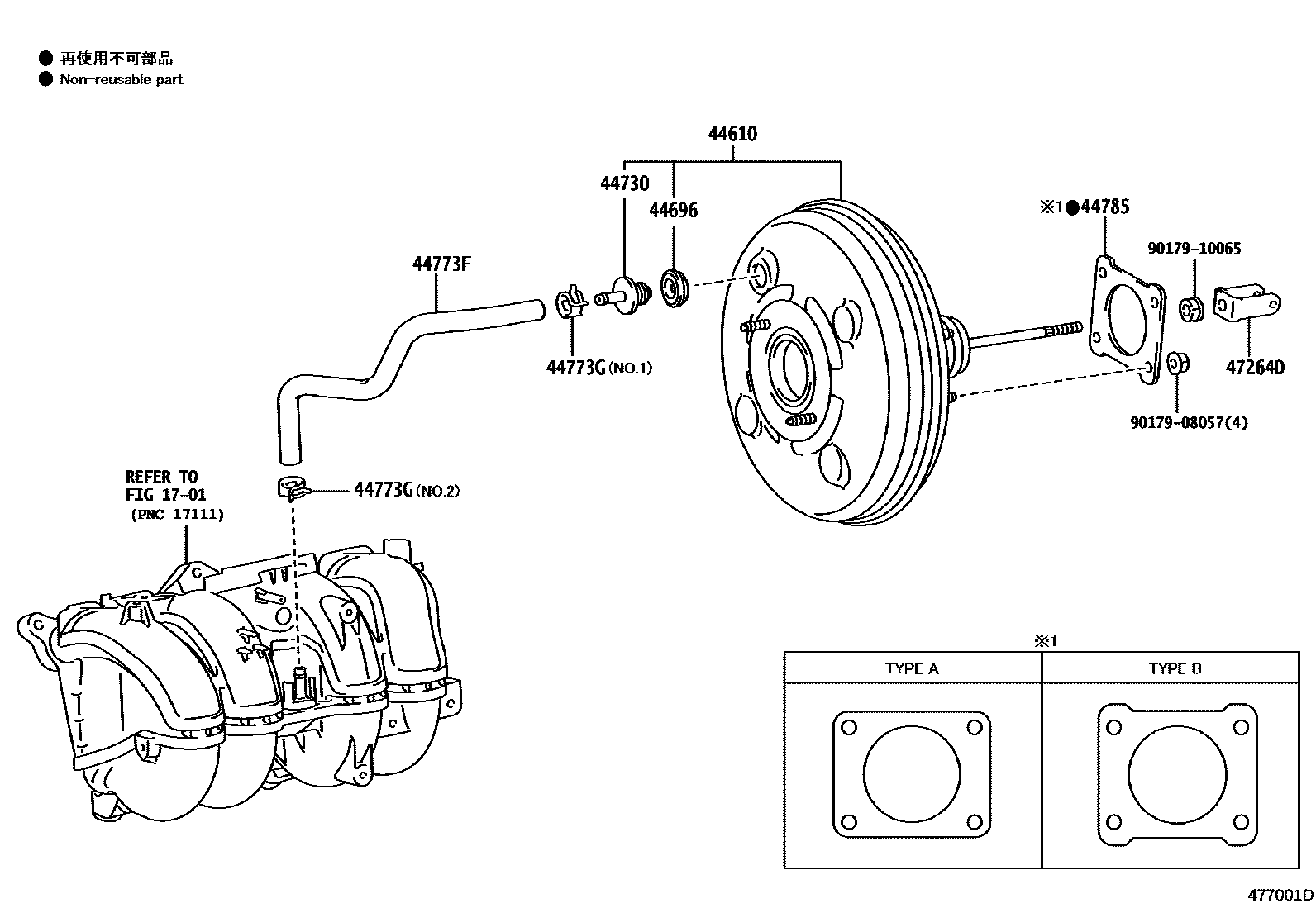

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701

44610BOOSTER ASSY, BRAKE

main44610-6A300iTRJ150..RHD200908-201110

main44610-6A310iTRJ15#201308-201506

main44610-6A330iLJ150..RHD201308-201506

main44610-6A340iLJ150..LHD200908-201308

44696GROMMET, CHECK VALVE

main90480-24439iTRJ150..RHD200908-201110

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iTRJ150..RHD200908-201110

main44730-60050iLJ150200908-201308

main44730-60070iTRJ15#..LHD200908-201308

44773FHOSE, UNION TO CHECK VALVE

main44773-60300iTRJ15#..LHD200908-201308

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iTRJ15#..LHD200908-201308

NO.2

main96133-41500iTRJ15#201308-201506

NO.1

44785GASKET, BRAKE BOOSTER

main44785-60020iLJ150,TRJ15#201701-201707

TYPE A:REFER ILLUST.

main44785-60030iTRJ150..RHD200908-201110

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iLJ150,TRJ15#201308-201506

9017908057

main90179-08057

9017910065

main90179-10065

10 parts on this diagram · 4 diagrams in section
