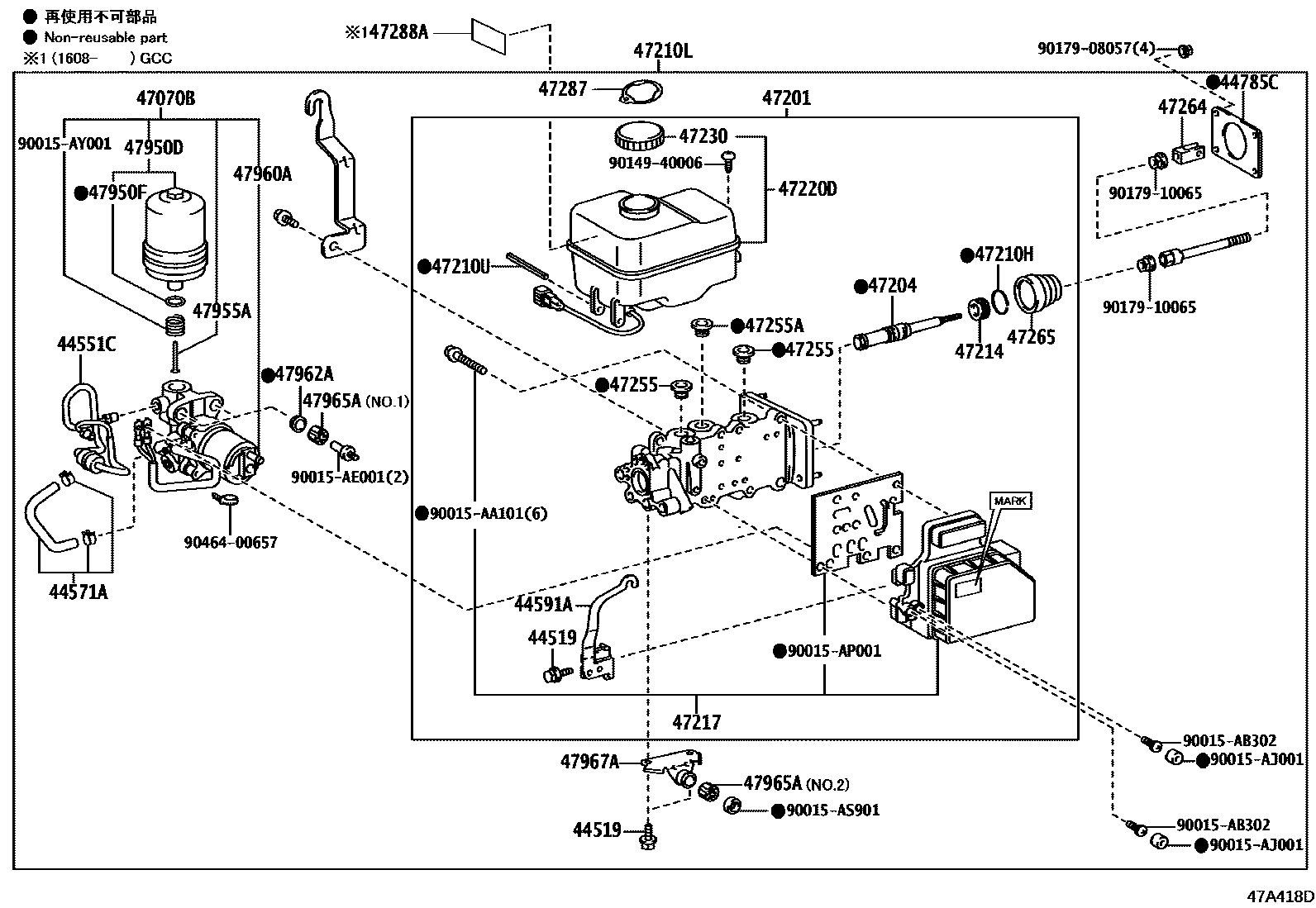

BRAKE MASTER CYLINDER

0001 1 0002 1

44519BOLT, BRAKE ACTUATOR

main44519-24020iGRJ150,KDJ150200908-201506

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-60060iKDJ150..6F..GCC200908-201506

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-60020iKDJ150..6F..GCC200908-201506

44591ABRACKET, BRAKE ACTUATOR, NO.1

main44591-35070iKDJ150..6F..GCC200908-201506

main44591-35070iGDJ150,GRJ150,KDJ150201506

CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)

44785CGASKET, BRAKE BOOSTER

main44785-60020iGDJ150,GRJ150,KDJ150200908-201506

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-60050iGRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47025-60230iGRJ150,KDJ150200908-201010

MARK=89541-60190

main47025-60231iGRJ150,KDJ150201010-201110

MARK=89541-60191

main47025-60420iGRJ150,KDJ150..GEN201308-201506

main47025-60421iGRJ150,KDJ150..GEN201506

main47025-60430iKDJ150..RHD..6F..GEN201308-201506

*350

main47025-60430iKDJ150..RHD..6F..GEN201308-201506

CRUISE CONTROL-WITH&*351

main47025-60430iKDJ150..RHD..6F..GEN201308-201506

SOUTH AFRICA SPEC

main47025-60431iGDJ150,GRJ150,KDJ150..ARL,GCC201506

SOUTH AFRICA SPEC

main47025-60431iGDJ150,GRJ150,KDJ150..ARL,GCC201506

CRUISE CONTROL-WITH&*351

main47025-60431iGDJ150,GRJ150,KDJ150..ARL,GCC201506

*350

main47025-60450iGRJ150,KDJ150201110-201210

MARK=89541-60191

main47025-60451iGRJ150,KDJ150201210-201308

MARK=89541-60192

main47201-60A10iLJ150..RHD200908-201202

sub47201-60A11

main47201-60A11iLJ150..RHD201203-201204

sub47201-60A12

main47201-60A12iLJ150..RHD201205-201506

main47201-60A20iTRJ15#..4FC200908-201202

sub47201-60A21

main47201-60A21iTRJ15#..4FC201203-201204

sub47201-60A22

main47201-60A22iTRJ15#..4FC201205-201506

main47201-60A30iLJ150,TRJ150..LHD..5F200908-201202

sub47201-60A31

main47201-60A31iLJ150,TRJ150..LHD..5F201203-201204

sub47201-60A32

main47201-60A32iLJ150,TRJ150..LHD..5F201205-201506

47204PISTON, MASTER CYLINDER

main47026-60090iGRJ150,KDJ150200908-201506

47210HRING, SNAP(FOR BRAKE MASTER CYLINDER)

main90520-32012iGRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-60200iGRJ150,KDJ150200908-201010

MARK=89541-60190

main47050-60201iGRJ150,KDJ150201010-201110

MARK=89541-60191

main47050-60410iGRJ150,KDJ150201110-201210

MARK=89541-60191

main47050-60411iGRJ150,KDJ150201210-201308

MARK=89541-60192

main47050-60590iGRJ150,KDJ150..GEN201308-201506

main47050-60591iGRJ150,KDJ150..GEN201506

main47050-60600iKDJ150..RHD..5FC..GEN201308-201506

SOUTH AFRICA SPEC

main47050-60600iKDJ150..RHD..5FC..GEN201308-201506

*350

main47050-60600iKDJ150..RHD..5FC..GEN201308-201506

CRUISE CONTROL-WITH&*351

main47050-60601iGDJ150,GRJ150,KDJ150..ARL,GCC201506

SOUTH AFRICA SPEC

main47050-60601iGDJ150,GRJ150,KDJ150..ARL,GCC201506

CRUISE CONTROL-WITH&*351

main47050-60601iGDJ150,GRJ150,KDJ150..ARL,GCC201506

*350

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iKDJ150..6F..GCC200908-201506

47214PLUG, MASTER CYLINDER

main47027-60090iKDJ150..6F..GCC200908-201506

47217SOLENOID, MASTER CYLINDER

main47217-60130iGRJ150,KDJ150200908-201010

MARK=89541-60190

main47217-60131iGRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC201010-201210

MARK=89541-60191

main47217-60132iGRJ150,KDJ150201210-201308

MARK=89541-60192

main47217-60440iGRJ150,KDJ150..GEN201308-201506

main47217-60441iGRJ150,KDJ150..GEN201506

main47217-60450iKDJ150..RHD..5FC..GEN201308-201506

CRUISE CONTROL-WITH&*351

main47217-60450iKDJ150..RHD..5FC..GEN201308-201506

*350

main47217-60450iGRJ150,KDJ150..ARL,GCC201308-201506

SOUTH AFRICA SPEC

main47217-60451iGDJ150,GRJ150,KDJ150..ARL,GCC201506

SOUTH AFRICA SPEC

main47217-60451iGDJ150,GRJ150,KDJ150..ARL,GCC201506

CRUISE CONTROL-WITH&*351

main47217-60451iGDJ150,GRJ150,KDJ150..ARL,GCC201506

*350

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-60180iGDJ150,GRJ150,KDJ150..ARL,GCC201506

CRUISE CONTROL-WITH&*351

main47220-60180iKDJ150..6F..GCC200908-201506

main47220-60180iGRJ150,KDJ150..GEN201506

SOUTH AFRICA SPEC

main47220-60180iGRJ150,KDJ150..GEN201506

CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)

main47220-60180iGRJ150,KDJ150..GEN201506

*350

main47220-60220iLJ150..RHD200908-201506

main47220-60230iTRJ15#..4FC200908-201506

main47220-60240iLJ150,TRJ150..LHD..5F200908-201506

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iLJ150,TRJ15#200908-201506

main47230-24010iGRJ150,KDJ150200908-201010

sub47230-47090

main47230-47090iKDJ150..RHD..5FC201612

CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)

main47230-47090iKDJ150..RHD..5FC201612

*350

main47230-47090iGDJ150,GRJ150,KDJ150..ATM..(ARL,GCC)201612

SOUTH AFRICA SPEC

main47230-47090iGDJ150,GRJ150,KDJ150..ATM..(ARL,GCC)201612

CRUISE CONTROL-WITH&*351

main47230-60210iGRJ150,KDJ150..GEN201506-201612

*350

sub47230-47090

main47230-60210iKDJ150..6F..GCC201010-201506

sub47230-47090

main47230-60210iGRJ150,KDJ150..GEN201506-201612

SOUTH AFRICA SPEC

sub47230-47090

main47230-60210iGRJ150,KDJ150..GEN201506-201612

CRUISE CONTROL-WITH&*351

sub47230-47090

main47230-60210iGRJ150,KDJ150..GEN201506-201612

CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGRJ150,KDJ150200908-201506

main90029-48001iLJ150,TRJ15#200908-201506

sub90016-AT001

47255AGROMMET, MASTER CYLINDER RESERVOIR, NO.2

main31417-35010iGRJ150,KDJ150200908-201506

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iKDJ150..6F..GCC200908-201506

47265BOOT, MASTER CYLINDER

main90029-70001iKDJ150..6F..GCC200908-201506

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iLJ150,TRJ15#201608-201708

main47287-20010iTRJ150..LHD;LJ150,TRJ155200908-201608

main47287-60180iKDJ150..6F..GCC200908-201201

sub47287-60181

main47287-60181iGRJ150,KDJ150201202-201612

main47287-60182iGDJ150,GRJ150,KDJ150201612-201708

47288ALABEL, BRAKE FLUID NOTICE

main47288-71010iGRJ150,KDJ150,TRJ15#..GCC201608

47950DACCUMULATOR ASSY, BRAKE BOOSTER

main47950-60020iKDJ150..6F..GCC200908-201506

47950FRING, O(FOR BRAKE BOOSTER ACCUMULATOR)

main90301-13014iGRJ150,KDJ150200908-201506

47955APIPE, BRAKE BOOSTER ACCUMULATOR

main47955-60010iGRJ150,KDJ150200908-201506

47960APUMP ASSY, BRAKE BOOSTER

main47960-60050iGRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

47962ACOLLAR, BRAKE BOOSTER PUMP

main47962-60090iGRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

47965ABUSH, BRAKE BOOSTER PUMP

main47965-30010iKDJ150..6F..GCC200908-201506

NO.1

main90015-AL001iGRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

NO.2

47967ABRACKET, BRAKE BOOSTER PUMP, NO.1

main47967-60090iGRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201506

90015AA101

main90015-AA101

90015AB302

main90015-AB302

90015AE001

main90015-AE001

90015AJ001

main90015-AJ001

90015AP001

main90015-AP001

90015AS901

main90015-AS901

90015AY001

main90015-AY001

9014940006

main90149-40006

9017908057

main90179-08057

9017910065

main90179-10065

9046400657

main90464-00657
