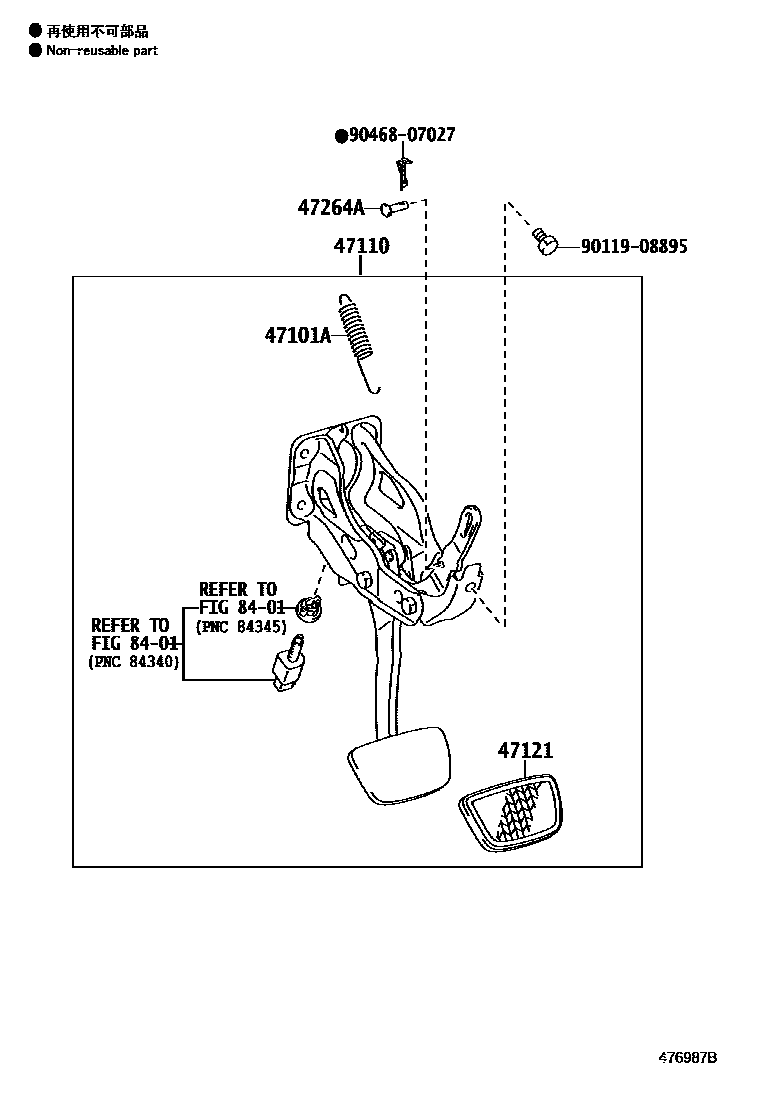

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20034iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#200908-201506

47110SUPPORT ASSY, BRAKE PEDAL

main47110-60300iLJ150,TRJ150..RHD200908-201001

sub47110-60301

main47110-60301iLJ150..RHD201002-201308

main47110-60302iLJ150..RHD201308-201511

sub47110-60303

main47110-60303iLJ150..RHD201512

main47110-60310iTRJ15#..4FC200908-201001

sub47110-60311

main47110-60311iTRJ15#..4FC201002-201308

main47110-60312iTRJ15#..4FC201308-201511

sub47110-60313

main47110-60313iTRJ15#..6FC201512

main47110-60320iLJ150,TRJ150..LHD..5F200908-201001

sub47110-60321

main47110-60321iLJ150,TRJ150..LHD..5F201002-201308

main47110-60322iLJ150,TRJ150..LHD..5F201308-201511

sub47110-60323

main47110-60323iLJ150,TRJ150..LHD..5F201512

sub47110-60324

main47110-60330iGRJ150,KDJ150..RHD..5FC200908-201001

sub47110-60331

main47110-60331iGRJ150,KDJ150..RHD..5FC201002-201308

main47110-60332iGDJ150,GRJ150,KDJ150..RHD..ATM201308-201506

main47110-60340iGRJ150,KDJ150..RHD..6F200908-201001

sub47110-60341

main47110-60341iGRJ150,KDJ150..RHD..6F201002-201308

main47110-60342iKDJ150..RHD..6F201308-201506

main47110-60350iGRJ150,KDJ150..LHD..5FC200908-201001

sub47110-60351

main47110-60351iGRJ150,KDJ150..LHD..5FC201002-201308

main47110-60352iGRJ150,KDJ150..LHD..5FC201308-201506

main47110-60360iGRJ150,KDJ150..LHD..6F200908-201001

sub47110-60361

main47110-60361iKDJ150..6F..GCC201002-201308

main47110-60362iGRJ150,KDJ150..LHD..6F201308-201506

47121PAD, BRAKE PEDAL

main31321-52010iGDJ150,GRJ150,KDJ150,LJ150,TRJ150..MTM200908-201512

main31321-52020iGDJ150,GRJ150,KDJ150,LJ150,TRJ150..MTM201512

main47121-50020iGRJ150,KDJ150,TRJ15#..ATM200908-201506

47264APIN(FOR PUSH ROD)

main90240-06027iGRJ150,KDJ150200908-201506

main90249-06180iTRJ150..RHD200908-201506

8401

9011908895

main90119-08895

9046807027

main90468-07027

7 parts on this diagram · 2 diagrams in section
