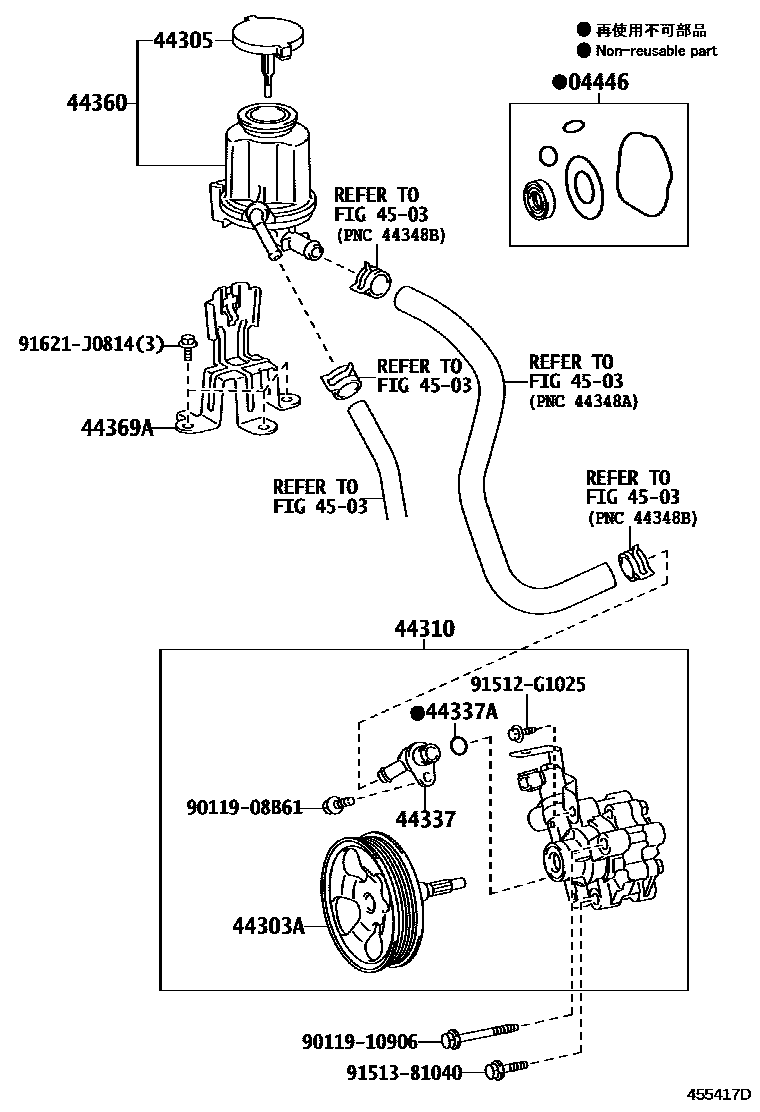

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iGDJ150,TRJ15#201506

main04446-35070iKDJ150201308-201506

main04446-53030iLJ150201506

main04446-60260iGRJ150201308-201506

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iTRJ150..RHD200908-201110

main44303-60020iGRJ150201308-201506

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22060supersedes 44305-22061iTRJ150..RHD200908-201110

main44305-22061iTRJ15#201506

main44305-28060iKDJ150..6F..GCC200908-201110

main44305-28061iGDJ150,GRJ150,KDJ150,LJ150201506

44310PUMP ASSY, VANE

main44310-60540iGRJ150200908-201305

main44310-60541iGRJ150201308-201506

sub44310-60542

main44310-60550iKDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201305

main44310-60551iKDJ150201308-201506

sub44310-60552

main44310-60560iTRJ150..RHD200908-201110

sub44310-60561

main44310-60562iTRJ15#201506

sub44310-60563

main44310-60660iGDJ150201506

sub44310-60661

main44320-60360iLJ150200908-201308

main44310-35710supersedes 44310-60562iTRJ150201308-201506

W(ABS ONLY)

44337UNION, POWER STEERING SUCTION PORT

main44337-35070iLJ150201506

main44337-60230iGRJ150201506

main44337-60240iKDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201308

main44337-60260iGDJ150201506

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iLJ150201506

main90301-11020iKDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201308

main90301-15025iGRJ150200908-201308

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60320iGRJ150200908-201207

main44360-60321iGRJ150201506

main44360-60330iKDJ150..6F..GCC200908-201110

main44360-60331iKDJ150,LJ150201308-201506

main44360-60340iGDJ150201506

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-60080iGRJ150200908-201308

main44369-60090iKDJ150,LJ150201506

main44369-60100iGDJ150201506

4503

9011908B61

main90119-08B61

9011910906

main90119-10906

91512G1025

main91512-G1025

9151381040

main91513-81040

91621J0814

main91621-J0814

14 parts on this diagram · 5 diagrams in section
