FRONT AXLE HOUSING & DIFFERENTIAL

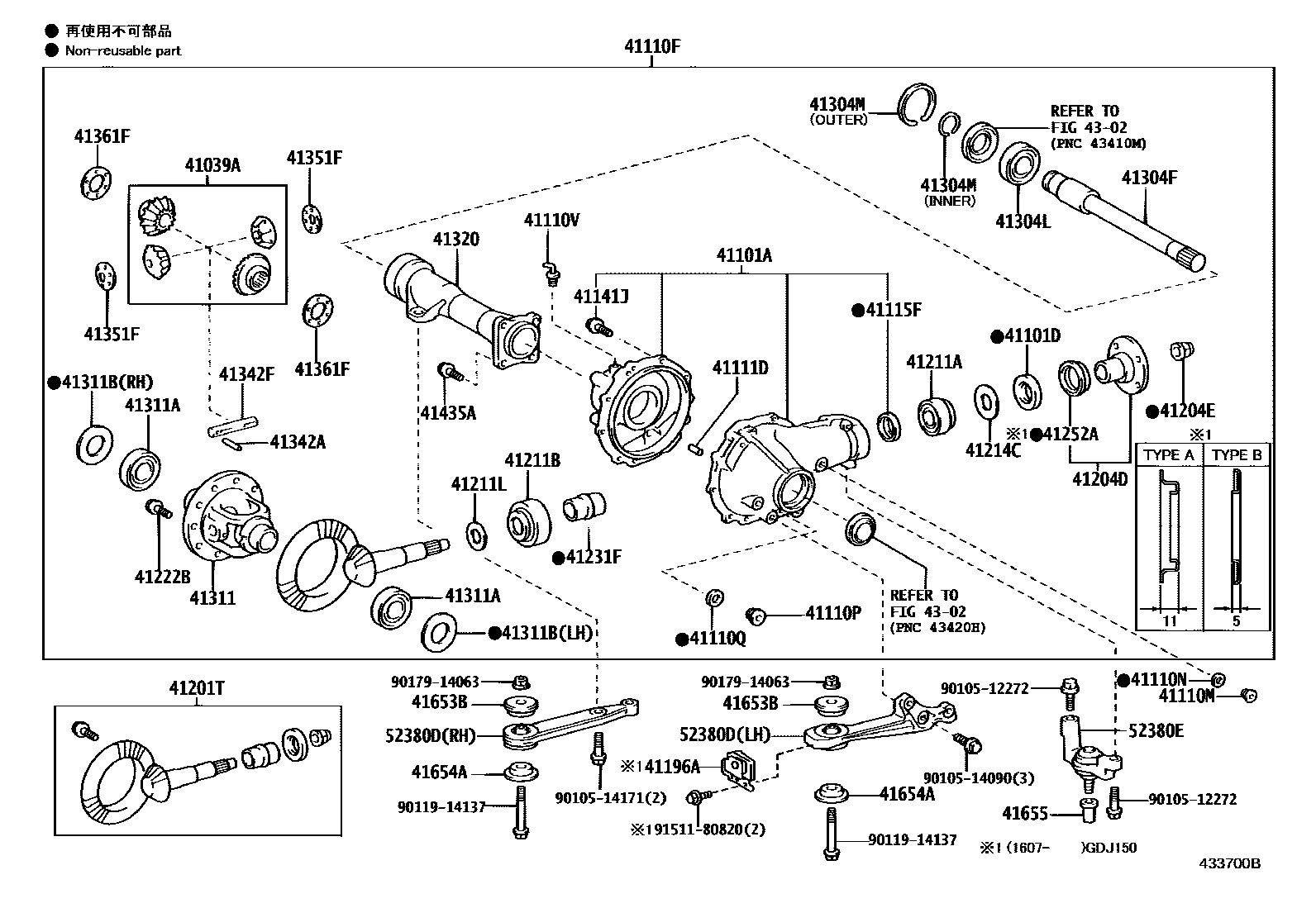

Parts diagram
41039AGEAR KIT, DIFFERENTIAL
main41039-35010i200908-201308
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
main41101-35160i200908-201110
main41101-35220i201508
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
main90311-41009i200908-201110
main90311-41015i201504-201506
PNC 41252A=TYPE B
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
main41110-3D420i201308-201503
*FGR=41:11=3.727
main41110-3D421i201504-201506
*FGR=41:11=3.727
sub41110-3D422
main41110-3D430i200908-201308
*FGR=43:11=3.909
main41110-3D431i201506-201508
*FGR=43:11=3.909
main41110-3D432i201508-201708
*FGR=43:11=3.909
main41110-3D460i200908-201110
*FGR=41:9=4.555
main41110-3D461i201506-201508
*FGR=41:9=4.555
main41110-3D462i201508-201708
*FGR=41:9=4.555
main41110-60C80i201506-201708
*FGR=43:9=4.777
main41110-60C90i201506-201708
*FGR=41:11=3.727
main41110-60D00i201506-201708
*FGR=43:11=3.909
41110MPLUG, FRONT DIFFERENTIAL FILLER
main90341-18032i201112-201308
main90341-18066i200908-201111
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
main12157-10010i200908-201308
41110PPLUG, FRONT DIFFERENTIAL DRAIN
main90341-24014i200908-201110
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
main90430-24003i200908-201110
sub90430-24017
41110VUNION (FOR FRONT DIFFERENTIAL)
main90404-08004i200908-201110
main90405-08032i201506
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
main90250-10017×2i200908-201308
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
main41115-35010i200908-201110
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
main90105-10391×10i201308-201506
*10-1.25PX24.5-18
41196ADAMPER, FRONT DIFFERENTIAL DYNAMIC
main41196-60060i201607
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
main41201-80194i200908-201308
*FGR=41:11=3.727
main41201-80195i200908-201308
*FGR=43:11=3.909
main41201-80198i200908-201110
*FGR=41:9=4.555
main41201-80783i201506
*FGR=43:9=4.777
main41201-80785i201506
*FGR=43:11=3.909
main41201-80790i201501-201503
*FGR=41:11=3.727
main41201-80791i201504-201506
*FGR=41:11=3.727
main41201-80792i201501-201503
*FGR=43:11=3.909
main41201-80793i201501-201504
*FGR=41:9=4.555
main41201-80796i201504-201506
*FGR=41:9=4.555
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
main41204-35110i200908-201308
main41204-71030i201504-201506
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
main90177-22003i200908-201110
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
main90366-30067i200908-201308
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
main90366-35087i201506
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
main90564-35109i201308-201506
OD=52,T=1.70
main90564-35110i200908-201308
OD=52,T=1.73
main90564-35111i201308-201506
OD=52,T=1.76
main90564-35112i201308-201506
OD=52,T=1.79
main90564-35113i200908-201308
OD=52,T=1.82
main90564-35114i201506
OD=52,T=1.85
main90564-35115i200908-201308
OD=52,T=1.88
main90564-35116i201506
OD=52,T=1.91
main90564-35117i201506
OD=52,T=1.94
main90564-35118i201308-201506
OD=52,T=1.97
main90564-35119i201506
OD=52,T=2.00
main90564-35120i201308-201506
OD=52,T=2.03
main90564-35121i201308-201506
OD=52,T=2.06
main90564-35123i200908-201308
OD=52,T=2.09
main90564-35124i201308-201506
OD=52,T=2.12
main90564-35125i201506
OD=52,T=2.15
main90564-35126i200908-201308
OD=52,T=2.18
main90564-35127i201308-201506
OD=52,T=2.21
main90564-35128i201506
OD=52,T=2.24
main90564-35129i201308-201506
OD=52,T=2.27
main90564-35130i200908-201308
OD=52,T=2.30
main90564-35131i201506
OD=52,T=2.33
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
main41214-26011i200908-201308
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
main90901-05002×10i200908-201110
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
main41231-35040i200908-201110
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
main41252-35050i200908-201110
main41252-71030i201504-201506
TYPE B:REFER ILLUST.
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
main41337-35050i201308-201506
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
main90363-43001i201506
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
main90520-41014i200908-201110
INNER
main90520-75002i201506
OUTER
41311CASE, FRONT DIFFERENTIAL
main41311-35090i200908-201110
main41311-35100i201506
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
main90366-53001×2i201308-201506
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
main90564-50124i200908-201308
T=1.60,LH
main90564-50126i201308-201506
T=1.66,LH
main90564-50128i201506
T=1.72,LH
main90564-50130i201506
T=1.78,LH
main90564-50132i201506
T=1.84,LH
main90564-50134i201308-201506
T=1.90,LH
main90564-50136i201308-201506
T=1.96,LH
main90564-50138i201506
T=2.02,LH
main90564-50140i200908-201110
T=2.08,LH
main90564-50142i201308-201506
T=2.14,LH
main90564-50154i201308-201506
T=1.60,RH
main90564-50156i201506
T=1.66,RH
main90564-50158i200908-201308
T=1.72,RH
main90564-50160i200908-201308
T=1.78,RH
main90564-50162i201506
T=1.84,RH
main90564-50164i200908-201110
T=1.90,RH
main90564-50166i200908-201308
T=1.96,RH
main90564-50168i200908-201110
T=2.02,RH
main90564-50170i200908-201110
T=2.08,RH
main90564-50172i200908-201110
T=2.14,RH
main90564-50184i201308-201506
T=1.58,LH
main90564-50185i201308-201506
T=1.62,LH
main90564-50186i200908-201110
T=1.64,LH
main90564-50187i200908-201110
T=1.68,LH
main90564-50188i200908-201308
T=1.70,LH
main90564-50189i201308-201506
T=1.74,LH
main90564-50190i201308-201506
T=1.76,LH
main90564-50191i201308-201506
T=1.80,LH
main90564-50192i200908-201110
T=1.82,LH
main90564-50193i201506
T=1.86,LH
main90564-50194i201506
T=1.88,LH
main90564-50195i201308-201506
T=1.92,LH
main90564-50196i200908-201308
T=1.94,LH
main90564-50197i201506
T=1.98,LH
main90564-50198i201308-201506
T=2.00,LH
main90564-50199i200908-201110
T=2.04,LH
main90564-50200i201506
T=2.06,LH
main90564-50201i201308-201506
T=2.10,LH
main90564-50202i200908-201308
T=2.12,LH
main90564-50203i200908-201110
T=2.16,LH
main90564-50204i201308-201506
T=1.58,RH
main90564-50205i201308-201506
T=1.62,RH
main90564-50206i201308-201506
T=1.64,RH
main90564-50207i201308-201506
T=1.68,RH
main90564-50208i200908-201110
T=1.70,RH
main90564-50209i200908-201110
T=1.74,RH
main90564-50210i201308-201506
T=1.76,RH
main90564-50211i201308-201506
T=1.80,RH
main90564-50212i201308-201506
T=1.82,RH
main90564-50213i200908-201308
T=1.86,RH
main90564-50214i200908-201110
T=1.88,RH
main90564-50215i201308-201506
T=1.92,RH
main90564-50216i200908-201110
T=1.94,RH
main90564-50217i200908-201110
T=1.98,RH
main90564-50218i200908-201308
T=2.00,RH
main90564-50219i200908-201308
T=2.04,RH
main90564-50220i200908-201110
T=2.06,RH
main90564-50221i200908-201110
T=2.10,RH
main90564-50222i201506
T=2.12,RH
main90564-50223i200908-201308
T=2.16,RH
main90564-50224i201308-201506
T=1.44,RH
main90564-50225i201506
T=1.46,RH
main90564-50226i200908-201308
T=1.48,RH
main90564-50227i200908-201110
T=1.50,RH
main90564-50228i201506
T=1.52,RH
main90564-50229i201506
T=1.54,RH
main90564-50230i200908-201308
T=1.56,RH
main90564-50231i201308-201506
T=2.18,LH
main90564-50232i200908-201308
T=2.20,LH
main90564-50233i200908-201308
T=2.22,LH
main90564-50234i201506
T=2.24,LH
main90564-50235i201506
T=2.26,LH
main90564-50236i201308-201506
T=2.28,LH
main90564-50237i201308-201506
T=2.30,LH
41320TUBE ASSY, FRONT DIFFERENTIAL
main41321-35050i201308-201506
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
main90250-06058i200908-201308
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-35020i200908-201110
main41342-53020i201504-201506
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-35030×2i200908-201110
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-34010×2i201506
T=1.50
main41361-34020×2i201506
T=1.55
main41361-34030×2i200908-201308
T=1.60
main41361-34040×2i200908-201110
T=1.65
main41361-34050×2i201506
T=1.70
main41361-34060×2i200908-201110
T=1.75
main41361-34070×2i201308-201506
T=1.80
main41361-34080×2i201506
T=1.85
main41361-34090×2i200908-201110
T=1.90
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
main90107-12003×4i200908-201308
*12-1.25PX24-16.5
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
main41653-60030×2i200908-201308
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
main41654-60010×2i200908-201308
41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1
main41655-60020i200908-201110
4302
52380DSUPPORT ASSY, FRONT DIFFERENTIAL
main52380-60100i200908-201308
LH
main52380-60110i201308-201506
RH
52380ESUPPORT ASSY, DIFFERENTIAL
main52380-60120i200908-201110
9010512272
main90105-12272
9010514090
main90105-14090
9010514171
main90105-14171
9011914137
main90119-14137
9017914063
main90179-14063
9151180820
main91511-80820

47 parts on this diagram · 3 diagrams in section
