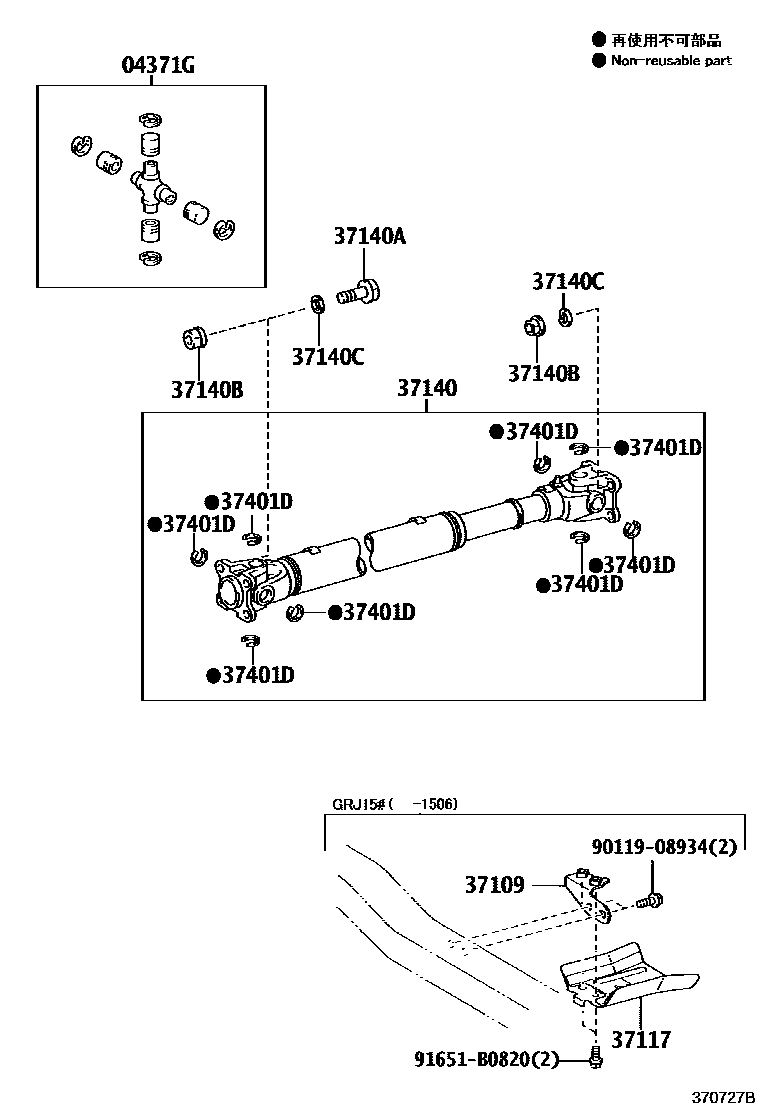

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1FRONT 0002 1REAR 0003 1REAR

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-60070×2iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

main37109-60010iGRJ150200908-201308

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-60010iGRJ150201308-201506

37140SHAFT ASSY, PROPELLER, FRONT

main37140-60380iLJ150,TRJ150..5F201506

main37140-60410iKDJ150..6F..GCC200908-201110

main37140-60470iGRJ150..6F201308-201506

main37140-60480iGDJ150..6FC201506-201612

main37140-60530iKDJ150..5FC201506

main37140-60650iGDJ150..6F201612

main37140-60660iGDJ150..6FC201612

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-11044×4iTRJ150..RHD;KDJ150..6F..GCC200908-201110

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90178-11001×8iTRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155200908-201308

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90201-11013×8iTRJ150..RHD;KDJ150..6F..GCC200908-201110

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-25039×4iTRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155200908-201308

T=2.29,MARK 1

main90520-25040×4iTRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155200908-201308

T=2.31,MARK 2

main90520-25041×4iTRJ150..RHD;KDJ150..6F..GCC200908-201110

T=2.33,NO MARK

main90520-25042×4iGRJ150,KDJ150,LJ150,TRJ15#201308-201506

T=2.35,BROWN

main90520-25043×4iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

T=2.37,BLUE

main90520-25044×4iGRJ150,KDJ150,LJ150,TRJ15#201308-201506

T=2.39,MARK 6

main90520-25045×4iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

T=2.41,MARK 7

main90520-25046×4iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

T=2.43,MARK 8

main90520-25047×4iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

T=2.45,MARK 9

main90520-25048×4iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

T=2.47,MARK 10

main90520-25049×4iTRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155200908-201308

T=2.49,MARK A

main90520-25050×4iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

T=2.51,MARK B

main90520-25051×4iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

T=2.53,MARK C

main90520-25052×4iTRJ150..RHD;KDJ150..6F..GCC200908-201110

T=2.55,MARK D

main90520-25053×4iTRJ150..RHD;KDJ150..6F..GCC200908-201110

T=2.57,MARK E

main90520-25054×4iTRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155200908-201308

T=2.19,MARK D

main90520-25055×4iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

T=2.21,MARK E

main90520-25056×4iGRJ150,KDJ150,LJ150,TRJ15#201308-201506

T=2.23,MARK F

main90520-25057×4iTRJ150..RHD;KDJ150..6F..GCC200908-201110

T=2.25,MARK G

main90520-25058×4iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

T=2.27,MARK H

9011908934

main90119-08934

91651B0820

main91651-B0820

10 parts on this diagram · 3 diagrams in section
