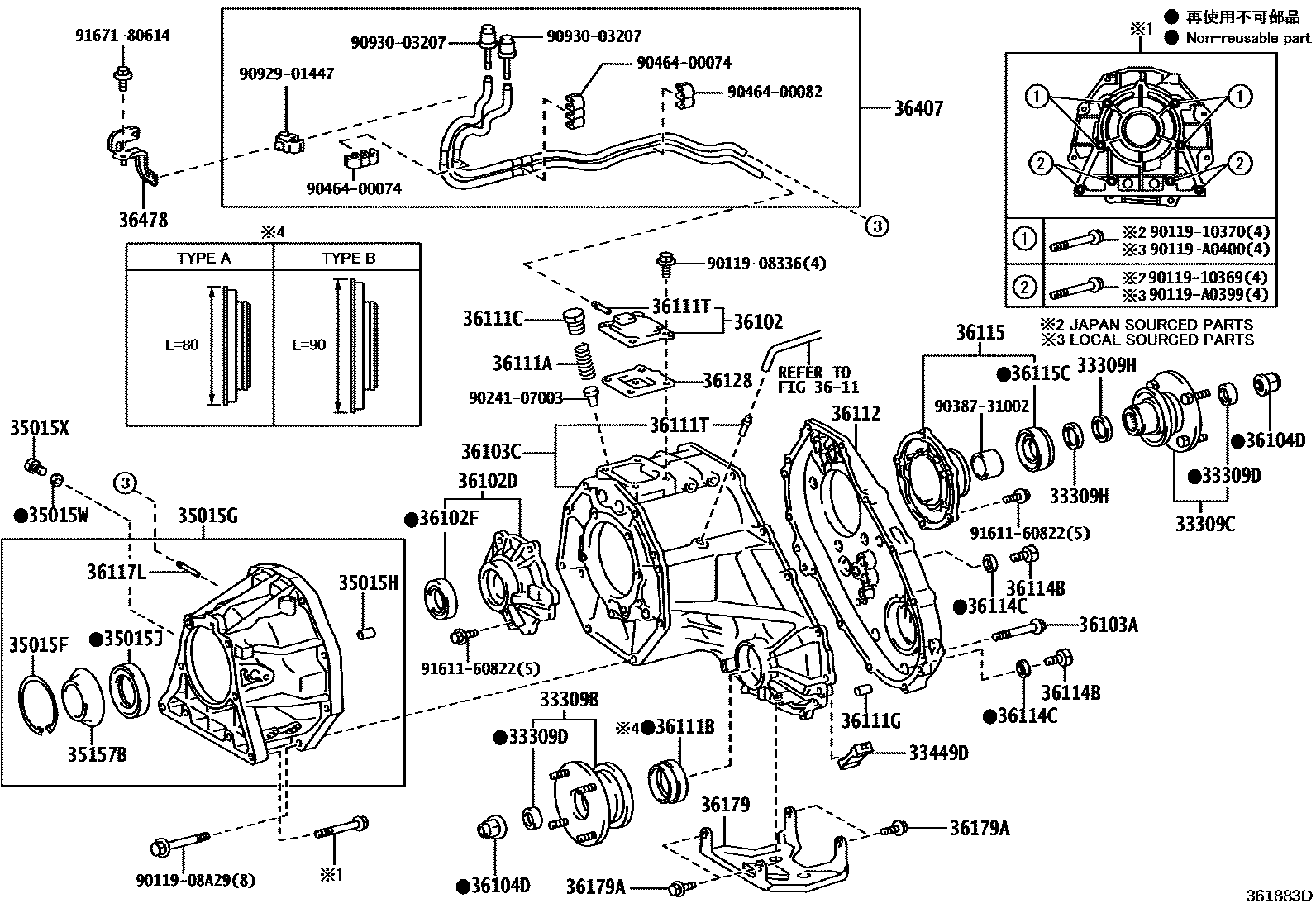

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35111iTRJ150..RHD;KDJ150..6F..GCC200908-201110

main33309-35112iGRJ150,KDJ150,LJ150,TRJ15#201411-201506

PNC 36111B=TYPE B

sub33309-35113

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35120iTRJ150..RHD;KDJ150..6F..GCC200908-201110

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001×2iTRJ150..RHD;KDJ150..6F..GCC200908-201110

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35030×2iTRJ150..RHD;KDJ150..6F..GCC200908-201110

N=31,OD=38

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-72001iGRJ150,KDJ150,TRJ15#..ATM201308-201506

35015GADAPTER, TRANSFER, REAR

main35015-0C010iGRJ150..5FC201308-201506

(L)

main35015-35080iTRJ15#..4FC201308-201506

main35015-35120iKDJ150..5FC201506

main35015-71030iGDJ150,GRJ150,TRJ15#..6FC201506

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003×2iGRJ150,KDJ150,TRJ15#..ATM200908-201308

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-43007iGRJ150,KDJ150,TRJ15#..ATM200908-201308

35015WRING, O(FOR TRANSMISSION CASE ADAPTER REFILL PLUG)

main90301-15004iGRJ150,KDJ150..5FC200908-201308

35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRJ150,KDJ150..5FC200908-201308

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-60010iGRJ150,KDJ150,TRJ15#..ATM200908-201308

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35060iGRJ150,KDJ150,LJ150,TRJ15#..4FC,5F,5FC201308-201506

main36102-35080iKDJ150..6F..GCC200908-201110

36102FSEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)

main90311-43008iTRJ150..RHD;KDJ150..6F..GCC200908-201110

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28×12iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201506

*8-1.25PX55-30

36103CCASE, TRANSFER, FRONT

main36103-35070iTRJ150..RHD;KDJ150..6F..GCC200908-201110

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016×2iTRJ150..RHD;KDJ150..6F..GCC200908-201110

3611

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iTRJ150..RHD;KDJ150..6F..GCC200908-201110

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41013iTRJ150..RHD;KDJ150..6F..GCC200908-201110

main90311-41017iGRJ150,KDJ150,LJ150,TRJ15#201411-201506

TYPE B:REFER ILLUST.

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iTRJ150..RHD;KDJ150..6F..GCC200908-201110

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iTRJ150..RHD;KDJ150..6F..GCC200908-201110

L=14,OD=10

36111TTUBE (FOR TRANSFER CASE)

main90441-05001×2iTRJ150..RHD;KDJ150..6F..GCC200908-201110

sub90406-T0007

36112CASE, TRANSFER, REAR

main36112-35090iTRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155200908-201308

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006×2iTRJ150..RHD;KDJ150..6F..GCC200908-201110

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008×2iTRJ150..RHD;KDJ150..6F..GCC200908-201110

36115HOUSING, TRANSFER EXTENSION

main36105-35050iTRJ150..RHD;KDJ150..6F..GCC200908-201110

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iTRJ150..RHD;KDJ150..6F..GCC200908-201110

sub90311-41020

36117ADAPTER, TRANSFER

main33102-60130iKDJ150..6F..GCC200908-201110

main33102-60140iGRJ150..6F201506

main36107-60050iLJ150201308-201506

main36107-60080iTRJ150..5F201506

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iTRJ150..RHD;KDJ150..6F..GCC200908-201110

sub90406-T0007

36128DEFLECTOR, BREATHER OIL

main36128-35060iTRJ150..RHD;KDJ150..6F..GCC200908-201110

36179PROTECTOR, TRANSFER CASE LOWER

main36179-60030iTRJ150..RHD;KDJ150..6F..GCC200908-201110

36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)

main91611-G0820×4iGRJ150,KDJ150,LJ150,TRJ15#201308-201506

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60220iGRJ150..6F201506

main36407-60230iGRJ150..5FC200908-201308

main36407-60240iKDJ150..6F..(ARL,GEN)200908-201308

main36407-60250iKDJ150..5FC201506

main36407-60260iTRJ150..LHD..5F200908-201308

main36407-60270iTRJ15#..4FC200908-201308

main36407-60280iLJ150201308-201506

main36407-60320iGRJ150..6FC201506

main36407-60330iTRJ15#..6FC201506

main36407-60340iGDJ150..6FC201506

main36407-60350iGDJ150,KDJ150..6F201506

36478BRACKET, TRANSFER BREATHER

main36478-60060iGRJ150..6F201506

main36478-60070iKDJ150..6F201308-201506

main36478-60080iKDJ150..5FC200908-201308

main36478-60110iLJ150200908-201308

main36478-60130iGRJ150..6FC201506

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910369

main90119-10369

9011910370

main90119-10370

90119A0399

main90119-A0399

90119A0400

main90119-A0400

9024107003

main90241-07003

9038731002

main90387-31002

9046400074

main90464-00074

9046400082

main90464-00082

9092901447

main90929-01447

9093003207

main90930-03207

9161160822

main91611-60822

9167180614

main91671-80614

50 parts on this diagram · 10 diagrams in section
