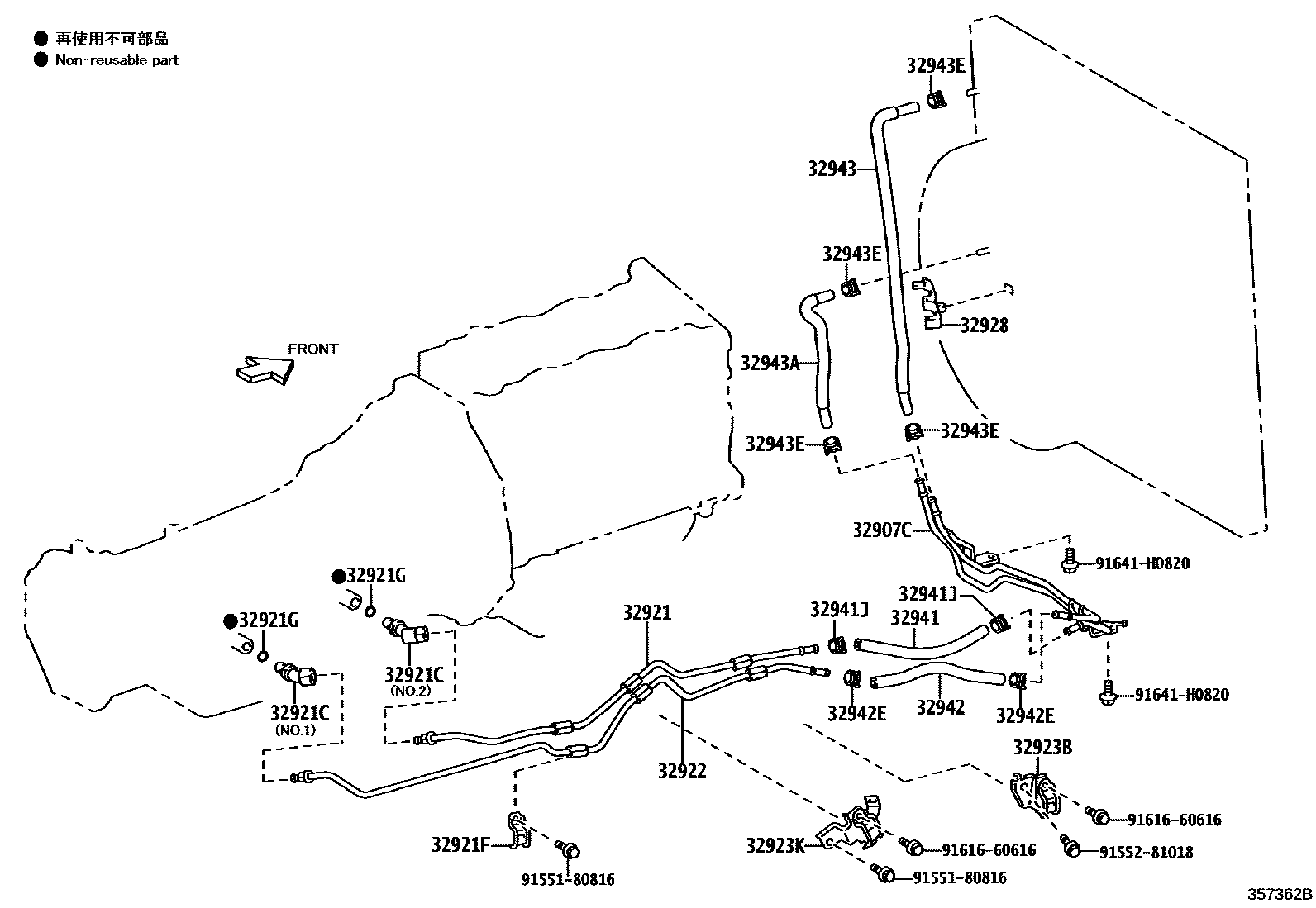

OIL COOLER & TUBE (ATM)
32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32921TUBE, OIL COOLER INLET, NO.1
32921CUNION(FOR OIL COOLER TUBE)
NO.1
NO.2
32921FCLAMP(FOR OIL COOLER TUBE)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32922TUBE, OIL COOLER OUTLET, NO.1
32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2
32928CLAMP, FLEXIBLE HOSE, NO.1
32941HOSE, OIL COOLER INLET, NO.1
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
ENGINE-FOR EURO 5 CONFORMITY
32942HOSE, OIL COOLER OUTLET, NO.1
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
ENGINE-FOR EURO 5 CONFORMITY
32943HOSE, TRANSMISSION OIL COOLER, NO.1
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
32943ECLIP, NO.3(FOR OIL COOLER HOSE)
ENGINE-FOR EURO 5 CONFORMITY
9155180816
main91551-80816
9155281018
main91552-81018
9161660616
main91616-60616
91641H0820
main91641-H0820
21 parts on this diagram · 8 diagrams in section
