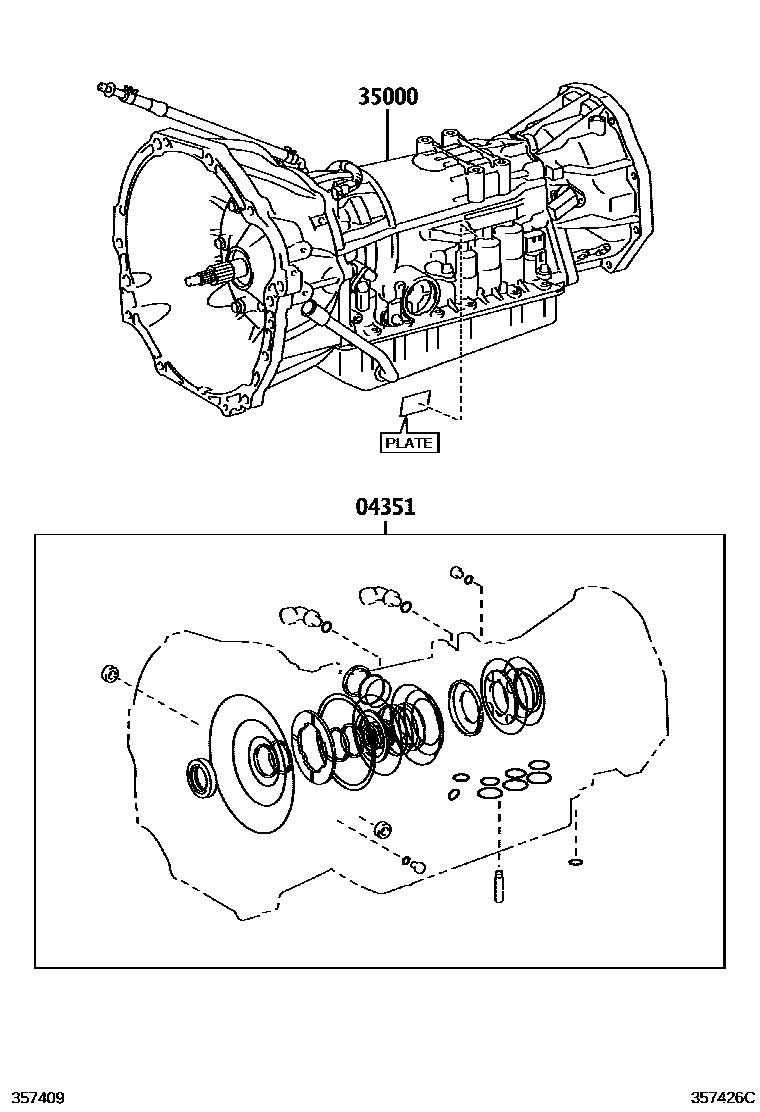

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A343F 0002 1A750F 0003 1AC60F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-60470iGRJ150,KDJ150..5FC¥17,800200908-201506

main04351-60550iTRJ15#..4FC¥25,600200908-201506

main04351-60600iTRJ15#..4FC201310-201311

sub04351-60550¥25,600

main04351-71230iGDJ150,GRJ150,TRJ15#..6FC¥16,100201506

35000TRANSMISSION ASSY, AUTOMATIC

main35000-0W090iGRJ150..5FC201205-201506

A750F,TYPE B:REFER ILLUST.

sub35000-0W140

main35000-60C20iGRJ150..5FC¥752,000200908-201105

A750F

main35000-60C40iKDJ150..5FC200908-201506

A750F

main35000-60C50iTRJ15#..4FC¥674,000200908-201308

A343F

main35000-60C50iTRJ15#..4FC¥674,000201308-201310

A343F,W(PLATE)

main35000-60D40iGRJ150..5FC201105-201111

A750F

main35000-60D50iTRJ15#..6FC¥552,000201506

AC60F

main35000-60E00iGRJ150..5FC201205-201506

A750F,TYPE A:REFER ILLUST.

main35000-60E00iGRJ150..5FC201111-201205

A750F

main35000-60E40iTRJ15#..4FC¥674,000201310-201506

A343F,W/O(PLATE)

main35000-60E60iGDJ150..6FC¥688,000201506

AC60F

main35000-60E70iGRJ150..6FC201506

AC60F

2 parts on this diagram · 3 diagrams in section
