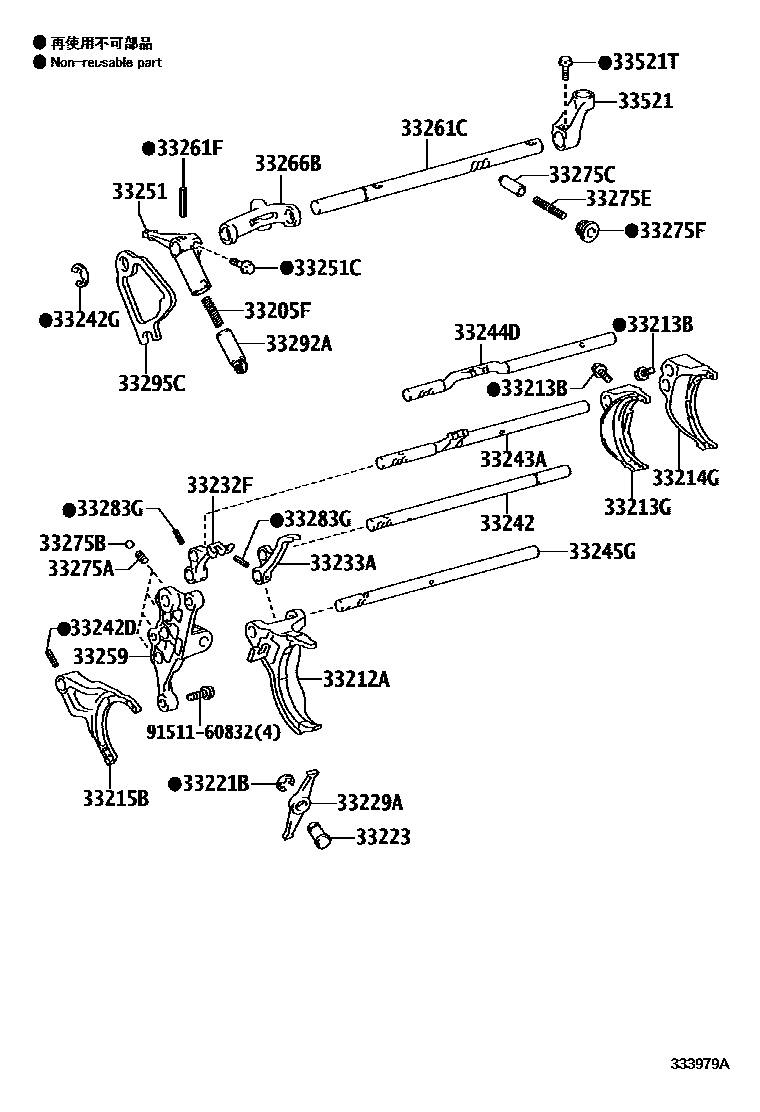

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33223PIVOT, SHIFT ARM
33229AARM, RELEASE, NO.1
33232FHEAD, GEAR SHIFT, NO.1
33233AHEAD, GEAR SHIFT, NO.2
33242SHAFT, GEAR SHIFT FORK, NO.1
33242DPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)
33242GRING, E (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244DSHAFT, GEAR SHIFT FORK, NO.3
33251LEVER, SHIFT & SELECT
33251CBOLT, SET (FOR SHIFT & SELECT LEVER)
33259BRACKET, SHIFT INTERLOCK
33261CSHAFT, SHIFT & SELECT LEVER
33261FPIN, STRAIGHT (FOR SHIFT & SELECT LEVER SHAFT)
33266BPIN, SHIFT INTERLOCK, NO.3
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
OD=18,TYPE B:REFER ILLUST.
OD=17,TYPE A:REFER ILLUST.
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=15.35
L=20.2,NO.1
L=31,NO.2
L=33.8
33275BBALL, SHAFT DETENT
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33283PIN, REVERSE RESTRICT, NO.1
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33292APIN, LOCK BALL
33295CCAM, SHIFT & SELECT
33521HOUSING, SHIFT LEVER
33521TBOLT (FOR SHIFT LEVER HOUSING)
9151160832
main91511-60832
37 parts on this diagram · 4 diagrams in section
