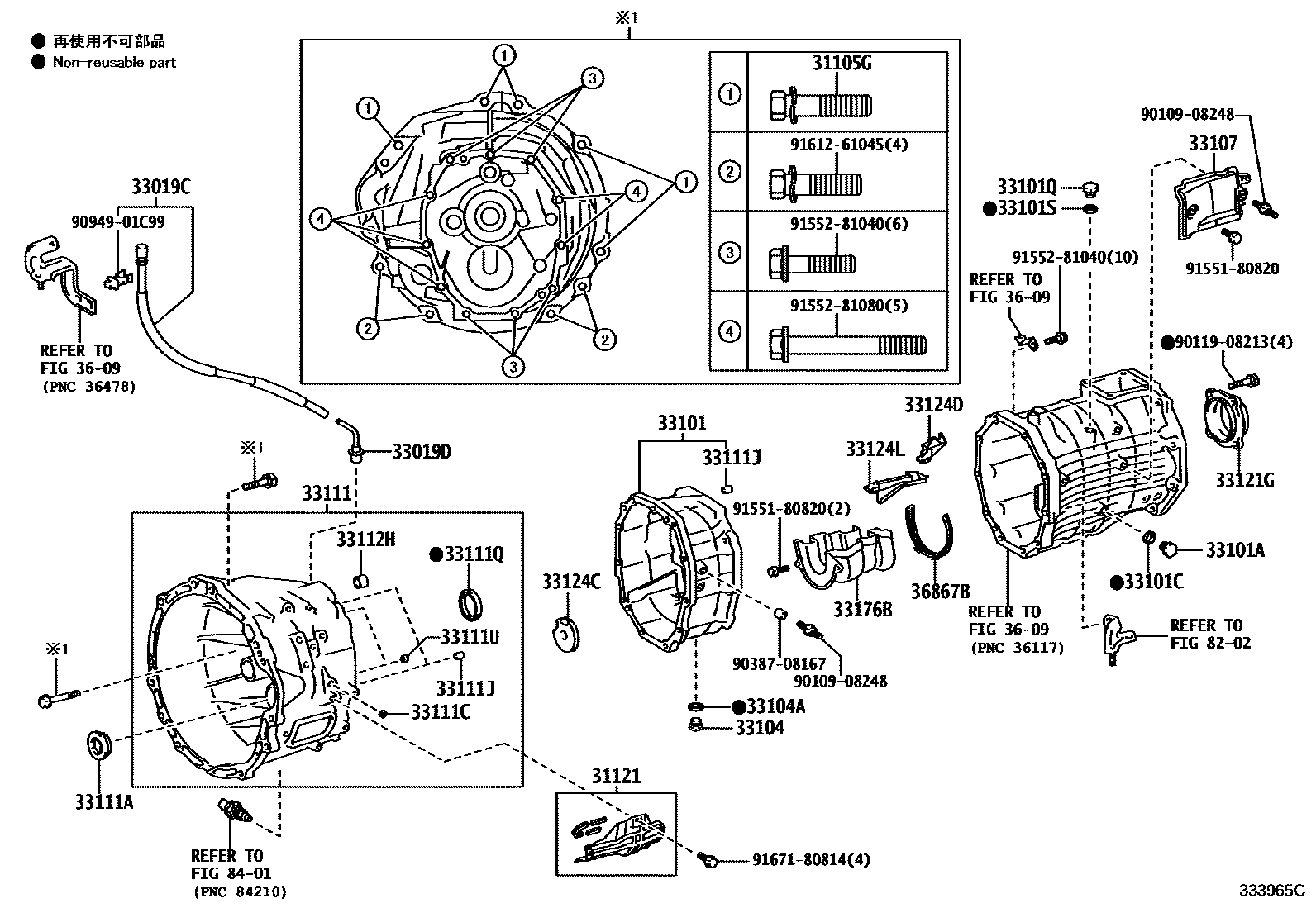

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1RA61F 0002 1RA61F 0003 1RA61F 0004 1G52F 0005 1R150F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91619-61250iGRJ150,KDJ150..6F200908-201506

*12-1.25PX50-30

31121COVER, CLUTCH HOUSING, NO.1

main31101-60020iGRJ150..6F200908-201506

33019CBREATHER SUB-ASSY, TRANSMISSION

main33019-60100iKDJ150..6F..GCC200908-201506

main33019-60110iGRJ150..6F200908-201506

main33019-60120iLJ150200908-201506

main33019-60130iTRJ150..5F200908-201506

33019D2 WAY(FOR TRANSMISSION BREATHER HOSE)

main90412-05008iGRJ150..6F;KDJ150..6F..(ARL,GEN)200908-201506

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33106-60010iKDJ150..6F..GCC200908-201506

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLJ150,TRJ150..5F200908-201506

main90341-18033iGRJ150..6F;KDJ150..6F..(ARL,GEN)200908-201506

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iTRJ150..RHD;KDJ150..6F..GCC200908-201506

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-18032iTRJ150..RHD;KDJ150..6F..GCC200908-201506

33101SGASKET(FOR TRANSMISSION CASE PLUG NO.1)

main90430-18008iTRJ150..RHD;KDJ150..6F..GCC200908-201506

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iTRJ150..5F200908-201506

main90341-18057iKDJ150..6F..GCC200908-201506

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iTRJ150..RHD;KDJ150..6F..GCC200908-201506

33107COVER SUB-ASSY, TRANSMISSION, UPPER

main33107-60020iGRJ150..6F;KDJ150..6F..(ARL,GEN)200908-201506

33111CASE, MANUAL TRANSMISSION

main33101-35051iLJ150200908-201501

sub33101-71020

main33101-60040iTRJ150..5F200908-201109

sub33101-60041

main33101-60041iTRJ150..RHD201109-201708

main33101-60150iKDJ150..6F..(ARL,GEN)200908-201708

main33101-60160iGRJ150..6F200908-201708

main33101-71020iLJ150201501-201708

33111APLUG, MANUAL TRANSMISSION CASE

main90341-42001iKDJ150..6F..GCC200908-201506

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iTRJ150..5F200908-201708

OD=14

main96411-41000iGDJ150,GRJ150,KDJ150..6F200908-201708

OD=10

main96411-41800iTRJ150..5F200908-201708

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10232iGRJ150..6F;KDJ150..6F..(ARL,GEN)200908-201708

L=15,OD=8

main90250-12002iTRJ150..LHD..5F200908-201708

L=16,OD=12

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34029iGRJ150,KDJ150..6F200908-201506

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11021iGDJ150,GRJ150,KDJ150..6F200908-201708

L=8,OD=11

main90253-15001iTRJ150..LHD..5F200908-201708

L=14,OD=15

33112HBEARING, TRANSMISSION CASE NEEDLE

main90364-18011iKDJ150..6F..GCC200908-201506

33121GCOVER, MANUAL TRANSMISSION CASE

main33121-35110iKDJ150..6F..GCC200908-201506

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-35130iKDJ150..6F..GCC200908-201506

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-35140iGRJ150..6F;KDJ150..6F..(ARL,GEN)200908-201506

33124LPIPE, OIL RECEIVER, N0.3(MTM)

main33124-35121iKDJ150..6F..GCC200908-201506

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-35030iKDJ150..6F..GCC200908-201506

3609

36867BSEAL, PACKING (FOR OIL SEPARATOR)

main36867-35010iKDJ150..6F..GCC200908-201506

8202

8401

9010908248

main90109-08248

9011908213

main90119-08213

9038708167

main90387-08167

9094901C99

main90949-01C99

9155180820

main91551-80820

9155281040

main91552-81040

9155281080

main91552-81080

9161261045

main91612-61045

9167180814

main91671-80814

37 parts on this diagram · 5 diagrams in section
