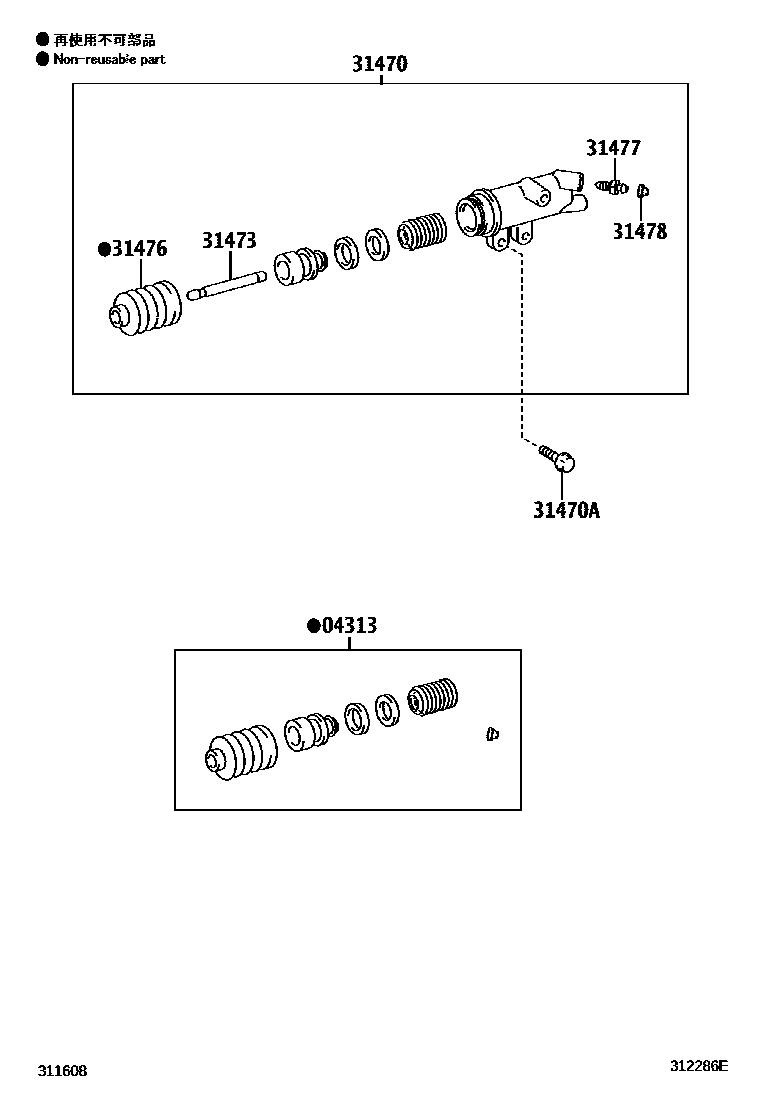

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-42010iLJ150200908-201506

main04313-53040iKDJ150..6F200908-201505

sub04313-53041

main04313-53041iKDJ150..6F201505-201506

main04313-60170iTRJ150..LHD..5F200908-201506

main04313-60180iGRJ150..6F200908-201009

sub04313-60182

main04313-60182iGRJ150..6F201009-201506

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35190iTRJ150..RHD200908-201111

sub31470-35191

main31470-35191iTRJ150..5F201111-201506

main31470-60320iLJ150200908-201506

main31470-60350iKDJ150..6F..(ARL,GEN)200908-201505

sub31470-60390

main31470-60360iGRJ150..6F200908-201009

sub31470-60361

main31470-60361iGRJ150..6F201009-201506

main31470-60390iKDJ150..6F201505-201506

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iTRJ150..RHD;KDJ150..6F..GCC200908-201506

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iLJ150200908-201506

main31473-22030iTRJ150..RHD200908-201506

main31473-60141iKDJ150..6F200908-201505

sub31473-60142

main31473-60160iGRJ150..6F200908-201506

main31473-60190iKDJ150..6F201505-201506

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iTRJ150..RHD;KDJ150..6F..GCC200908-201506

main31476-36010iGRJ150..6F200908-201506

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGDJ150,GRJ150,KDJ150,LJ150,TRJ150..MTM200908-201506

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iTRJ150..RHD;KDJ150..6F..GCC200908-201506

7 parts on this diagram · 4 diagrams in section
