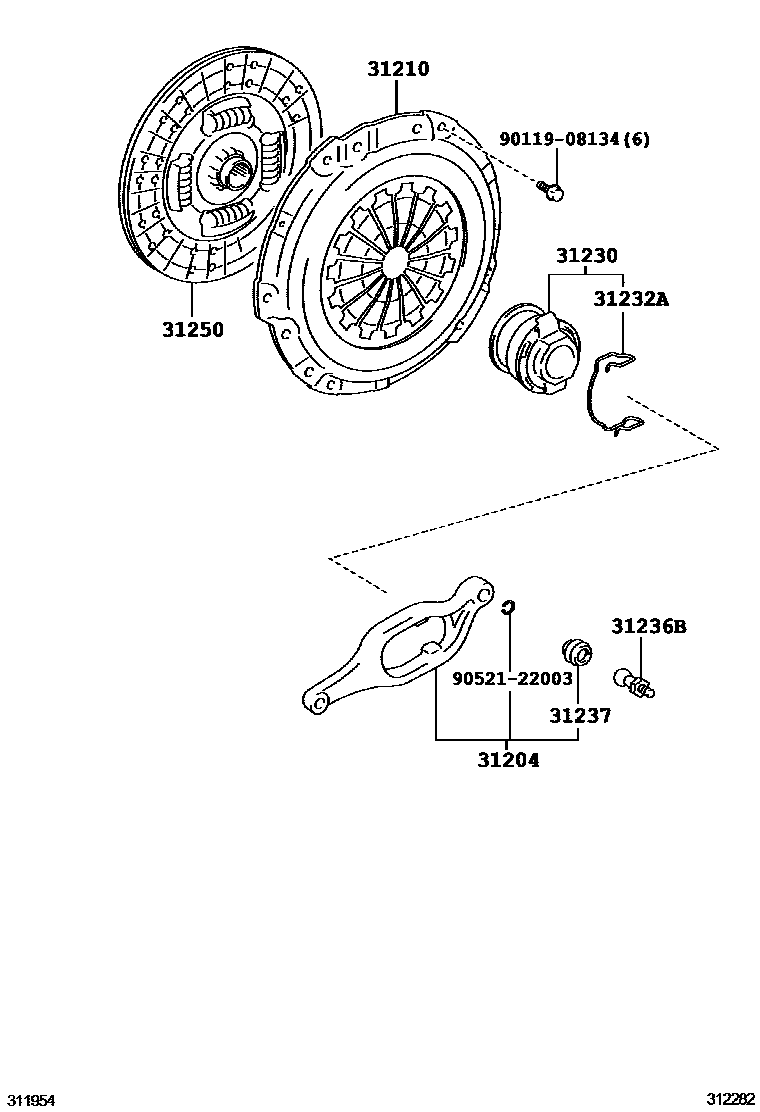

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031iTRJ150..RHD200908-201110

main31204-35050iLJ150201506

main31204-35060iGRJ150..6F200908-201308

main31204-60170iGDJ150,KDJ150..6F201506

31210COVER ASSY, CLUTCH

main31210-26164iLJ150201308-201506

main31210-26172iTRJ150..5F201308-201506

main31210-60280iGRJ150..6F201308-201506

main31210-60350iKDJ150..6F..GCC200908-201110

31230BEARING ASSY, CLUTCH RELEASE

main31230-35061iLJ150201308-201506

main31230-35071iTRJ150..LHD..5F200908-201308

main31230-60240iGRJ150..6F200908-201009

main31230-60241iGRJ150..6F201009-201308

main31230-60270iKDJ150..6F..(ARL,GEN)200908-201308

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLJ150;TRJ150..LHD..5F200908-201308

TYPE A:REFER ILLUST.

main31232-35030iLJ150,TRJ150..5F201308-201506

TYPE B:REFER ILLUST.

main31232-60050iGRJ150..6F200908-201308

main31232-60060iKDJ150..6F..GCC200908-201110

31236BSUPPORT, RELEASE FORK

main31236-20080iKDJ150..6F..(ARL,GEN)200908-201308

main31236-26010iLJ150201506

main31236-35030iTRJ150..5F201308-201506

main31236-35050iGRJ150..6F201506

main31236-60060iGRJ150..6F200908-201010

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-20010iKDJ150..6F201308-201506

main31237-60010iGRJ150..6F201308-201506

31250DISC ASSY, CLUTCH

main31250-26220iLJ150200908-201012

main31250-26221iLJ150201506-201708

sub31250-26222

main31250-35451iGRJ150..6F201308-201506

sub31250-35452

main31250-60382iGDJ150,KDJ150..6F201506-201708

sub31250-60383

main31250-60500iTRJ150..RHD200908-201110

sub31250-60501

9011908134

main90119-08134

9052122003

main90521-22003

9 parts on this diagram · 4 diagrams in section
