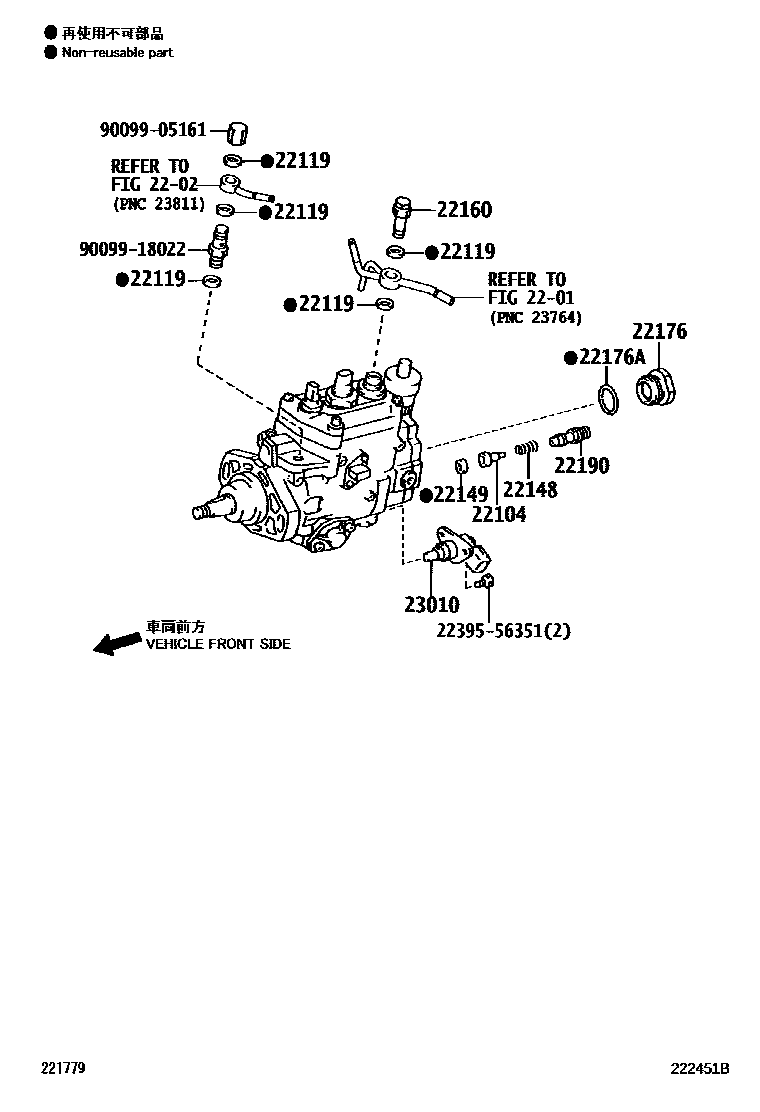

INJECTION PUMP BODY

2201

2202

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-6A640×4i5LE..LJ150200908-201308

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109×5i5LE..LJ150200908-201308

22148SPRING, DELIVERY VALVE

main22148-54010×4i5LE..LJ150200908-201308

22149GASKET, DELIVERY VALVE

main22149-56351×4i5LE..LJ150200908-201308

22160SCREW SUB-ASSY, OVERFLOW

main22160-54271i5LE..LJ150200908-201308

22176PLUG, DISTRIBUTIVE HEAD

main22176-54640i5LE..LJ150200908-201308

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i5LE..LJ150200908-201308

22190VALVE SUB-ASSY, SNUBBER

main22190-5D180×4i5LE..LJ150200908-201308

23010VALVE ASSY, TIMING CONTROL

main23010-67010i5LE..LJ150200908-201308

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

9009905161

main90099-05161

9009918022

main90099-18022

14 parts on this diagram · 1 diagram in section
