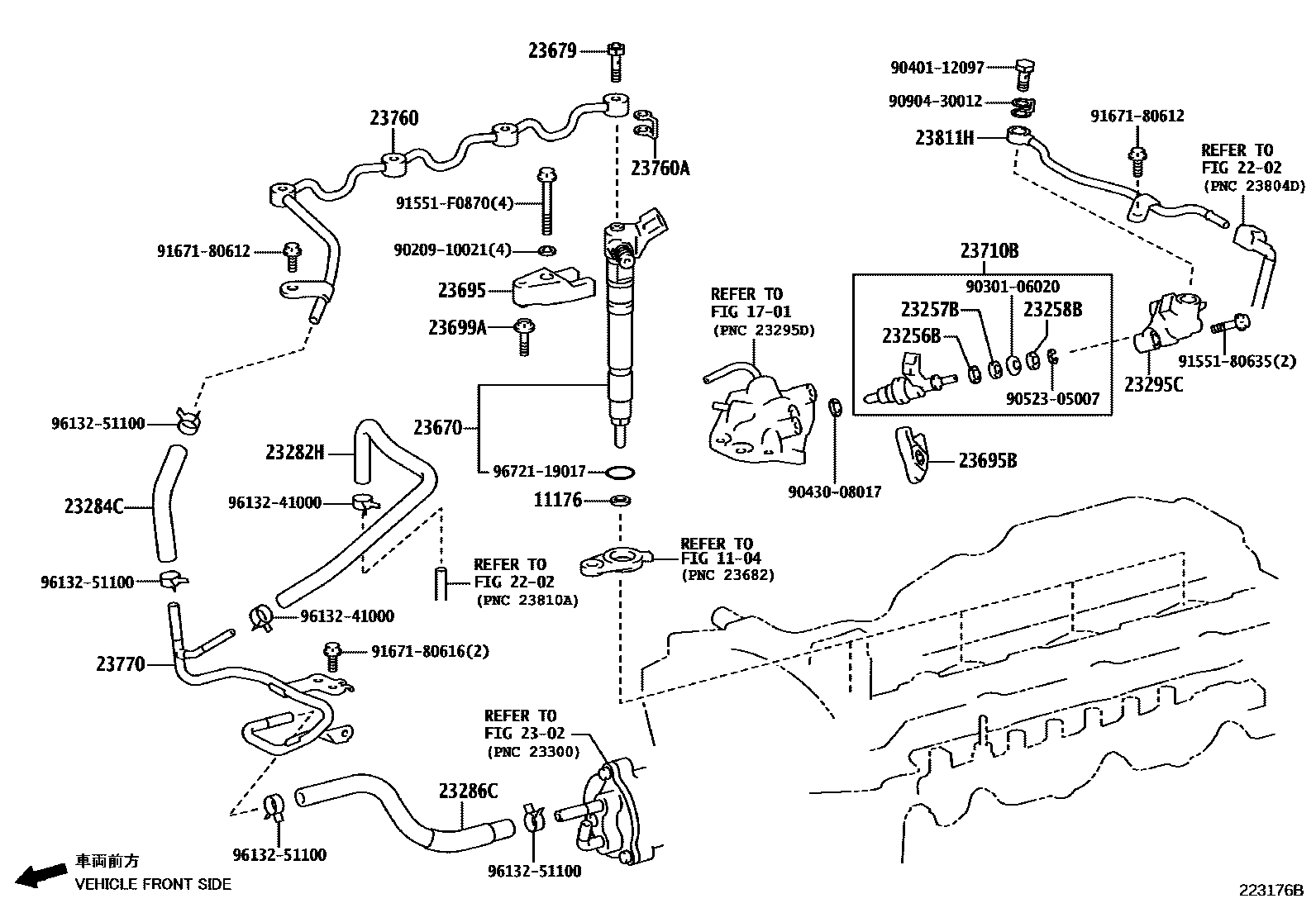

INJECTION NOZZLE

0001 1 0002 1 0003 1

1104

11176SEAT, INJECTION NOZZLE

main11176-05010i5LE..LJ150200908-201506

(L)

main11176-30011i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥240200908-201506

main11176-33010i1GDFTV..GDJ150¥300201506

main11176-64010i5LE..LJ150¥250201506-201708

main11176-64010i5LE..LJ150¥250200908-201506

(J)

1701

2202

2302

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i1GDFTV..GDJ150¥190201506

23257BRING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i1GDFTV..GDJ150¥190201506

23258BRING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011i1GDFTV..GDJ150¥210201506

23282HHOSE, FUEL, NO.4

main23282-0E010i1GDFTV..GDJ150¥970201506

23284CHOSE, FUEL, NO.5

main23284-11010i1GDFTV..GDJ150¥370201506

23286CHOSE, FUEL, NO.6

main23286-11010i1GDFTV..GDJ150¥930201506

23295CHOLDER, INJECTOR

main23296-11020i1GDFTV..GDJ150¥1,480201506

23670INJECTOR ASSY

main23670-19015i1GDFTV..GDJ150¥50,400201506

main23670-39365i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥66,500200908-201506

23679SCREW, INJECTOR FOLLOW

main23679-30020i1KDFTV..KDJ150¥0200908-201001

sub23679-30021

main23679-30021i1KDFTV..KDJ150..6F..GCC201001-201506

main90401-06002i1GDFTV..GDJ150¥90201507

(J)

main90401-06002i1GDFTV..GDJ150¥90201506-201507

main90401-T0007i1GDFTV..GDJ150201507

(L)

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0L010i1KDFTV..KDJ150¥950200908-201007

sub23695-30011¥950

main23695-11010i1GDFTV..GDJ150¥990201506

main23695-30011i1KDFTV..KDJ150¥950201007-201008

main23695-30020i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥1,020201008-201506

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-28010i1GDFTV..GDJ150¥550201506

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-11010i1GDFTV..GDJ150¥200201506

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-11010i1GDFTV..GDJ150¥26,900201506

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0E010i1GDFTV..GDJ150¥4,110201506

sub23760-0E011¥3,300

main23760-30020i1KDFTV..KDJ150¥3,380200908-201506

main23760-54030i5LE..LJ150¥2,460200908-201506

23760AGASKET

main90430-06013i1GDFTV..GDJ150¥60201506

main90904-30013i1KDFTV..KDJ150..6F..GCC¥300200908-201506

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0E010i1GDFTV..GDJ150¥3,240201506

sub23770-0E011¥2,460

sub23286-0E011

main23770-30080i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥5,800200908-201506

23811HPIPE, FUEL, NO.1

main23811-0E010i1GDFTV..GDJ150¥2,690201506

sub23811-08010¥2,070

9020910021

main90209-10021¥90

9030106020

main90301-06020¥170

9040112097

main90401-12097¥310

9043008017

main90430-08017¥90

9052305007

main90523-05007¥0

9090430012

main90904-30012¥360

9155180635

main91551-80635¥80

91551F0870

main91551-F0870¥100

9167180612

main91671-80612¥60

9167180616

main91671-80616¥60

9613241000

main96132-41000¥80

9613251100

main96132-51100¥120

9672119017

main96721-19017¥160
